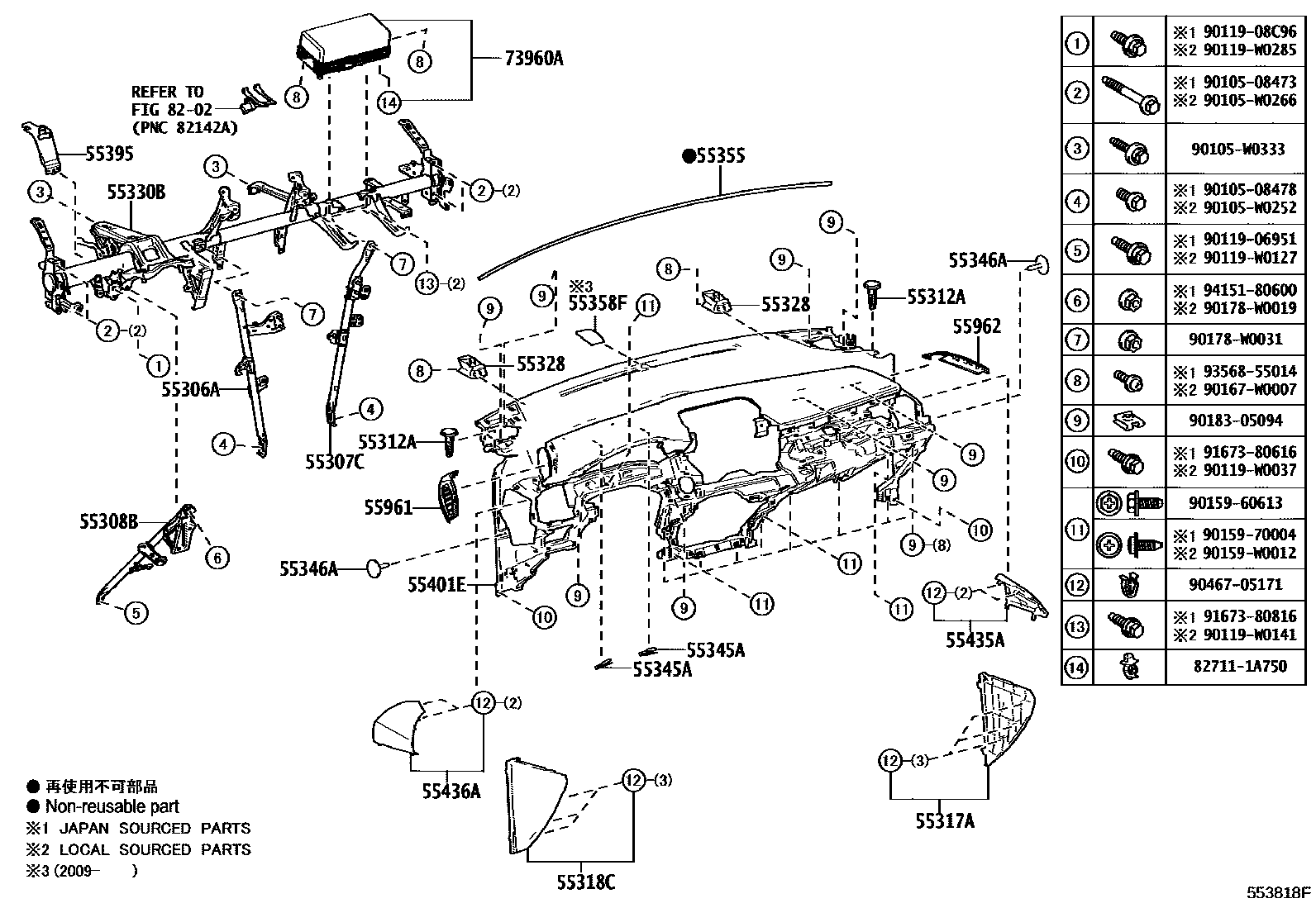

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-F4010iZGX10201702-202210

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-F4010iZGX10201702-202210

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-F4010iZGX10201702-201812

main55308-F4011iZGX10201812-202210

55312ACLIP, INSTRUMENT PANEL

main52161-02030iZGX10201702-202210

55317APANEL, INSTRUMENT SIDE, RH

main55317-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iZGX10..D201805-202210

BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,8#

sub55317-F4010

main55317-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,4#,8#

sub55317-F4010

55318CPANEL, INSTRUMENT SIDE, LH

main55318-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main55318-F4010-C1iZGX10201805-202210

BLACK,TRIM2#

main55318-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,8#

main55318-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4030iZGX10201702-202210

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4010iZGX10201702-202210

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iZGX10201702-202210

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C0iZGX10201702-202210

BLACK,(J)

sub90467-05161

main90467-05161-C9iZGX10201808-201909

BLACK,(J)

sub90467-05161

main90467-W0001-C0iZGX10201702-202210

BLACK,(L)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-F4010iZGX10201702-202210

55358FPROTECTOR, EDGE

main55358-F4010iZGX10202009-202210

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-F4010iZGX10201702-202210

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-F4020-C1iZGX10201702-201804

EU BLACK,TRIM2#

sub55401-F4021

main55401-F4090-C2iZGX10201805-201909

LICORICE,TRIM20

sub55401-F4090

main55401-F4090-C3iZGX10201805-201903

BLACK,TRIM20,21,22

sub55401-F4090

main55401-F4090-C4iZGX10..D,G201909-202210

BLACK,TRIM20,21

sub55401-F4090

main55401-F4090-C4iZGX10201903-201909

BLACK,TRIM20,21,22

sub55401-F4090

main55401-F4090-C4iZGX10..E201909-202210

BLACK,TRIM2#

sub55401-F4090

main55401-F4090-C5iZGX10..E201909-202210

BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4090

main55401-F4090-C6iZGX10..G201909-202210

BLACK/BLUE,TRIM8#

sub55401-F4090

main55401-F4090-C6iZGX10..G201909-202210

BLACK/BLUE,TRIM24,8#

sub55401-F4090

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

sub55435-F4010

main55435-F4010-C1iZGX10..D201909-202210

BLACK,TRIM2#,4#,8#

sub55435-F4010

main55435-F4010-C1iZGX10201805-202210

BLACK,TRIM2#

sub55435-F4010

main55435-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,8#

sub55435-F4010

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

sub55436-F4010

main55436-F4010-C1iZGX10..E201805-202210

BLACK,TRIM2#

sub55436-F4010

main55436-F4010-C1iZGX10..D201909-202210

BLACK,TRIM2#,8#

sub55436-F4010

main55436-F4010-C1iZGX10..D201909-202210

BLACK,TRIM2#,4#,8#

sub55436-F4010

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main55961-F4010-C1iZGX10..D201909-202210

BLACK,TRIM2#,8#

main55961-F4010-C1iZGX10201805-202210

BLACK,TRIM2#

main55961-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,4#,8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main55962-F4010-C1iZGX10201805-202210

BLACK,TRIM2#

main55962-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,8#

main55962-F4010-C1iZGX10..G201909-202210

BLACK,TRIM2#,4#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4020iZGX10201702-202106

sub73960-F4021

main73960-F4021iZGX10202107-202210

8202

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508473

main90105-08473

9010508478

main90105-08478

90105W0252

main90105-W0252

90105W0266

main90105-W0266

90105W0333

main90105-W0333

9011906951

main90119-06951

9011908C96

main90119-08C96

90119W0037

main90119-W0037

90119W0127

main90119-W0127

90119W0141

main90119-W0141

90119W0285

main90119-W0285

9015960613

main90159-60613

9015970004

main90159-70004

90159W0012

main90159-W0012

90167W0007

main90167-W0007

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

44 parts on this diagram · 4 diagrams in section
