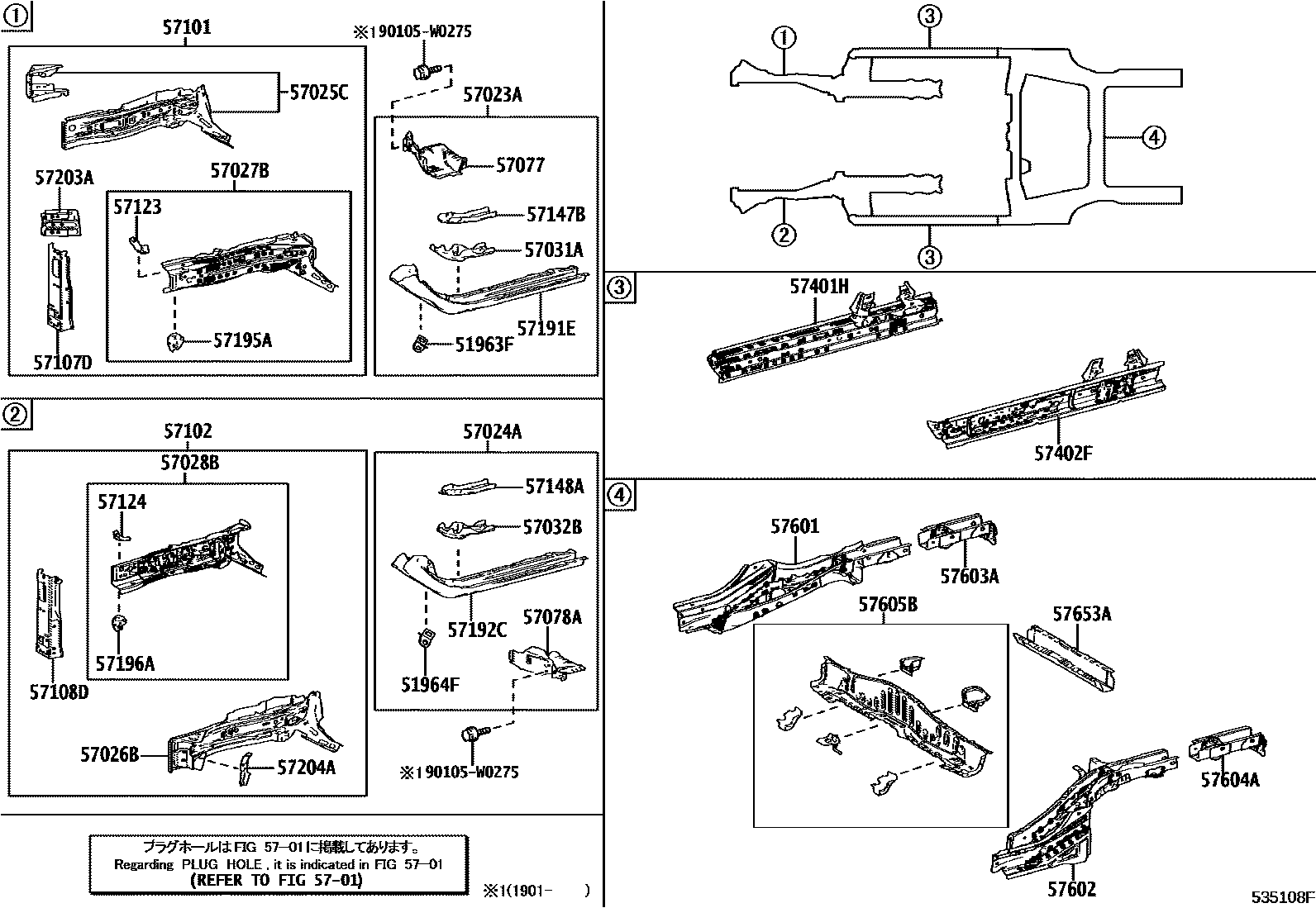

FLOOR SIDE MEMBER

51963FHOOK, TRANSPORT

main51093-F4011iZGX10201702-202210

51964FHOOK, TRANSPORT, LH

main51094-F4011iZGX10201702-202210

5701

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-F4010iZGX10201702-202008

sub57023-F4011

main57023-F4011iZGX10202008-202210

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-F4010iZGX10201702-202008

sub57024-F4011

main57024-F4011iZGX10202008-202210

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4010iZGX10201702-201812

sub57025-F4011

main57025-F4011iZGX10201901-202210

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4010iZGX10201702-201812

sub57026-F4011

main57026-F4011iZGX10201901-202210

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4010iZGX10201702-201708

sub57027-F4011

main57027-F4011iZGX10201709-202210

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4010iZGX10201702-202210

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-F4010iZGX10201702-202210

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-F4010iZGX10201702-202210

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4010iZGX10201702-202008

sub57077-F4011

main57077-F4011iZGX10202008-202210

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4010iZGX10201702-202008

main57078-F4011iZGX10202008-202210

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-F4900iZGX10201702-201709

sub57101-F4901

main57101-F4901iZGX10201709-201901

sub57101-F4903

main57101-F4903iZGX10201901-202210

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-F4900iZGX10201702-201901

sub57102-F4902

main57102-F4902iZGX10201901-202210

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-F4010iZGX10201702-202210

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-F4010iZGX10201702-202210

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-F4010iZGX10201702-202210

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-F4010iZGX10201702-202210

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-F4010iZGX10201702-202210

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-F4010iZGX10201702-202210

57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH

main57191-F4010iZGX10201702-202210

57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH

main57192-F4010iZGX10201702-202210

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-F4010iZGX10201702-202210

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-F4010iZGX10201702-202210

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4010iZGX10201702-201812

sub57203-F4011

main57203-F4011iZGX10201901-202210

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4010iZGX10201702-201812

sub57204-F4011

main57204-F4011iZGX10201901-202210

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-F4010iZGX10201702-201903

sub57401-F4011

main57401-F4011iZGX10201904-202206

main57401-F4012iZGX10202207-202210

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-F4010iZGX10201702-201903

sub57402-F4011

main57402-F4011iZGX10201904-202206

main57402-F4012iZGX10202207-202210

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-F4010iZGX10¥27,600201702-202210

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-F4010iZGX10¥27,600201702-202210

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-F4010iZGX10201702-202210

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-F4010iZGX10201702-202210

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-F4020iZGX10201702-201807

main57605-F4021iZGX10201808-202210

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4010iZGX10201702-202210

90105W0275

main90105-W0275

36 parts on this diagram · 1 diagram in section
