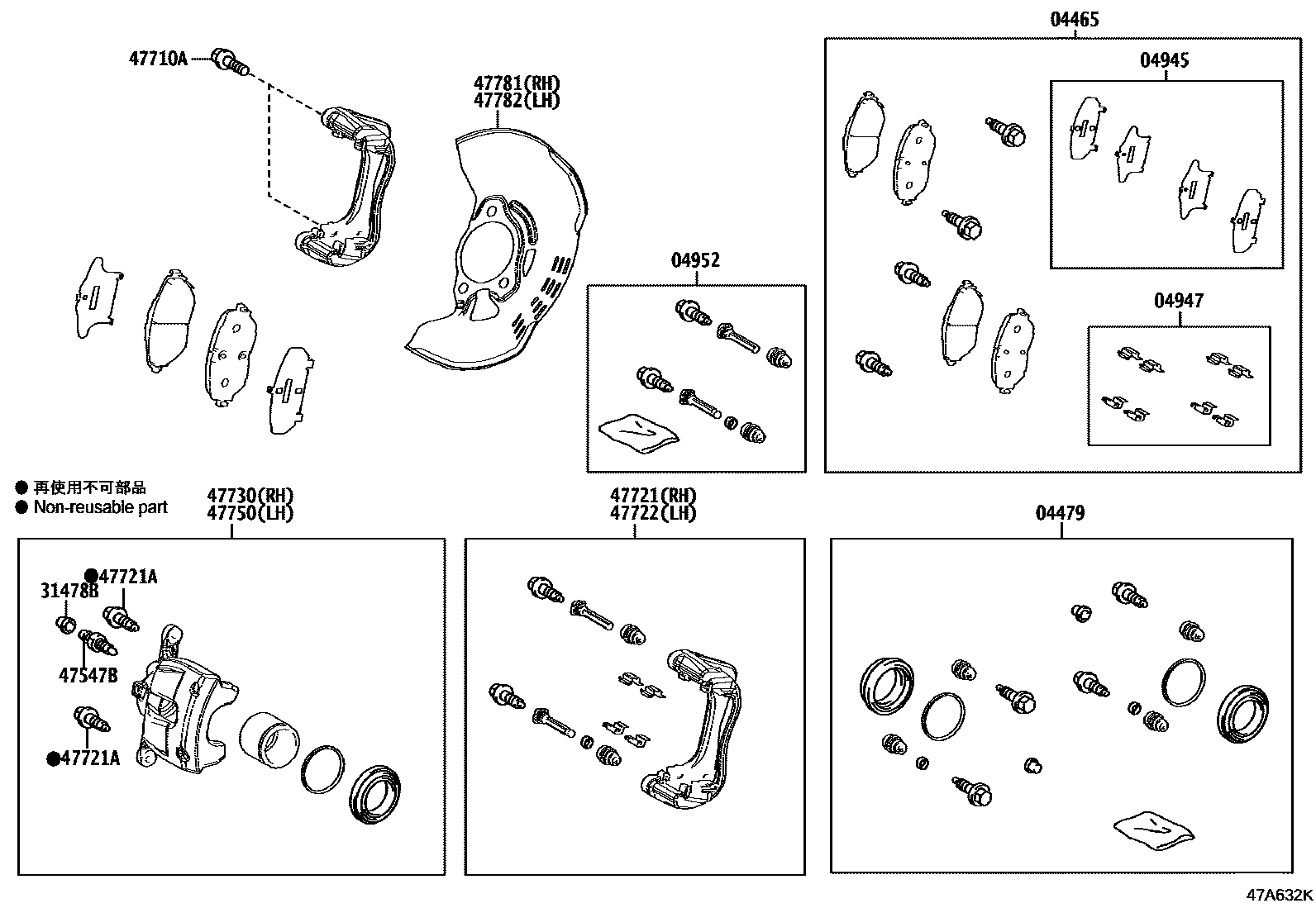

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-F4020iZGX10201909-202006

MARK NBK D6994H

sub04465-F4021

main04465-F4021iZGX10201702-202210

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-F4010iZGX10201702-202210

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-F4010iZGX10201909-202006

sub04945-F4020

main04945-F4020iZGX10201702-202210

sub04945-F4030

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iZGX10201702-202210

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02221iZGX10201702-202210

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39026iZGX10201702-202210

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39025iZGX10201702-202210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iZGX10201702-202210

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-F9010iZGX10201702-202210

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iZGX10201702-202210

sub47715-28060

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-F9010iZGX10201702-202210

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-F4020iZGX10201702-202210

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-F4020iZGX10201702-202210

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-F4010iZGX10201702-202210

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-F4010iZGX10201702-202210

15 parts on this diagram · 1 diagram in section
