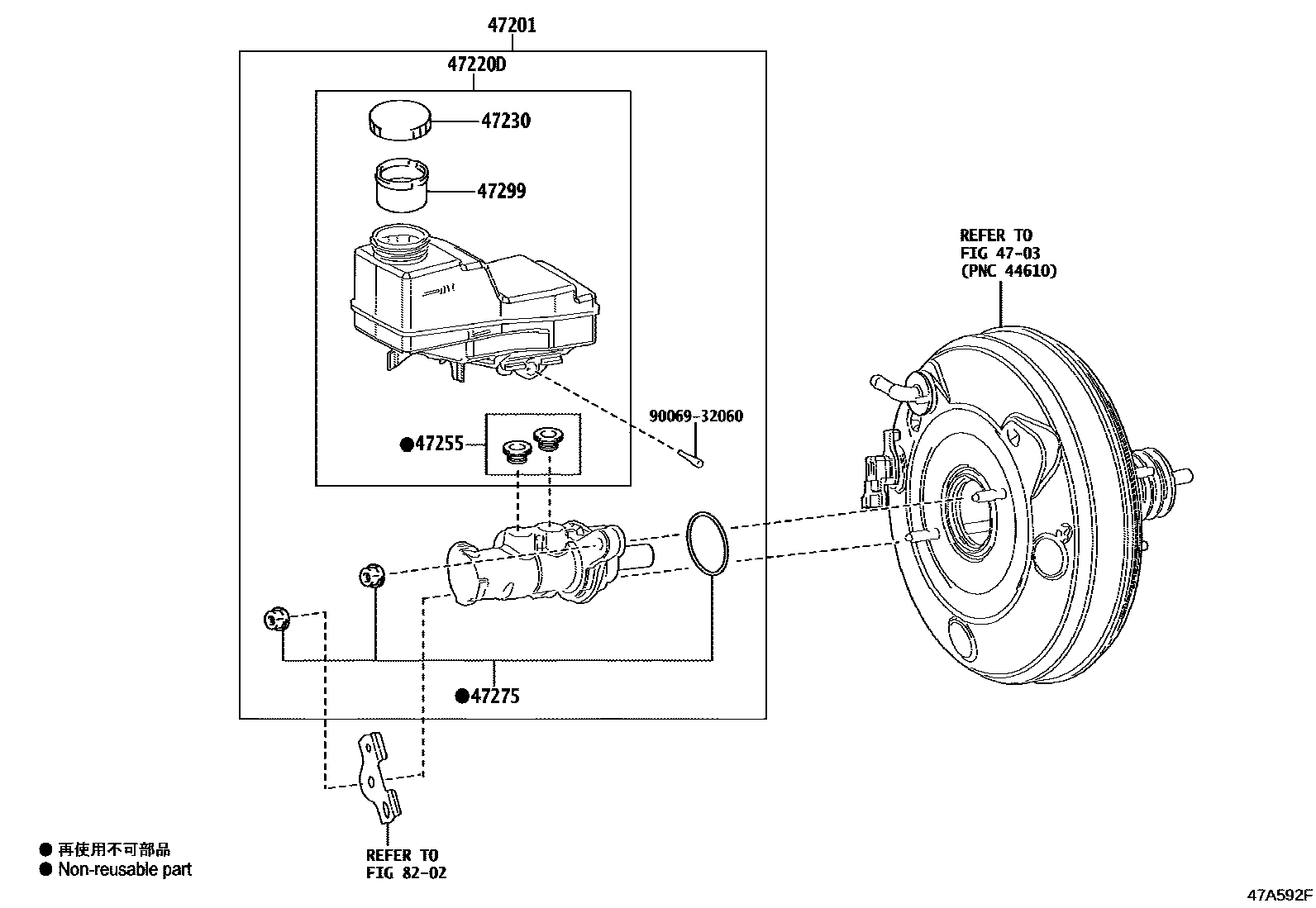

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-F9020iZGX10201702-202210

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-F9020iZGX10201702-202210

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-F4010iZGX10201702-202210

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZGX10201702-202210

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iZGX10201702-202210

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZGX10201702-202210

8202

9006932060

main90069-32060

9 parts on this diagram · 1 diagram in section
