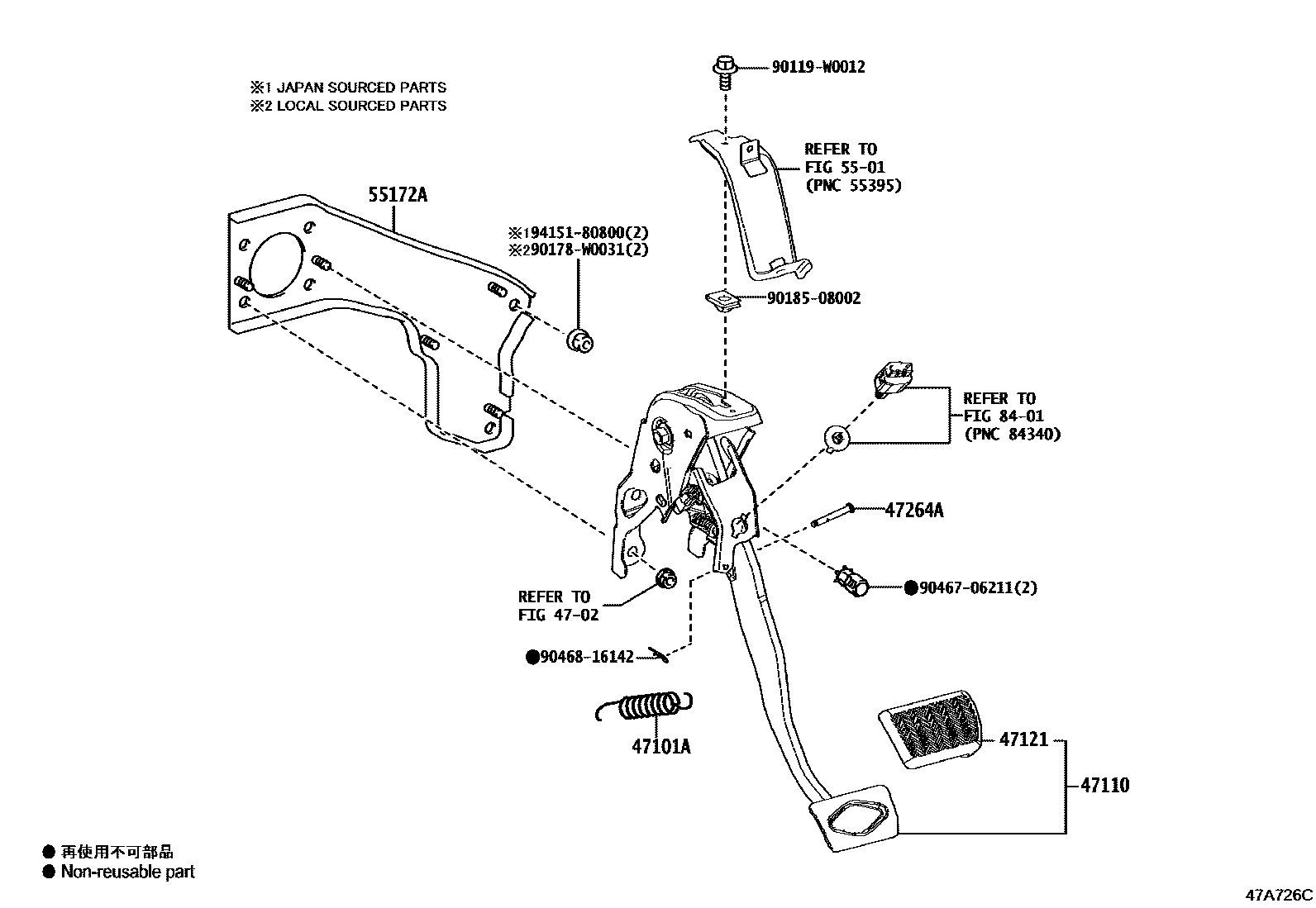

BRAKE PEDAL & BRACKET

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iZGX10201702-202210

47110SUPPORT ASSY, BRAKE PEDAL

main47110-F4010iZGX10201702-202210

47121PAD, BRAKE PEDAL

main47121-F4010iZGX10201702-202210

47264APIN(FOR PUSH ROD)

main90249-06187iZGX10201702-202210

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4010iZGX10201702-201910

main55172-F4011iZGX10201911-202210

8401

90119W0012

main90119-W0012

90178W0031

main90178-W0031

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
