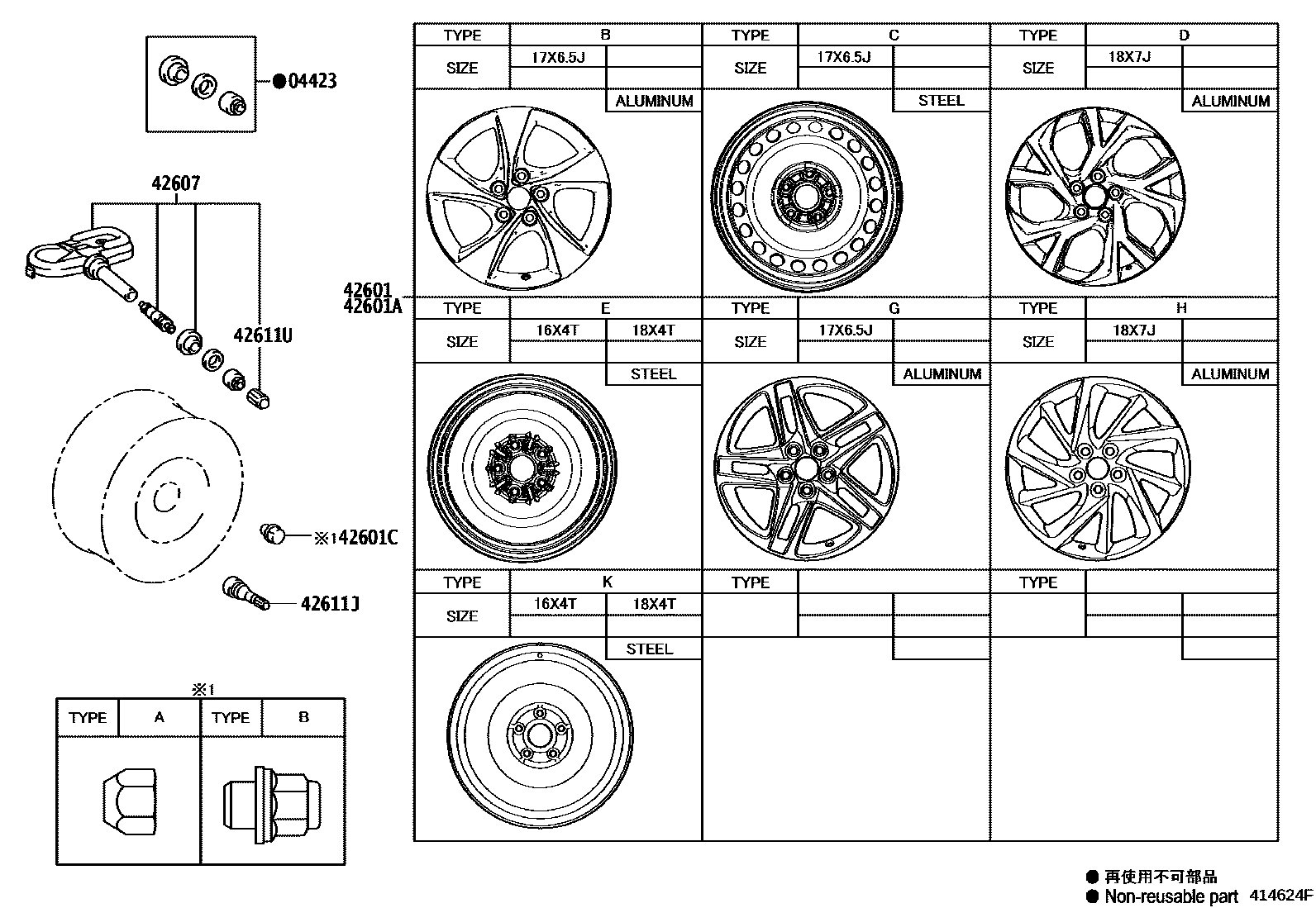

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
17X6.5J,#,TYPE C:REFER ILLUST.
18X7J, #,USA POSSESSION SPEC&TIRE & DISC WHEEL-225/50R18,ALUMINUM,ALL SEASON TIRE,TYPE D:REFER ILLUST.
18X7J, #,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES,TYPE E:REFER ILLUST.
16X4T,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE E:REFER ILLUST.
16X4T,TYPE E:REFER ILLUST.
16X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST.
16X4T,TYPE K:REFER ILLUST.
16X4T,PUERTO RICO SPEC,TYPE K:REFER ILLUST.
16X4T,TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES,TYPE K:REFER ILLUST.
16X4T,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE K:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ALL SEASON TIRE,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES
42611UCAP, TIRE VALVE
7 parts on this diagram · 2 diagrams in section
