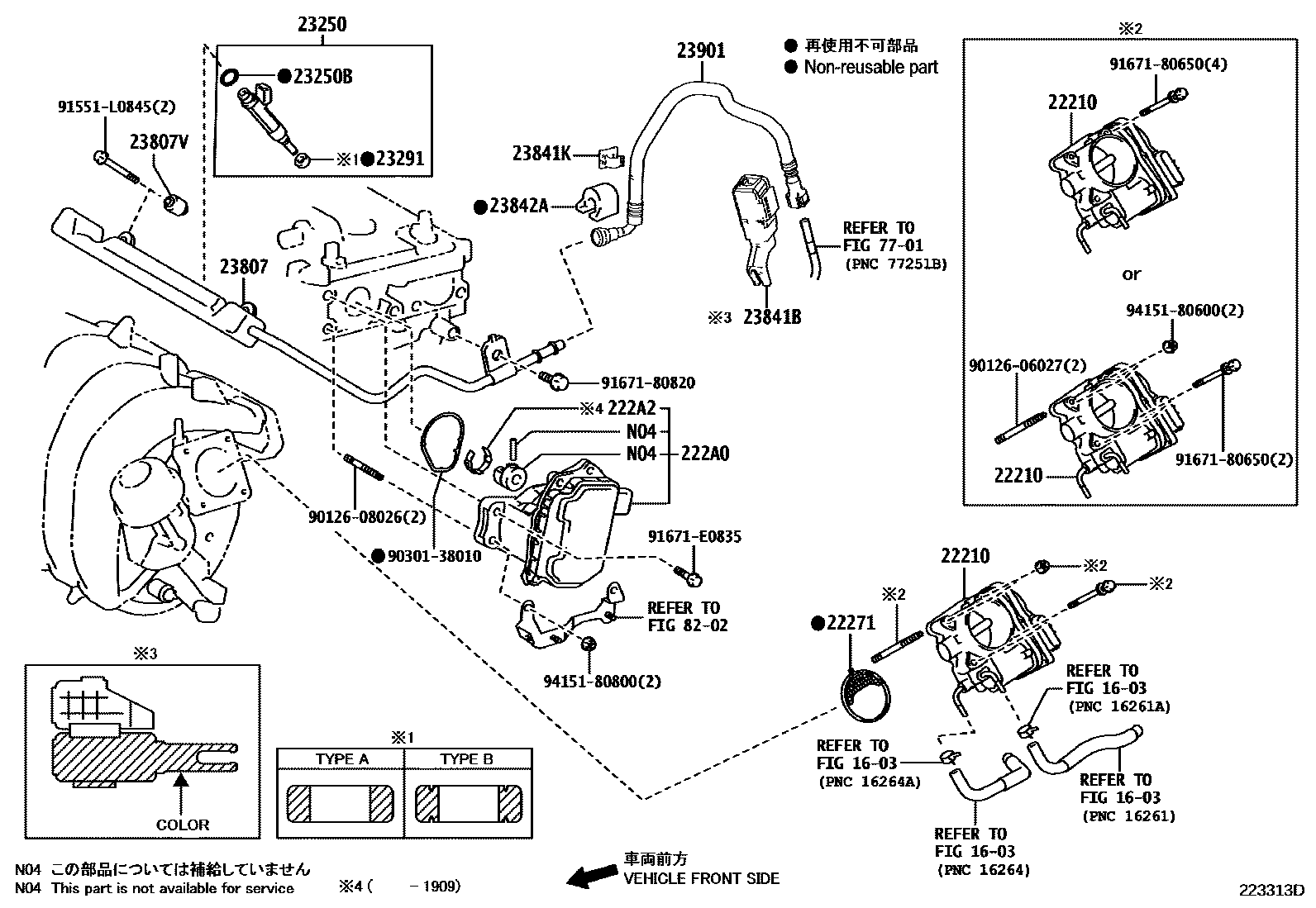

FUEL INJECTION SYSTEM

1603

22210BODY ASSY, THROTTLE

main22030-37040i3ZRFAE..ZGX10201702-202210

22271GASKET, THROTTLE BODY

main22271-75031i3ZRFAE..ZGX10201702-202210

222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT

main222A0-37022i3ZRFAE..ZGX10201702-201708

sub222A0-37023

main222A0-37023i3ZRFAE..ZGX10201709-201811

sub222A0-37024

main222A0-37024i3ZRFAE..ZGX10201812-202001

sub222A0-37025

main222A0-37025i3ZRFAE..ZGX10202002-202210

222A2CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR

main222A2-37011i3ZRFAE..ZGX10201702-201909

23250INJECTOR ASSY, FUEL

main23209-39235i3ZRFAE..ZGX10201702-201909

main23209-39235i3ZRFAE..ZGX10201909-202210

MARK 23250-37040

main23209-39375i3ZRFAE..ZGX10201909-202210

MARK 23250-37110

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i3ZRFAE..ZGX10201702-202210

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i3ZRFAE..ZGX10201702-202210

TYPE A:REFER ILLUST.

main23291-28020i3ZRFAE..ZGX10201702-202210

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i3ZRFAE..ZGX10201702-202210

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i3ZRFAE..ZGX10201702-202210

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37081i3ZRFAE..ZGX10201702-202210

23841KCLAMP, FUEL PIPE

main23841-0Y070i3ZRFAE..ZGX10201702-202210

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i3ZRFAE..ZGX10201702-202210

23901TUBE SUB-ASSY, FUEL

main23901-0T210i3ZRFAE..ZGX10201702-202210

7701

8202

9012606027

main90126-06027

9012608026

main90126-08026

9030138010

main90301-38010

91551L0845

main91551-L0845

9167180650

main91671-80650

9167180820

main91671-80820

91671E0835

main91671-E0835

9415180600

main94151-80600

9415180800

main94151-80800

25 parts on this diagram · 1 diagram in section
