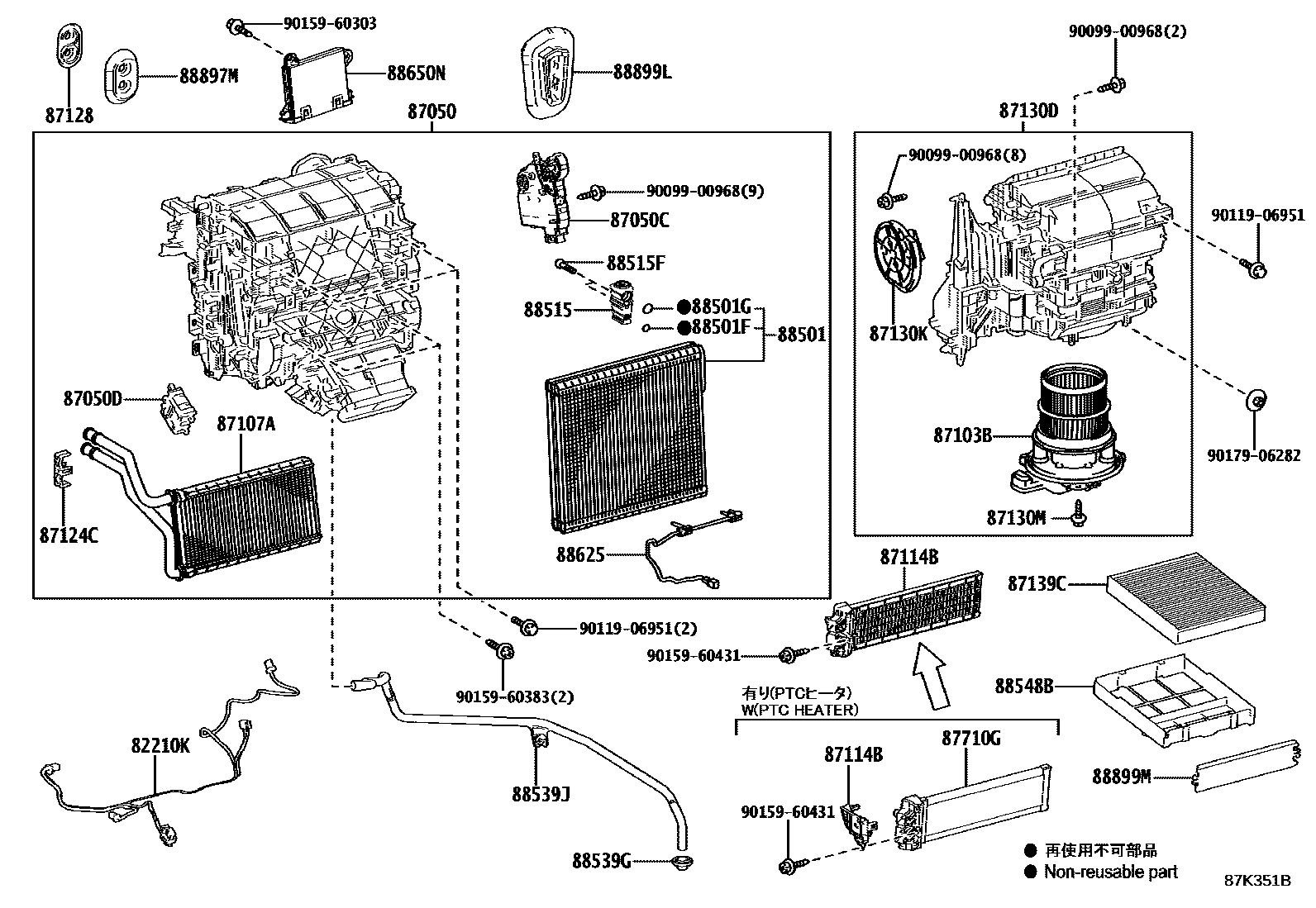

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
KOREA SPEC
KOREA SPEC
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
COLD AREA SPEC-COLD AREA SPEC
COLD AREA SPEC
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
DEODORANT FILTER,OE PART
DEODORANT FILTER
87710GQUICK HEATER ASSY
COLD AREA SPEC
COLD AREA SPEC-COLD AREA SPEC
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
KOREA SPEC
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
KOREA SPEC
KOREA SPEC
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
sub88650-78381
FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
9009900968
main90099-00968
9011906951
main90119-06951
9015960303
main90159-60303
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
33 parts on this diagram · 1 diagram in section
