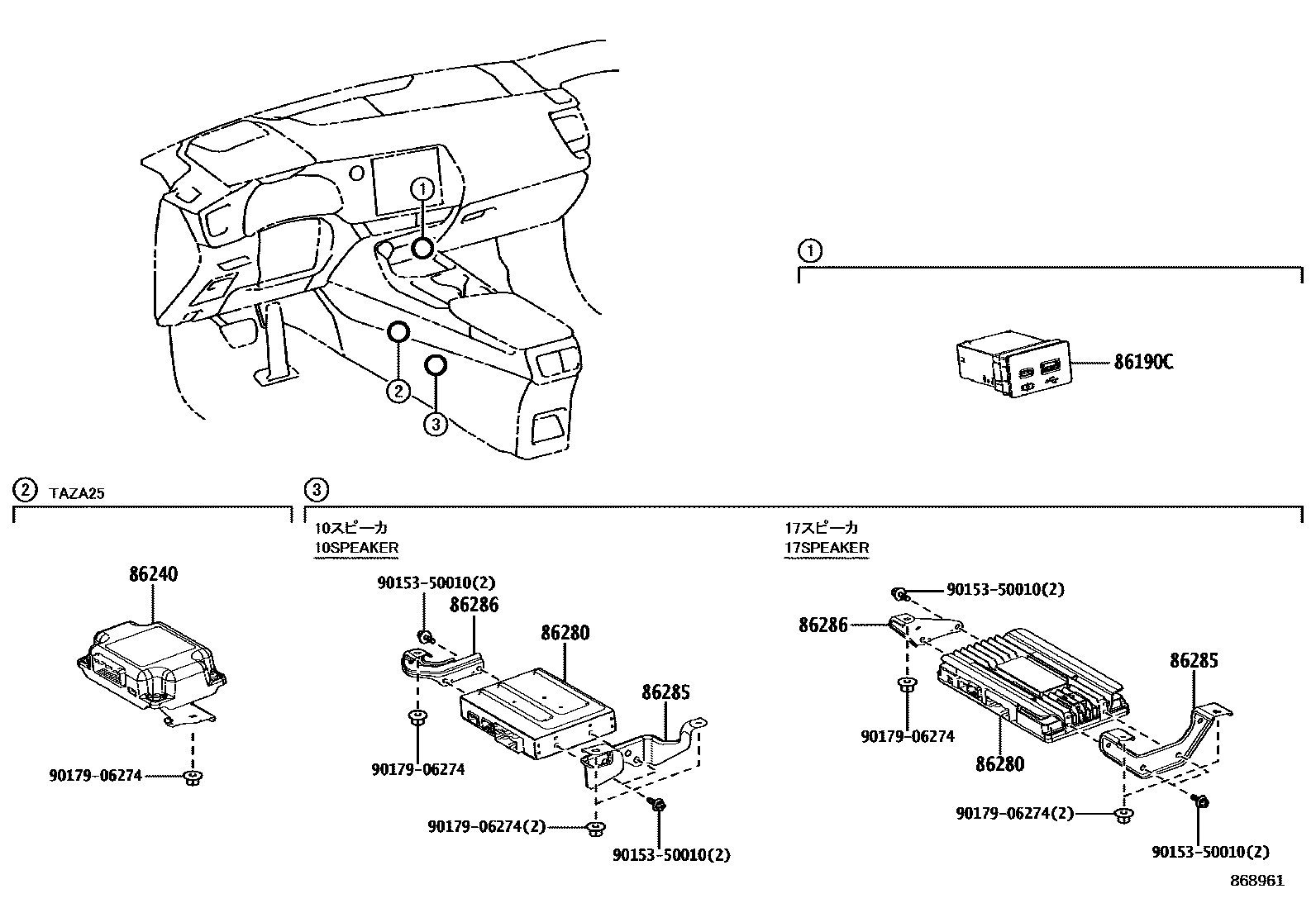

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48110iAAZA2#202309-202506

main86190-78020iAAZA2#,AAZH2#,TAZA25202111-202308

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-78100iTAZA25202111-202403

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-78080iAAZA2#202111-202506

main86280-78090iAAZH25,TAZA25202404

AUDIO-*EMV & 10SPEAKER

main86280-78090iAAZH26202111-202403

AUDIO-EMVN & 10SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-78050iAAZA2#202111-202506

86286BRACKET, AMPLIFIER, NO.2

main86286-78040iAAZA2#,AAZH2#,TAZA25202111-202506

9015350010

main90153-50010

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section
