HEV INVERTER

0001 1 0002 1 0003 1 0004 1

3901

8202

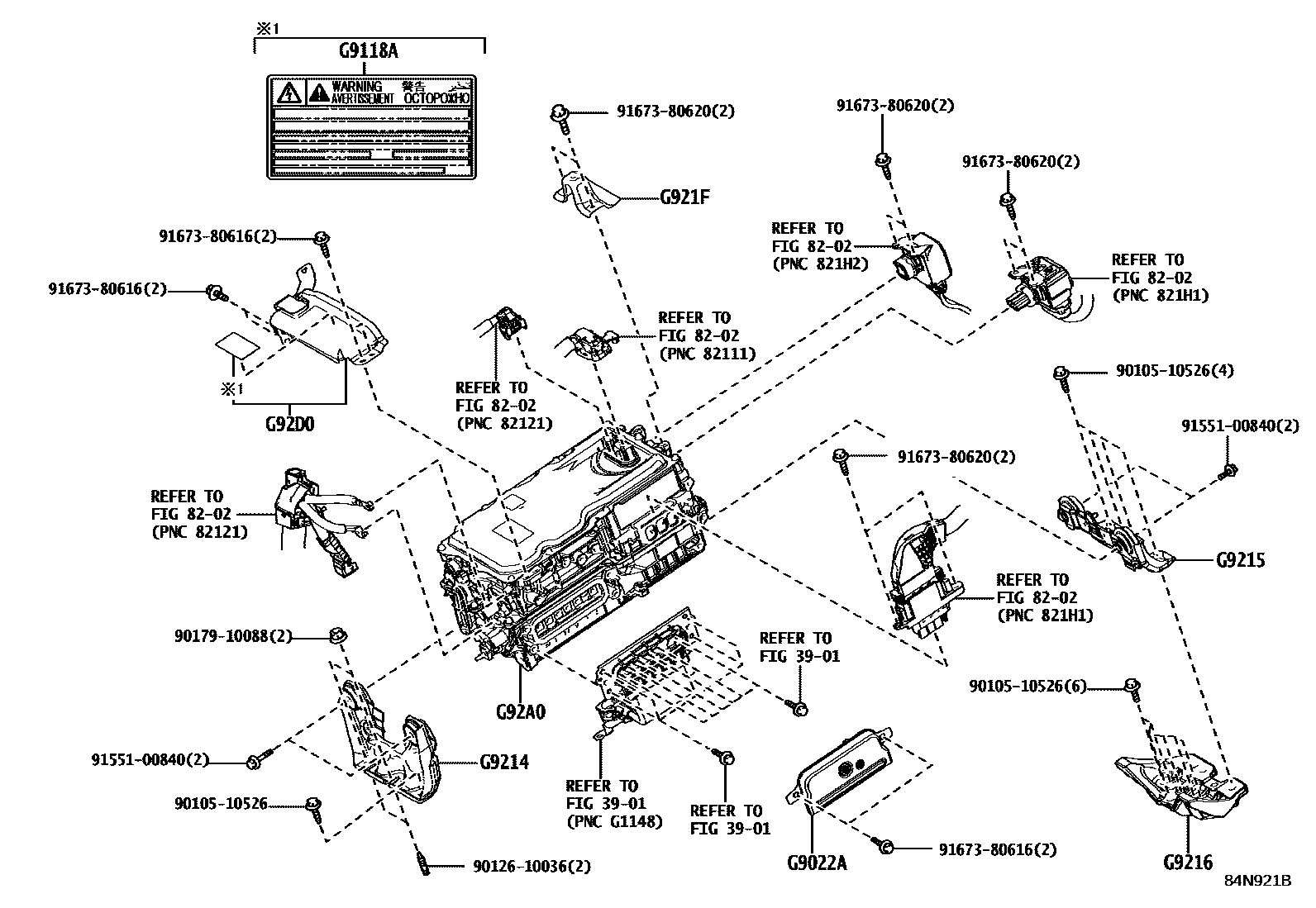

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAAZH2#202111-202403

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAAZH2#202111-202403

G9214BRACKET, INVERTER, NO.1

mainG921442010iAAZH26202111-202403

mainG921448070iAAZH25202111-202403

G9215BRACKET, INVERTER, NO.2

mainG921542010iAAZH25202111-202403

mainG921542020iAAZH26202111-202403

G9216BRACKET, INVERTER, NO.3

mainG921642020iAAZH26202111-202403

mainG921678020iAAZH25202111-202403

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAAZH2#202111-202403

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A042111iAAZH26202111-202206

mainG92A042112iAAZH26202207-202308

subG92A0-42113

mainG92A042113iAAZH26202309-202506

mainG92A078090iAAZH25202111-202206

subG92A0-78091

mainG92A078091iAAZH25202207-202308

subG92A0-78092

mainG92A078092iAAZH25202309-202506

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D042010iAAZH2#202111-202403

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

16 parts on this diagram · 4 diagrams in section
