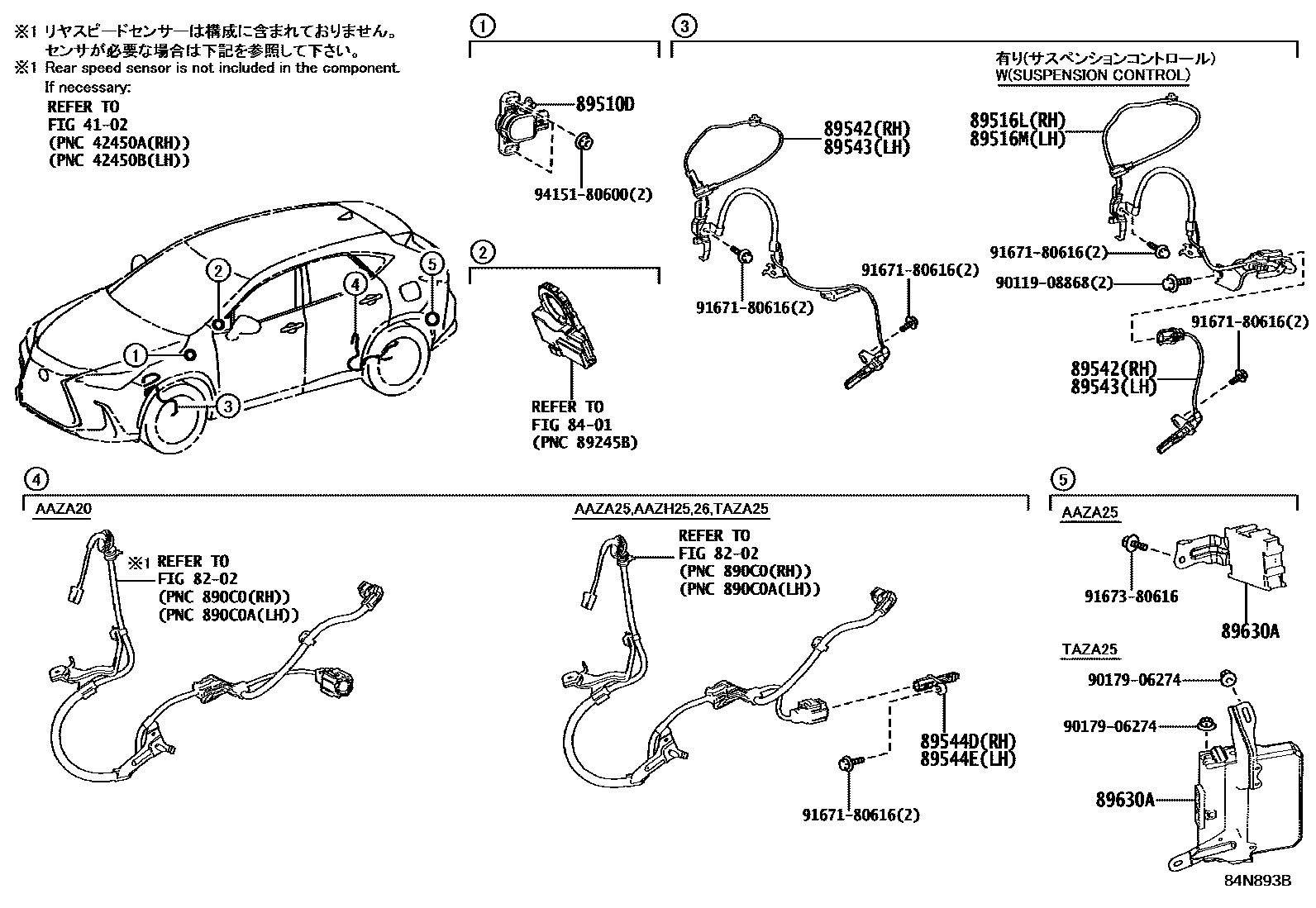

ABS & VSC
4102
8202
8401
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH
"F SPORT"*(F)
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC), W(PROTECTOR)
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
"F SPORT"*(F)
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC), W(PROTECTOR)
89542SENSOR, SPEED, FRONT RH
PREMIUM PACKAGE,*614
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK),*614
"VERSION L"*(L),*614
*614
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),*614
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC), W(PROTECTOR),*614
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),*614
*614
"F SPORT"*(F),*614
89543SENSOR, SPEED, FRONT LH
*614
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK),*614
"VERSION L"*(L),*614
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),*614
PREMIUM PACKAGE,*614
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),*614
*614
"F SPORT"*(F),*614
KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC), W(PROTECTOR),*614
89544DSENSOR, SKID CONTROL, REAR RH
89544ESENSOR, SKID CONTROL, REAR LH
89630ACOMPUTER ASSY, 4WD
9011908868
main90119-08868
9017906274
main90179-06274
9167180616
main91671-80616
9167380616
main91673-80616
9415180600
main94151-80600
16 parts on this diagram · 2 diagrams in section
