BATTERY CARRIER

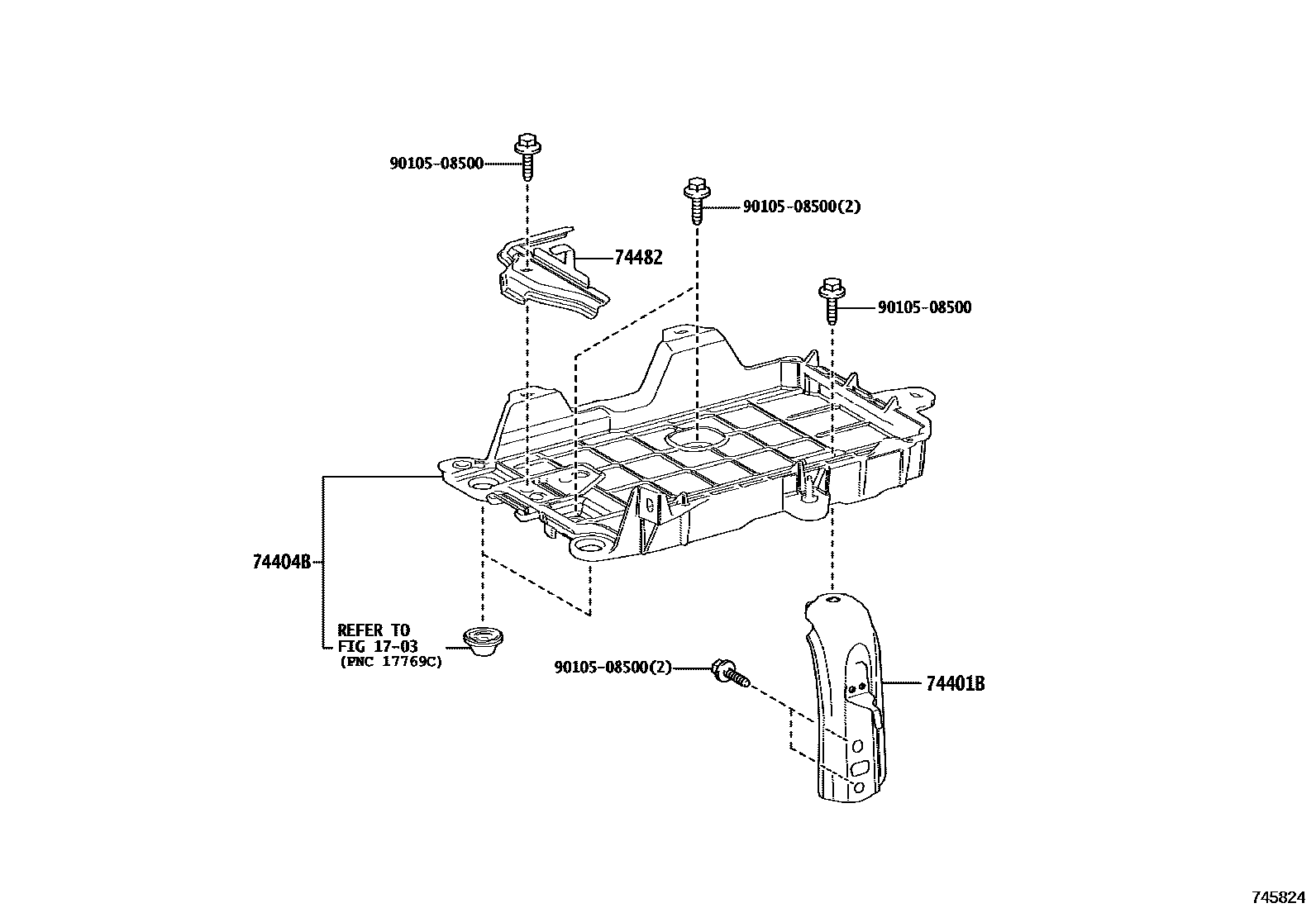

Parts diagram

1703

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-33010i¥1,340202111-202506

74404BCLAMP SUB-ASSY, BATTERY

main74404-33160i¥4,720202111-202506

74482CLAMP, BATTERY, NO.2

main74482-33020i¥820202111-202506

9010508500

main90105-08500¥100

5 parts on this diagram · 2 diagrams in section
