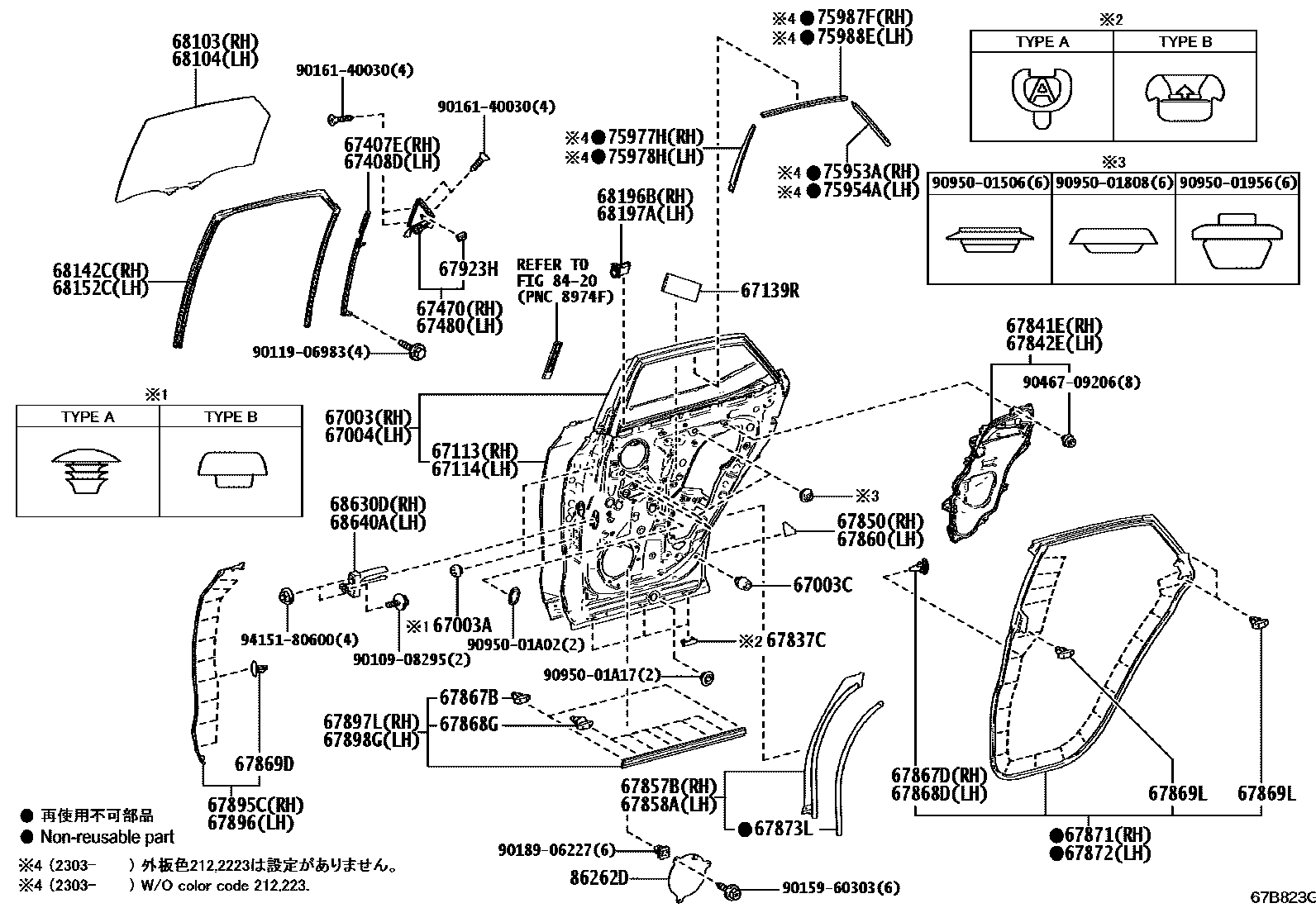

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003APLUG, HOLE(FOR REAR DOOR PANEL)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67470SEAL ASSY, REAR DOOR REAR GUIDE, RH
67480SEAL ASSY, REAR DOOR REAR GUIDE, LH
67837CSEAL, REAR DOOR DUST PROOF
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67850PROTECTOR ASSY, REAR DOOR, REAR RH
HAWAII SPEC
KOREA SPEC
PUERTO RICO SPEC
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67860PROTECTOR ASSY, REAR DOOR, REAR LH
HAWAII SPEC
KOREA SPEC
PUERTO RICO SPEC
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
BLUE
BLACK
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
PINK
BLACK
67868GRETAINER, DOOR WEATHERSTRIP
67869DCLIP, DOOR WEATHERSTRIP
COLOR:BLUE
COLOR:PINK
COLOR : BLACK
COLOR:BLACK
COLOR : BLACK
COLOR = GREEN
COLOR = BROWN
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67873LWEATHERSTRIP, REAR DOOR, NO.5 RH
67897LWEATHERSTRIP, REAR DOOR, NO.4 RH
67898GWEATHERSTRIP, REAR DOOR, NO.4 LH
67923HRETAINER, DOOR CORNER SEAL
68103GLASS SUB-ASSY, REAR DOOR, RH
REFER TO PNC 69205A
68104GLASS SUB-ASSY, REAR DOOR, LH
REFER TO PNC 69206C
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
75953ATAPE, BLACK OUT, INNER REAR RH
REFER TO PNC 69205A
75954ATAPE, BLACK OUT, INNER REAR LH
REFER TO PNC 69206C
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
REFER TO PNC 69205A
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
REFER TO PNC 69206C
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
REFER TO PNC 69205A
75988ESTRIPE, REAR DOOR, OUTSIDE LH
REFER TO PNC 69206C
8420
86262DCOVER, REAR DOOR SPEAKER
9010908295
main90109-08295
9011906983
main90119-06983
9015960303
main90159-60303
9016140030
main90161-40030
9018906227
main90189-06227
9046709206
main90467-09206
9095001506
main90950-01506
9095001808
main90950-01808
9095001956
main90950-01956
9095001A02
main90950-01A02
9095001A17
main90950-01A17
9415180600
main94151-80600
60 parts on this diagram · 2 diagrams in section
