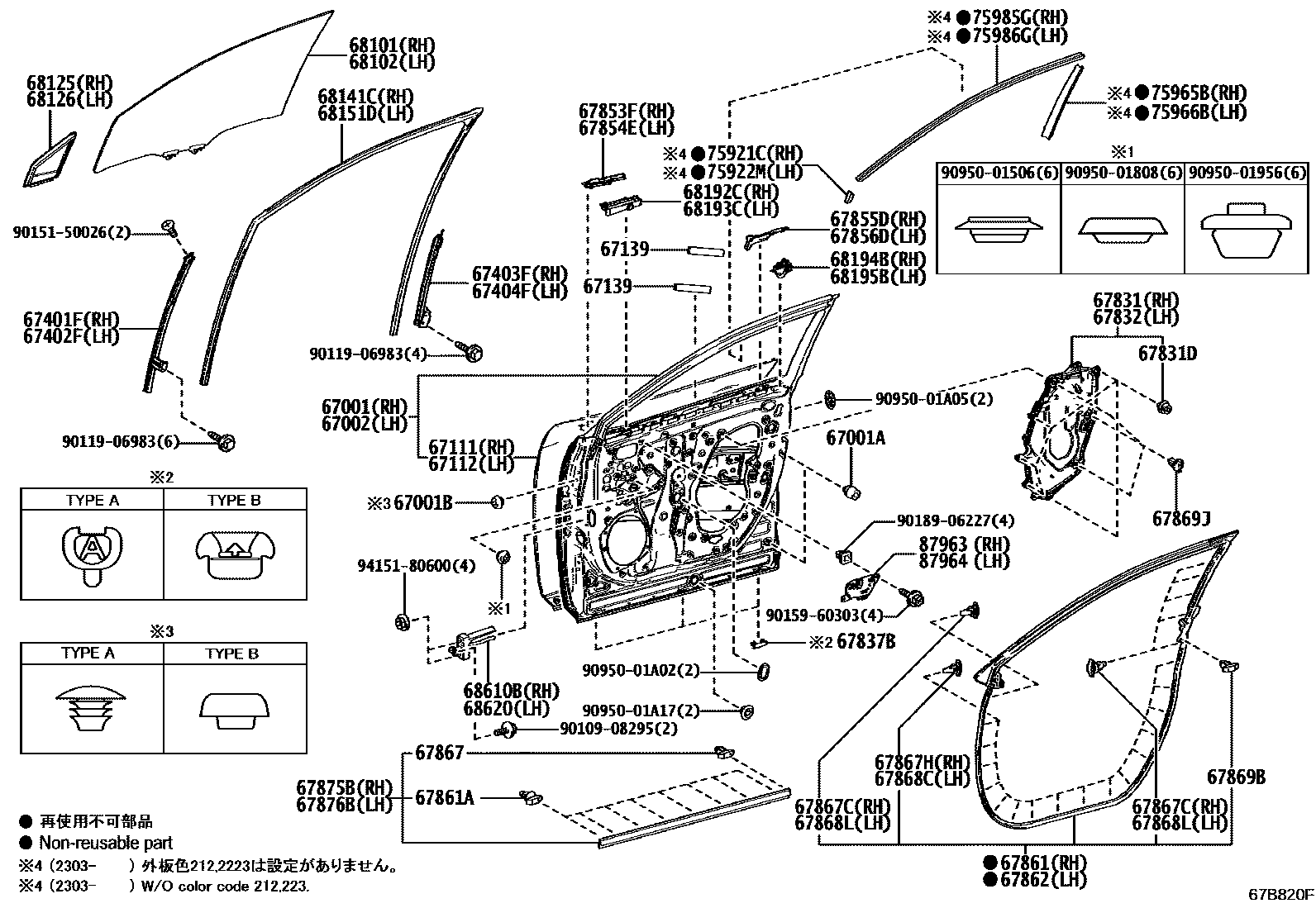

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67001BPLUG, HOLE(FOR FRONT DOOR PANEL)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
67853FPROTECTOR, FRONT DOOR, UPPER RH
67854EPROTECTOR, FRONT DOOR, UPPER LH
67855DPROTECTOR, FRONT DOOR PANEL, RH
67856DPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867HRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869JCLIP, FRONT DOOR WEATHERSTRIP
67875BWEATHERSTRIP, FRONT DOOR, NO.4 RH
67876BWEATHERSTRIP, FRONT DOOR, NO.4 LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
KOREA SPEC
68102GLASS SUB-ASSY, FRONT DOOR, LH
KOREA SPEC
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68192CSEAL, FRONT DOOR BELT, FRONT RH
68193CSEAL, FRONT DOOR BELT, FRONT LH
68194BSEAL, FRONT DOOR BELT, REAR RH
68195BSEAL, FRONT DOOR BELT, REAR LH
68610BCHECK ASSY, FRONT DOOR, RH
75921CTAPE, BLACK OUT, NO.1 RH
REFER TO PNC 69205
75922MTAPE, BLACK OUT, NO.1 LH
REFER TO PNC 69206B
75965BSTRIPE, FRONT DOOR NO.4 RH
REFER TO PNC 69205
75966BSTRIPE, FRONT DOOR NO.4 LH
REFER TO PNC 69206B
75985GSTRIPE, FRONT DOOR OUTSIDE, RH
REFER TO PNC 69205
75986GSTRIPE, FRONT DOOR OUTSIDE, LH
REFER TO PNC 69206B
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9015960303
main90159-60303
9018906227
main90189-06227
9095001506
main90950-01506
9095001808
main90950-01808
9095001956
main90950-01956
9095001A02
main90950-01A02
9095001A05
main90950-01A05
9095001A17
main90950-01A17
9415180600
main94151-80600
63 parts on this diagram · 2 diagrams in section
