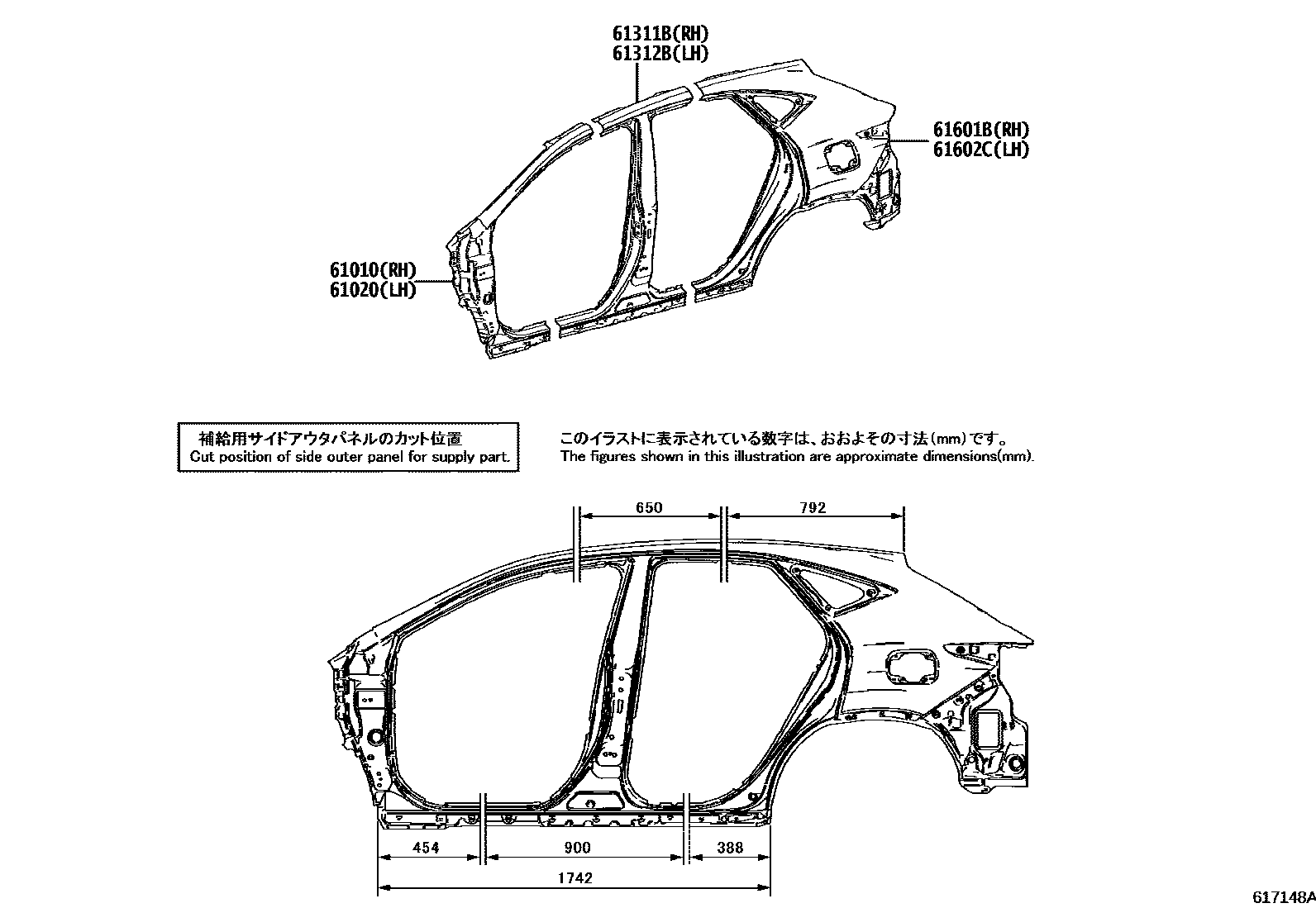

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61010MEMBER ASSY, SIDE, RH

main61010-78010iAAZA2#202111-202506

61020MEMBER ASSY, SIDE, LH

main61020-78010iAAZA2#202111-202506

61311BPILLAR, CENTER BODY, OUTER RH

main61311-78020iAAZA2#202111-202506

61312BPILLAR, CENTER BODY, OUTER LH

main61312-78020iAAZA2#202111-202506

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-78070iAAZA2#,AAZH25,TAZA25202111-202506

main61601-78080iAAZH26202111-202403

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-78070iAAZA2#202111-202506

6 parts on this diagram · 3 diagrams in section
