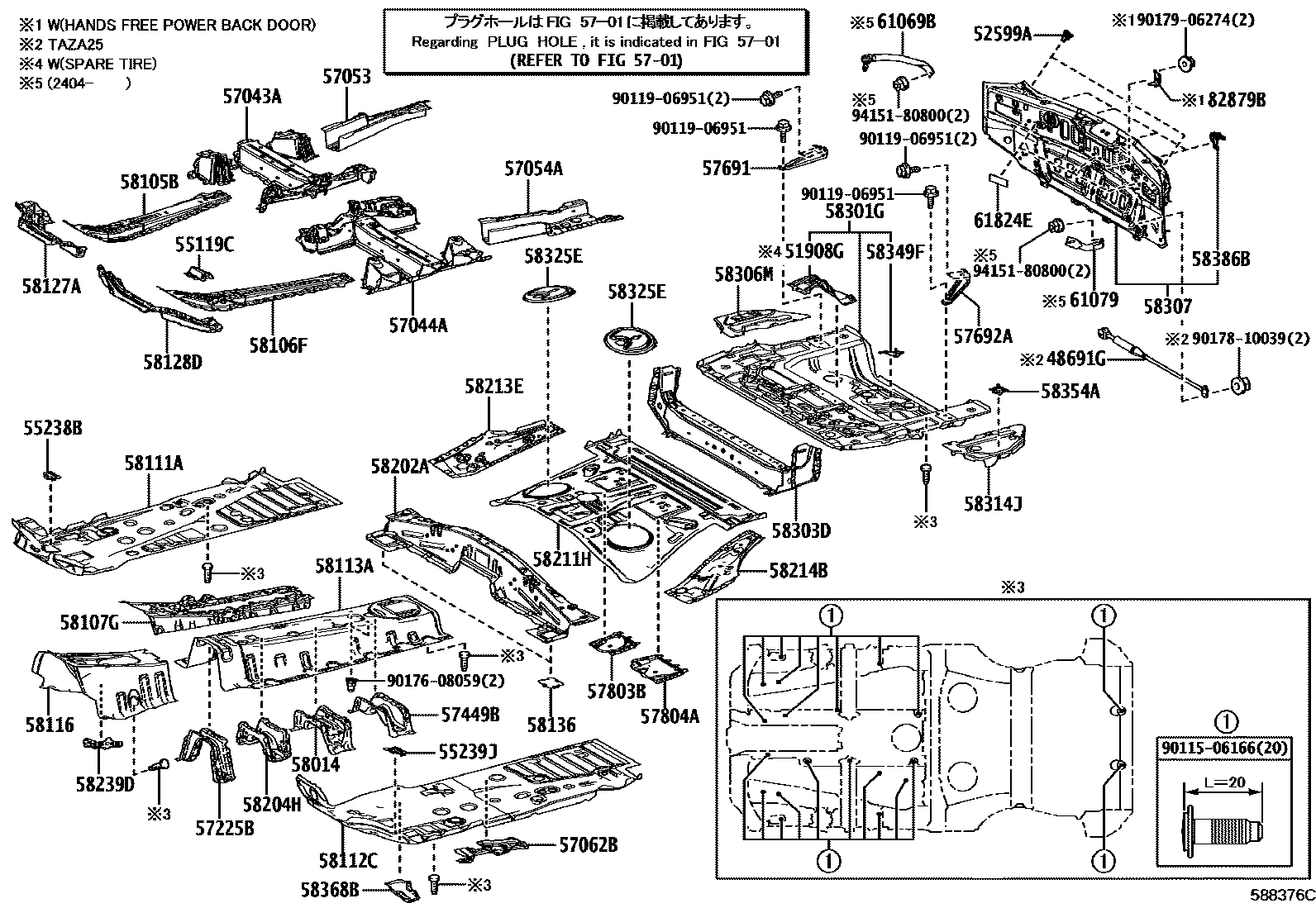

FLOOR PAN & LOWER BACK PANEL
48691GDAMPER, SUSPENSION TOWER
"F SPORT"*(F)
PREMIUM PACKAGE
"VERSION L"*(L)
51908GBRACKET SUB-ASSY, SPARE TIRE CARRIER
52599ASTOPPER, REAR BUMPER, UPPER
55119CBRACKET, CLUTCH BOOSTER
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57225BBRACE, FRONT MOUNTING BRACKET
57449BRETAINER, CENTER FLOOR CROSSMEMBER, LH
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
PLANT NO. A51-A54
PLANT NO. Q11-Q12
TMK PLANT
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
PLANT NO. A51-A54
TMK PLANT
PLANT NO. Q11-Q12
58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE
58111APAN, FRONT FLOOR, RH
PLANT NO. A51-A54
TAHARA PLANT
PLANT NO. Q11-Q12
TMK PLANT
58112CPAN, FRONT FLOOR, LH
PLANT NO. A51-A54
TAHARA PLANT
PLANT NO. Q11-Q12
TMK PLANT
58113APANEL, FRONT FLOOR, CENTER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58204HPAN SUB-ASSY, CENTER FLOOR, REAR
58211HPAN, CENTER FLOOR
58213EPANEL, SEAT FLOOR SIDE, RH
58214BPANEL, SEAT FLOOR SIDE, LH
58239DBRACKET, CABLE CLAMP
58301GPAN SUB-ASSY, REAR FLOOR
PUERTO RICO SPEC&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J
sub58301-78904
sub58301-78905
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58314JPANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58349FRETAINER, REAR FLOOR SUPPORT STAY
58354ASTAY, REAR FLOOR, LH
58368BBRACKET, FUEL TUBE, NO.2
58386BBRACKET, REAR BUMPER COVER, NO.2
61069BBRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 RH
61079BRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 LH
61824EPLATE, NOISE CONTROL, NO.1
82879BADAPTER, COMPUTER INTEGRATION BOX
9011506166
main90115-06166
9011906951
main90119-06951
9017608059
main90176-08059
9017810039
main90178-10039
9017906274
main90179-06274
9415180800
main94151-80800
55 parts on this diagram · 3 diagrams in section
