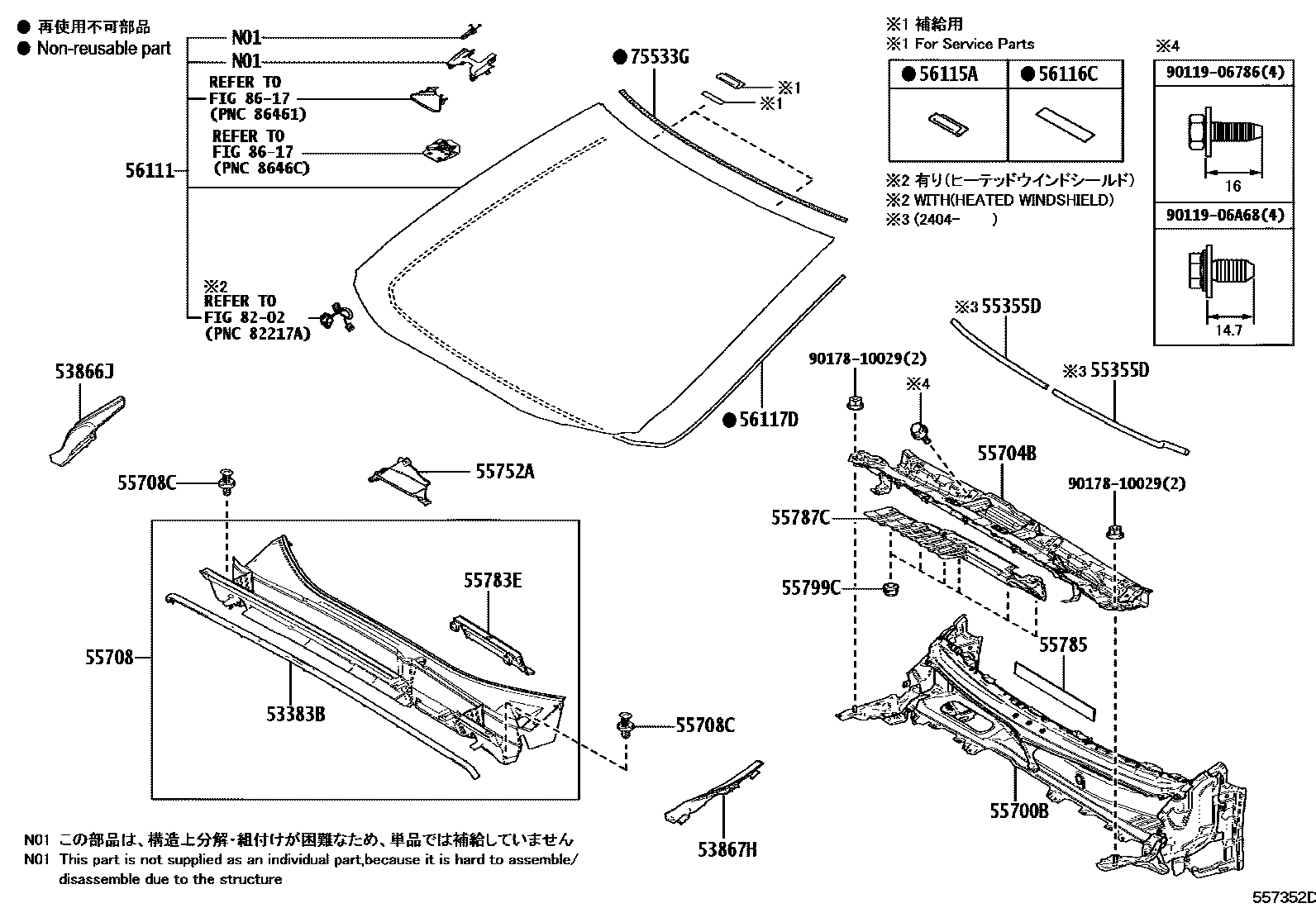

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55355DCUSHION, INSTRUMENT PANEL, NO.1
55704BPANEL SUB-ASSY, COWL VENTILATOR
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55752ASHIELD, COWL VENTILATOR SPLASH, LH
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55785PAD, COWL OUTER PANEL, NO.2
55787CINSULATOR, COWL TOP PANEL, NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56111GLASS, WINDSHIELD
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)&HEAD UP DISPLAY-WITHOUT
HEAD UP DISPLAY-WITHOUT
INTERMITTENT WIPER-WITH(RAIN SENSOR)
INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2952
*D,L=2952,COLD AREA SPEC-COLD AREA SPEC
*D,L=2952,COLD AREA SPEC-COLD AREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR)
*D,L=2952,COLD AREA SPEC-COLD AREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEADUP DISPLAY-WITH
*D,L=2952,COLD AREA SPEC-COLD AREA SPEC&HEAD UP DISPLAY-WITH
*D,L=2952,COLD AREA SPEC-COLD AREA SPEC&HEAD UP DISPLAY-WITHOUT
*D,L=2952,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)&HEAD UP DISPLAY-WITHOUT
*D,L=2952,INTERMITTENT WIPER-WITH(RAIN SENSOR)
*D,L=2952,INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2952,HEAD UP DISPLAY-WITH
*D,L=2952,HEAD UP DISPLAY-WITHOUT
*D,L=2952,COLD AREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR)
sub56117-64010
*D,L=2952,COLD AREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD UP DISPLAY-WITH
sub56117-64010
*D,L=2952,COLD AREA SPEC&HEAD UP DISPLAY-WITH
sub56117-64010
*D,L=2952,COLD AREA SPEC&HEAD UP DISPLAY-WITHOUT
sub56117-64010
*D,L=2952,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)&HEAD UP DISPLAY-WITHOUT
sub56117-64010
*D,L=2952,INTERMITTENT WIPER-WITH(RAIN SENSOR)
sub56117-64010
*D,L=2952,INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD UP DISPLAY-WITH
sub56117-64010
75533GMOULDING, WINDSHIELD, OUTSIDE
8202
8617
9011906786
main90119-06786
9011906A68
main90119-06A68
9017810029
main90178-10029
23 parts on this diagram · 1 diagram in section
