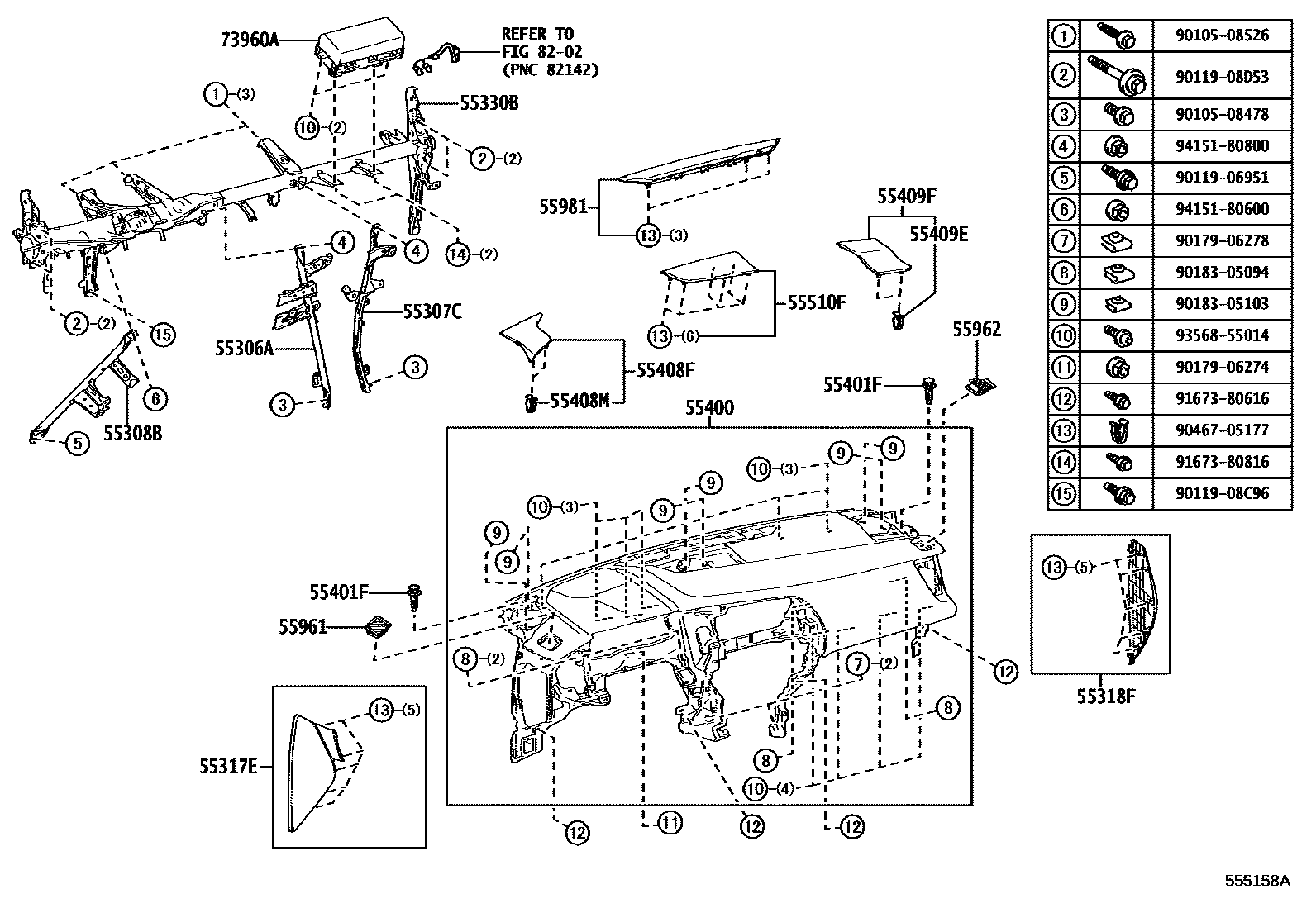

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1W/O(HEAD-UP DISPLAY) 0002 1W(HEAD-UP DISPLAY) 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-78030iAAZA2#,AAZH2#,TAZA25202111-202506

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-78030iAAZA2#,AAZH2#,TAZA25202111-202506

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-78010iAAZH2#,TAZA25202111-202506

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-78030-C0iAAZH2#,TAZA25202111-202506

BLACK,TRIM0#,2#,3#,4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-78030-C0iAAZA2#202111-202506

BLACK,TRIM0#,2#,3#,4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-78090iAAZH2#202111-202403

HEAD UP DISPLAY-WITHOUT

main55330-78090iAAZA2#202404-202506

main55330-78100iTAZA25202111-202403

HEAD UP DISPLAY-WITH

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-78010-C2iTAZA25202111-202506

BLACK,TRIM0#,2#,3#,4#

main55400-78010-C2iAAZH2#202111-202403

HEAD UP DISPLAY-WITHOUT,BLACK,TRIM0#,2#,3#,4#

main55400-78020-C2iAAZH2#202111-202403

HEAD UP DISPLAY-WITH,BLACK,TRIM0#,2#,3#,4#

main55400-78020-C2iTAZA25202111-202403

BLACK,TRIM0#,2#,3#,4#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iAAZA2#202111-202506

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-78100-C0iAAZA2#202111-202506

BLACK,TRIM0#,2#,3#,4#

55408MCLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)

main90467-05177iAAZH2#,TAZA25202111-202506

55409ECLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)

main90467-05177iAAZA2#,AAZH2#,TAZA25202111-202506

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-78090-C0iAAZH2#,TAZA25202111-202506

BLACK,TRIM0#,2#,3#,4#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-78100-C0iAAZA2#202111-202506

BLACK,TRIM0#,2#,3#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-78030-C0iAAZH2#,TAZA25202111-202506

BLACK,TRIM0#,2#,3#,4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-78030-C0iAAZA2#202111-202506

BLACK,TRIM0#,2#,3#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-78040-C0iAAZH2#,TAZA25202111-202506

BLACK,TRIM0#,2#,3#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-78040iAAZA2#202111-202506

8202

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D53

main90119-08D53

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9046705177

main90467-05177

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

33 parts on this diagram · 5 diagrams in section
