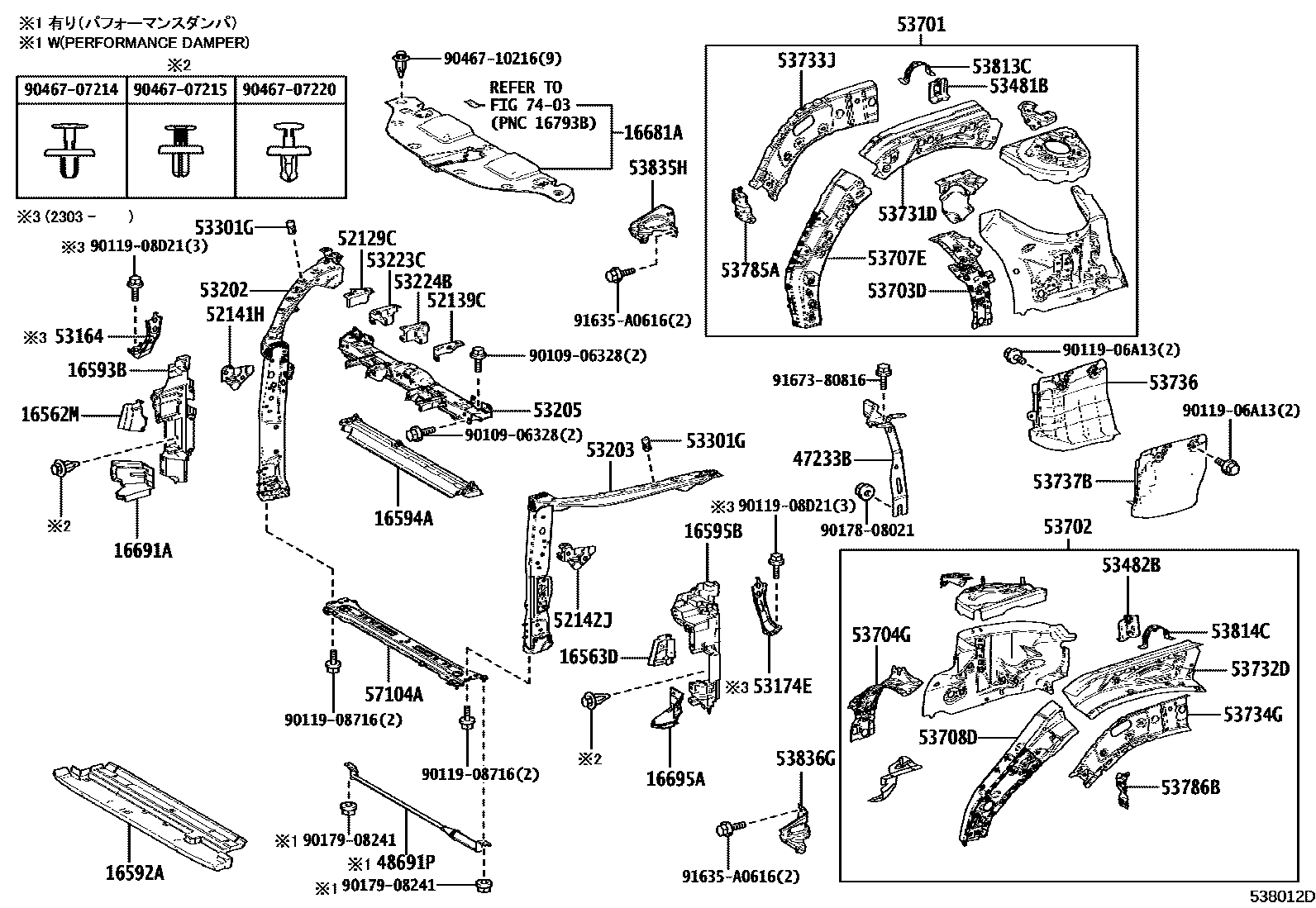

FRONT FENDER APRON & DASH PANEL
16562MSEAL, RADIATOR TO SUPPORT, NO.2
16563DSEAL, RADIATOR TO SUPPORT, NO.3
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
16594AGUIDE, RADIATOR AIR, NO.2
16595BGUIDE, RADIATOR AIR, NO.1 LH
TOWING PACKAGE-2000 LBS
16681APLATE, RADIATOR UPPER AIR GUIDE
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
47233BBRACKET, RESERVOIR TANK, NO.1
48691PDAMPER, SUSPENSION TOWER
"VERSION L"*(L)
PREMIUM PACKAGE
"F SPORT"*(F)
52129CARM, FRONT BUMPER, UPPER NO.2 RH
52139CARM, FRONT BUMPER, UPPER NO.2 LH
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53164BRACKET, RADIATOR SUPPORT SIDE
53174EBRACKET, RADIATOR SUPPORT SIDE
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53223CBRACKET, RADIATOR GRILLE MOUNTING, RH
53224BBRACKET, RADIATOR GRILLE MOUNTING, LH
53301GCUSHION, HOOD BUMPER
53481BBRACKET, HOOD SUPPORT, RH
53482BBRACKET, HOOD SUPPORT LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH
53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733JMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH
53734GMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53785AGUSSET, FRONT FENDER APRON, UPPER RH
53786BGUSSET, FRONT FENDER APRON, UPPER LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835HBRACE, FRONT FENDER TO EXTENSION, RH
53836GBRACE, FRONT FENDER TO EXTENSION, LH
57104AMEMBER SUB-ASSY, FRONT CROSS
7403
9010906328
9011906A13
9011908716
9011908D21
9017808021
9017908241
9046707214
9046707215
9046707220
9046710216
91635A0616
9167380816
57 parts on this diagram · 2 diagrams in section
