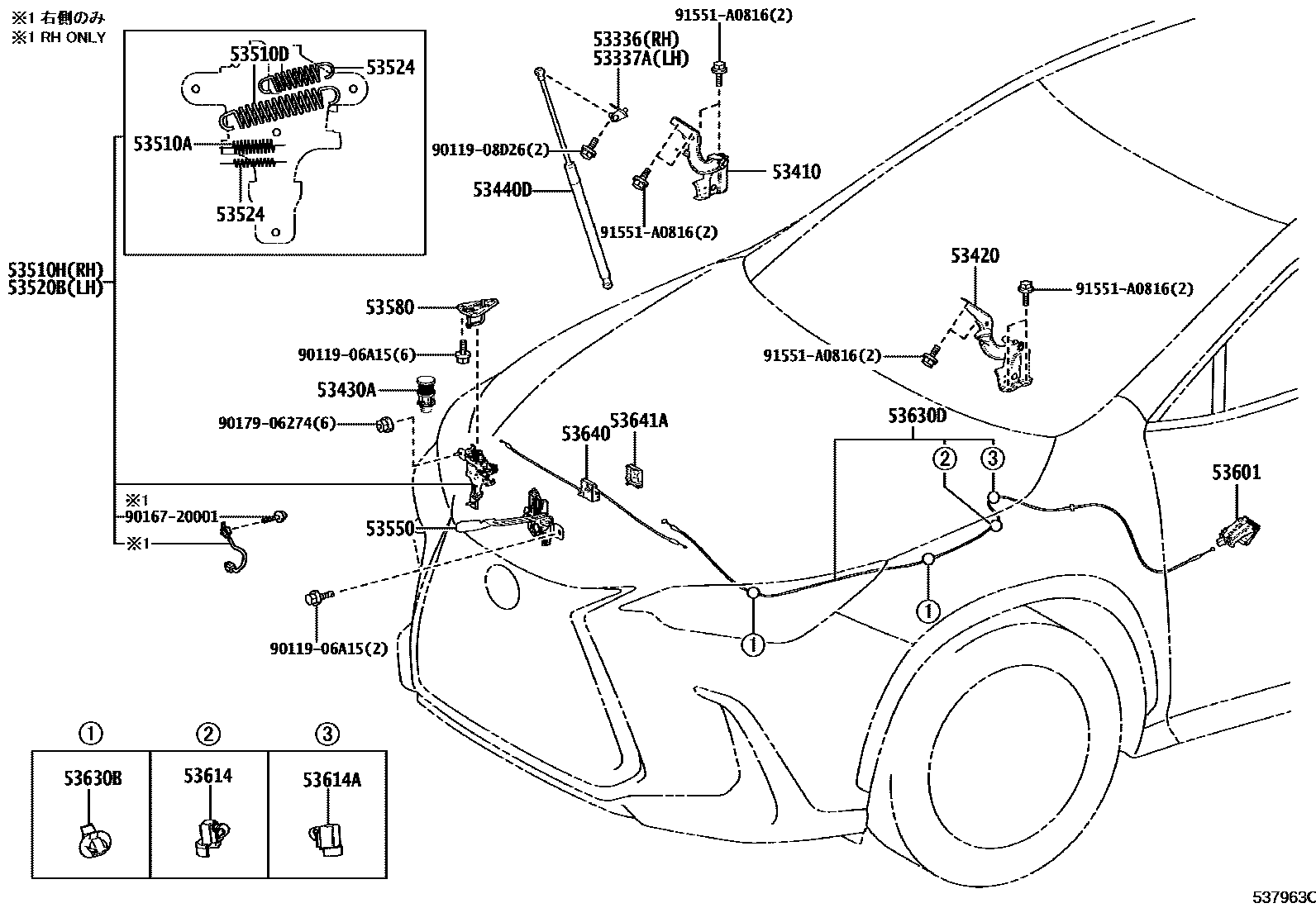

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-78010iAAZH2#,TAZA25202404

53337ABRACKET, HOOD STAY, LH

main53337-78010iAAZA2#202404-202506

53410HINGE ASSY, HOOD, RH

main53410-78050iAAZA2#202404-202506

53420HINGE ASSY, HOOD, LH

main53420-78050iAAZA2#202404-202506

53430ASPRING, TENSION(FOR HOOD SUPPORT)

main53590-78010×2iAAZA2#202404-202506

53440DSUPPORT ASSY, HOOD

main53440-0W380×2iAAZA2#202404-202506

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055×2iAAZA2#202404-202506

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-10048×2iAAZA2#202404-202506

WD=1.0,CW=14

53510HLOCK ASSY, HOOD, RH, W/COURTESY LAMP SWITCH

main53510-78060iAAZA2#202404-202506

53520BLOCK ASSY, HOOD, LH

main53520-78010iAAZA2#202404-202506

53524DAMPER, HOOD LOCK SPRING

main53524-30020×2iAAZH2#,TAZA25202404

L=32

main53524-30040×2iAAZH2#,TAZA25202404

L=18

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-78020iAAZH2#,TAZA25202404

53580STRIKER ASSY, HOOD LOCK

main53580-78010×2iAAZA2#202404-202506

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iAAZA2#202404-202506

BLACK,TRIM0#,2#,3#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-78010iAAZA2#202404-202506

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-78020iAAZA2#,AAZH2#202111-202403

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iAAZA2#202404-202506

53630DSET, CABLE & LEVER, HOODLOCK CONTROL

main53630-78040iAAZA2#,AAZH2#202111-202403

main53630-78060iTAZA25202111-202403

53640JUNCTION ASSY, HOOD LOCK CONTROL

main53640-78010iAAZA2#202404-202506

53641ACOVER, HOOD LOCK CONTROL

main53641-78010iAAZA2#202404-202506

9011906A15

main90119-06A15

9011908D26

main90119-08D26

9016720001

main90167-20001

9017906274

main90179-06274

91551A0816

main91551-A0816

25 parts on this diagram · 1 diagram in section
