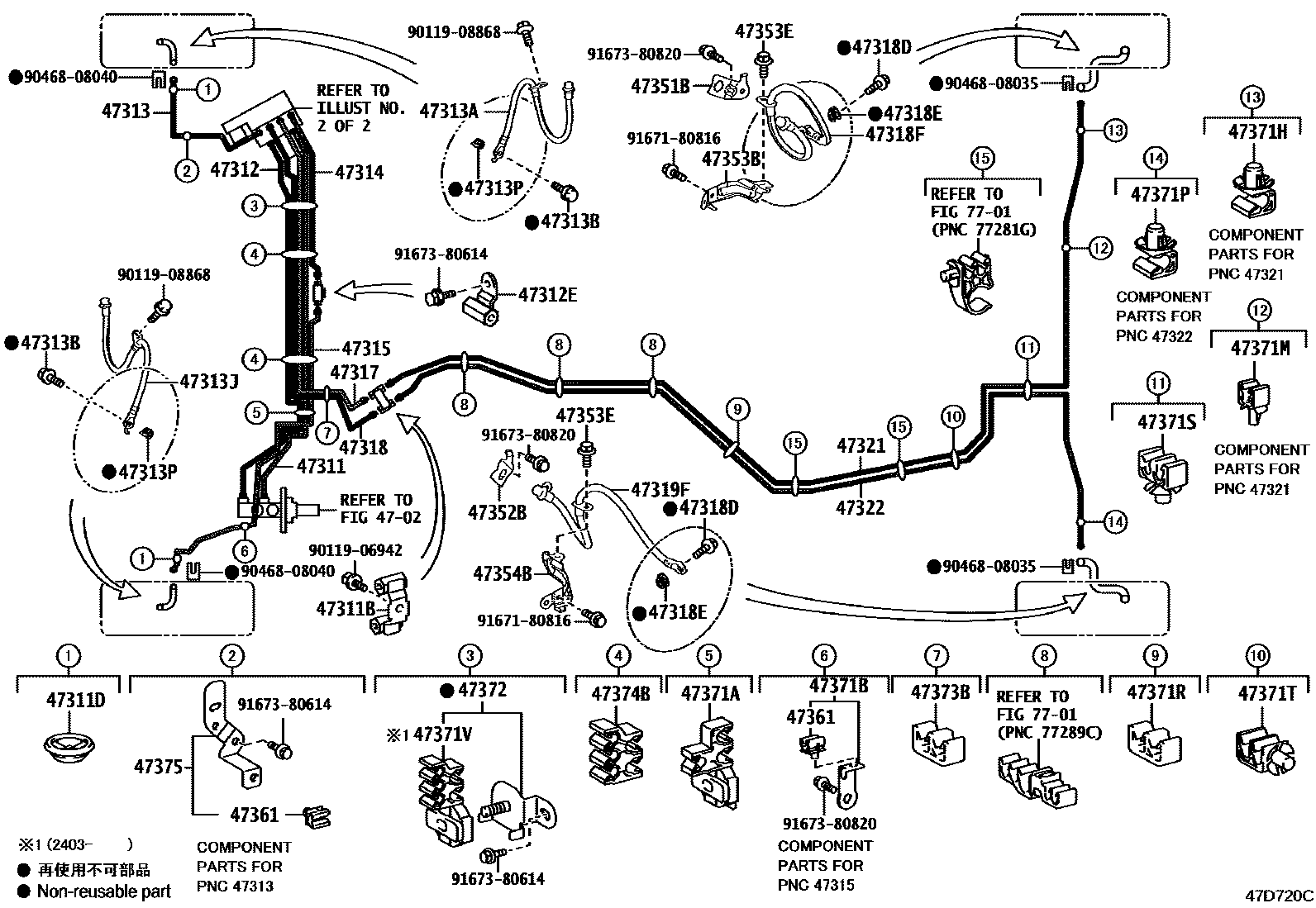

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-78050iAAZA2#202404-202506

main47311-78110iAAZH2#202404

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAAZH2#202404

main90412-10314iAAZA2#202404-202506

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAAZA2#202404-202506

47312TUBE, FRONT BRAKE, NO.2

main47312-78030iTAZA25202404

main47312-78090iAAZH2#202111-202403

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10272iTAZA25202404

47313TUBE, FRONT BRAKE, NO.3

main47313-78040iTAZA25202111-202403

main47313-78050iAAZA2#202404-202506

main47313-78090iAAZH25202404

main47313-78100iAAZH26202111-202403

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J10supersedes 90947-02J12iAAZA2#202404-202506

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAAZA2#202404-202506

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J11supersedes 90947-02J15iAAZA2#202404-202506

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAAZA2#202404-202506

47314TUBE, FRONT BRAKE, NO.4

main47314-78030iAAZA2#202404-202506

47315TUBE, FRONT BRAKE, NO.5

main47315-78040iAAZA2#,TAZA25202111-202403

main47315-78060iAAZH2#202111-202403

47317TUBE, FRONT BRAKE, NO.7

main47317-78050iTAZA25202404

main47317-78110iAAZH2#202111-202403

47318TUBE, FRONT BRAKE, NO.8

main47318-78050iAAZA2#,TAZA25202111-202403

main47318-78110iAAZH2#202404

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAAZA2#202404-202506

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAAZA2#202404-202506

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J43iAAZA2#202404-202506

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J44iAAZA2#202404-202506

47321TUBE, REAR BRAKE, NO.1

main47321-42210iAAZA2#202404-202506

main47321-42220iAAZH26202111-202403

47322TUBE, REAR BRAKE, NO.2

main47322-42190iAAZH25,TAZA25202404

main47322-42200iAAZH26202404

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iAAZA2#,AAZH2#,TAZA25202111-202403

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iAAZH2#,TAZA25202404

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iAAZA2#202404-202506

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868×2iAAZA2#202404-202506

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iAAZA2#202404-202506

47361CLAMP, TUBE

main90949-01D56×2iAAZH26202404

47371ACLAMP, BRAKE TUBE, NO.1

main47371-48190iAAZA2#,TAZA25202111-202403

main47371-62020iAAZH2#202111-202403

47371BCLAMP, BRAKE TUBE, NO.6

main47371-42140iAAZH2#,TAZA25202404

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01C82iAAZH26202404

main90949-01D17iAAZH25,TAZA25202404

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D17iAAZH26202111-202403

main90949-01E01iAAZH25,TAZA25202404

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01D17iAAZA2#202404-202506

main90949-01E01iAAZH26202111-202403

47371RCLAMP, BRAKE TUBE, NO.16

main90464-00903iAAZA2#202404-202506

47371SCLAMP, BRAKE TUBE, NO.17

main90949-01D12iAAZA2#,AAZH25,TAZA25202111-202403

47371TCLAMP, BRAKE TUBE, NO.18

main90949-01D13iAAZA2#202404-202506

47371VCLAMP, BRAKE TUBE, NO.20

main47371-48180iTAZA25202404

47372CLAMP, BRAKE TUBE, NO.2

main47371-78010iAAZH2#202111-202403

main47372-48030iAAZA2#,TAZA25202111-202403

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00903iAAZH2#,TAZA25202404

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E40×2iAAZH2#,TAZA25202404

47375CLAMP, BRAKE TUBE, NO.5

main47371-42130iAAZA2#,AAZH25202111-202403

main90949-01D17iAAZH26202404

7701

9011906942

main90119-06942

9011908868

main90119-08868

9046808035

main90468-08035

9046808040

main90468-08040

9167180816

main91671-80816

9167380614

main91673-80614

9167380820

main91673-80820

48 parts on this diagram · 6 diagrams in section
