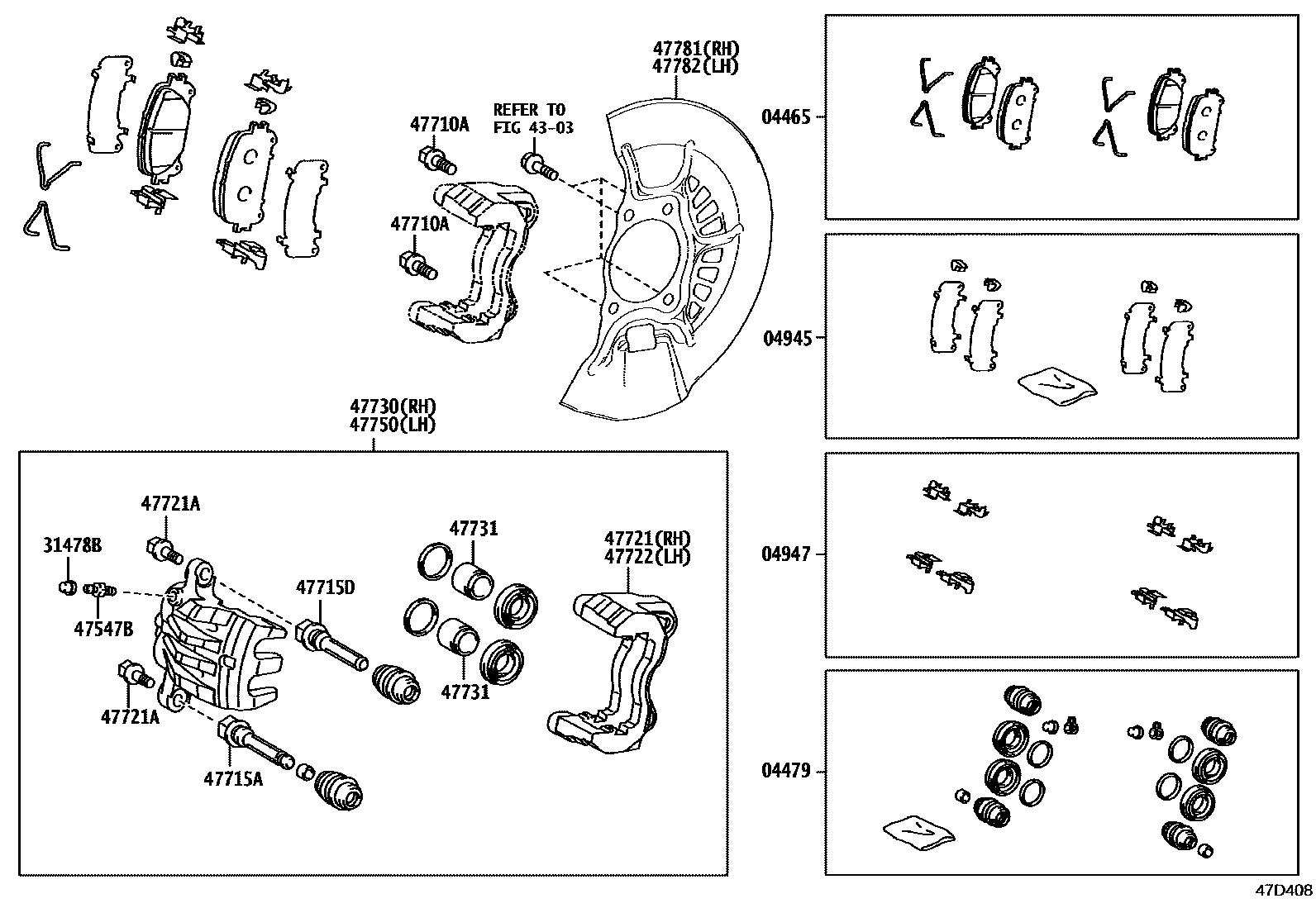

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK ADVICS VC084H,TYPE A:REFER ILLUST.
MARK ADVICS VC084H
MARK ADVICS VC084H
MARK ADVICS VC084H,TYPE C:REFER ILLUST.
04479CYLINDER KIT, DISC BRAKE, FRONT
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
04945SHIM KIT, ANTI SQUEAL, FRONT
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
04947FITTING KIT, DISC BRAKE, FRONT
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
TYPE C:REFER ILLUST.
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX35.5-30,TYPE A:REFER ILLUST.
*12-1.25PX35.5-30,TYPE C:REFER ILLUST.
*12-1.25PX35.5-30
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
*8-1.00PX23-12.5,TYPE A:REFER ILLUST.
*8-1.00PX23-12.5,TYPE C:REFER ILLUST.
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
47731PISTON, FRONT DISC BRAKE
TYPE A:REFER ILLUST.
47750CYLINDER ASSY, DISC BRAKE, LH
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
17 parts on this diagram · 2 diagrams in section
