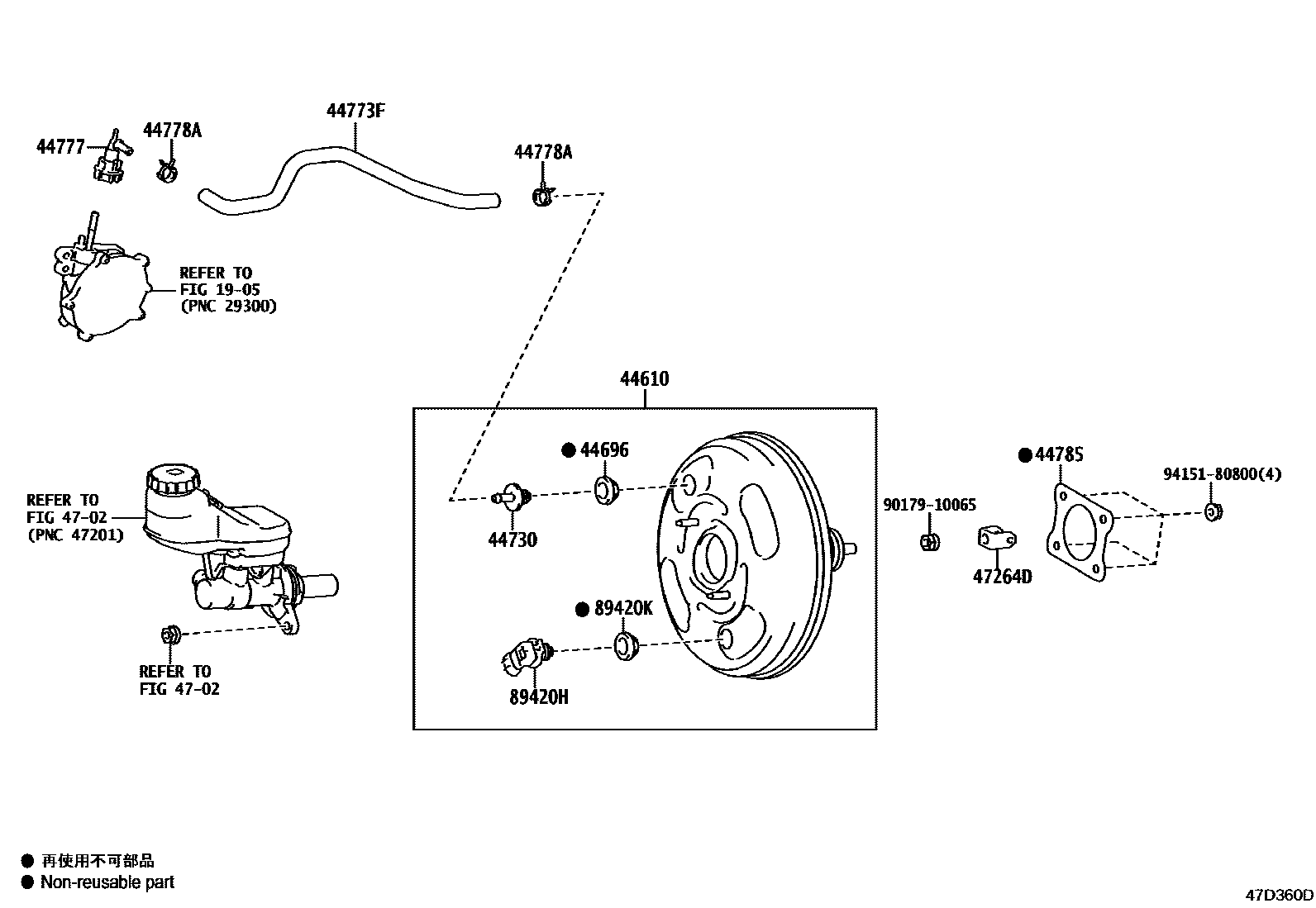

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-78140iAAZA2#,TAZA25202111-202403

main44610-78170iTAZA25202404-202506

44696GROMMET, CHECK VALVE

main90480-24439iAAZA2#202111-202506

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iTAZA25202111-202506

44773FHOSE, UNION TO CHECK VALVE

main44773-78040iAAZA2#202111-202506

44777CONNECTOR, VACUUM HOSE, NO.1

main29612-25010iTAZA25202111-202403

main44777-33010iAAZA2#202111-202506

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main90467-16014iAAZA2#202111-202506

44785GASKET, BRAKE BOOSTER

main44785-12040iAAZA2#202111-202506

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iTAZA25202111-202506

89420HSENSOR ASSY, VACUUM

main89421-52020iAAZA2#,TAZA25202111-202403

main89421-71040iAAZA2#202404-202507

89420KGROMMET, VACUUM SENSOR

main90480-24439iAAZA2#202111-202506

9017910065

main90179-10065

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
