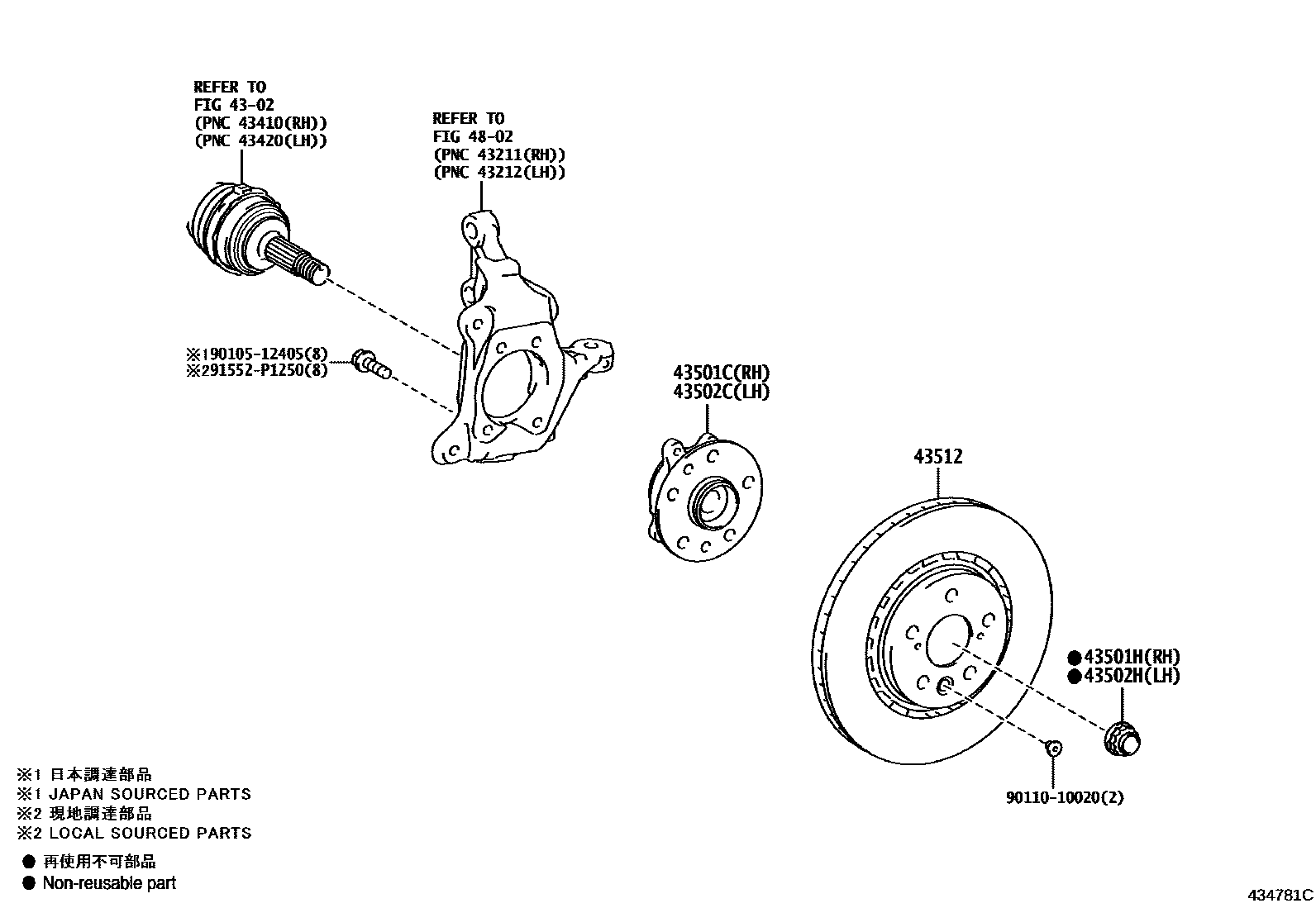

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-78010iAAZH2#,TAZA25202404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAAZA2#202404-202506

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-78010iAAZA2#,AAZH2#,TAZA25202111-202403

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAAZH2#,TAZA25202404

43512DISC, FRONT

main43512-78010×2iAAZH25,TAZA25202404

main43512-78020×2iAAZH26202111-202403

4802

9010512405

main90105-12405

9011010020

main90110-10020

91552P1250

main91552-P1250

10 parts on this diagram · 1 diagram in section
