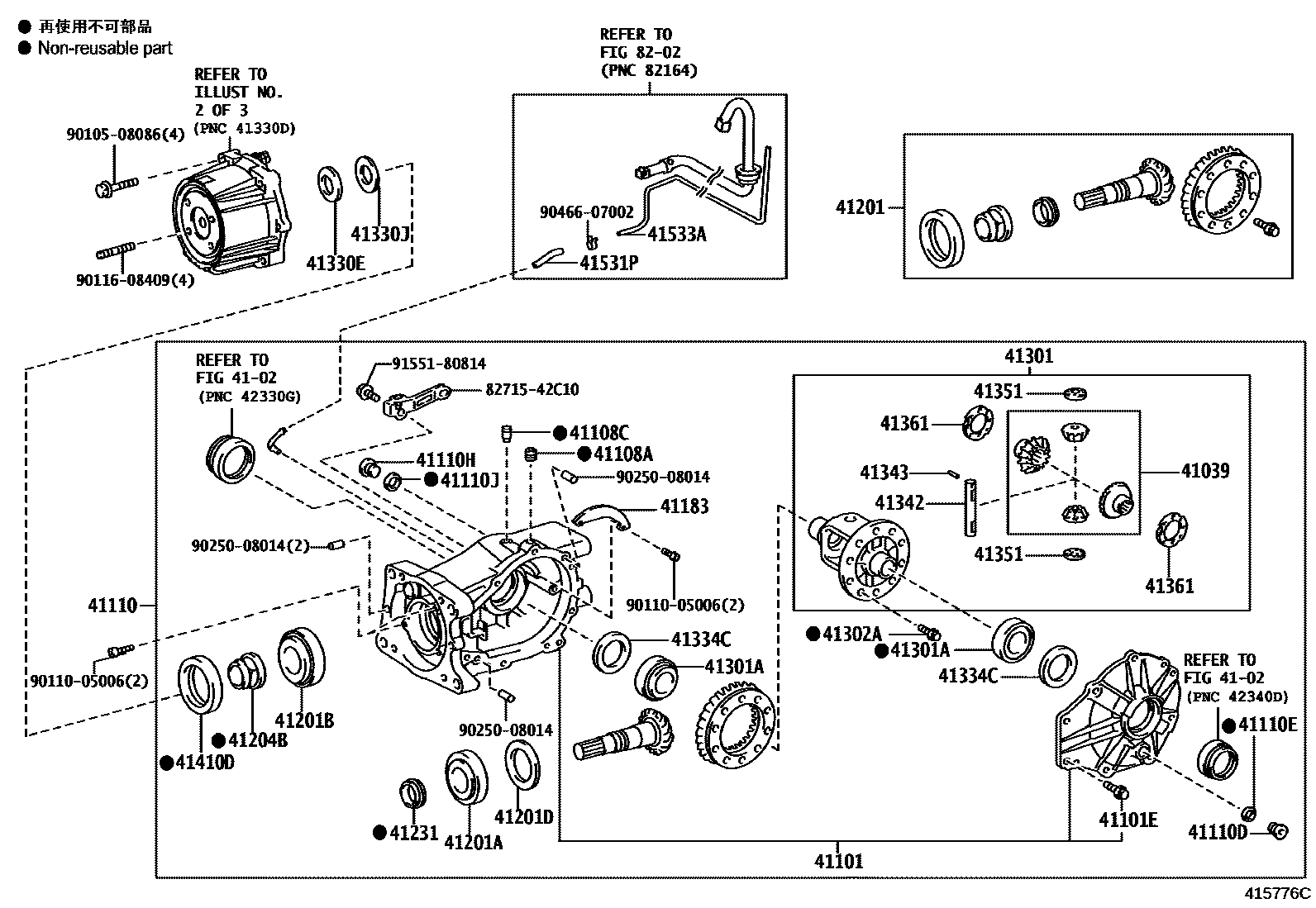

REAR AXLE HOUSING & DIFFERENTIAL
4102
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:18=2.277
*FGR=41:18=2.277
*FGR=41:18=2.277
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:18=2.277
*FGR=41:18=2.277
*FGR=41:18=2.277
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.70,MARK 41
T=1.72,MARK 43
T=1.74,MARK 45
T=1.76,MARK 47
T=1.78,MARK 49
T=1.80,MARK 51
T=1.82,MARK 53
T=1.84,MARK 55
T=1.86,MARK 57
T=1.88,MARK 59
T=1.90,MARK 61
T=1.92,MARK 63
T=1.94,MARK 65
T=1.96,MARK 71
T=1.98,MARK 73
T=2.00,MARK 75
T=2.02,MARK 77
T=2.04,MARK 79
T=2.06,MARK 81
T=2.08,MARK 83
T=2.10,MARK 85
T=2.12,MARK 87
T=2.14,MARK 89
T=2.16,MARK 91
T=2.18,MARK 93
T=2.20,MARK 95
T=2.22,MARK 97
T=2.24,MARK 99
41204BNUT (FOR REAR DRIVE PINION)
OD=41.6
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330JSHIM (FOR TRANSMISSION COUPLING)
T=2.00,MARK 1
T=2.30,MARK 2
T=2.60,MARK 3
T=1.85,MARK 4
T=2.15,MARK 5
T=2.45,MARK 6
T=1.75,MARK 8
T=1.80,MARK 9
T=1.90,MARK 10
T=1.95,MARK 11
T=2.05,MARK 12
T=2.10,MARK 13
T=2.20,MARK 14
T=2.25,MARK 15
T=2.35,MARK 16
T=2.40,MARK 17
T=2.50,MARK 18
T=2.55,MARK 19
T=2.65,MARK 20
T=2.70,MARK 21
T=1.80
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=1.75,MARK 75
T=1.78,MARK 76
T=1.81,MARK 77
T=1.84,MARK 78
T=1.87,MARK 79
T=1.90,MARK 80
T=1.93,MARK 81
T=1.96,MARK 82
T=1.99,MARK 83
T=2.02,MARK 84
T=2.05,MARK 85
T=2.08,MARK 86
T=2.11,MARK 88
T=2.14,MARK 89
T=2.17,MARK 90
T=2.20,MARK 91
T=2.23,MARK 92
T=2.26,MARK 93
T=2.29,MARK 94
T=2.32,MARK 95
T=2.35,MARK 96
T=2.38,MARK 97
T=2.41,MARK 98
T=2.44,MARK 99
T=2.47,MARK 00
T=2.50,MARK 01
T=2.53,MARK 02
T=2.56,MARK 03
T=2.59,MARK 04
T=2.62,MARK 05
T=2.65,MARK 06
T=2.68,MARK 07
T=2.71,MARK 08
T=2.74,MARK 09
T=2.77,MARK 10
T=2.80,MARK 11
T=2.83,MARK 12
T=2.86,MARK 13
T=2.89,MARK 14
T=1.60
T=1.63
T=1.66
T=1.69
T=1.72
T=1.75
T=1.78
T=1.81
T=1.84
T=1.87
T=1.90
T=1.93
T=1.96
T=1.99
T=2.02
T=2.05
T=2.08
T=2.11
T=2.14
T=2.17
T=2.20
T=2.23
T=2.26
T=2.29
T=2.32
T=2.35
T=2.38
T=2.41
T=2.44
T=2.47
T=2.50
T=2.53
T=2.56
T=2.59
T=2.62
T=2.65
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.40
T=1.45
41410DSEAL, OIL DIAPHRAGM
41531PHOSE, REAR DIFFERENTIAL VACUUM
8202
8271542C10BRACKET,WIRING HARNESS CLAMP
main82715-42C10
9010508086
main90105-08086
9011005006
main90110-05006
9011608409
main90116-08409
9025008014
main90250-08014
9046607002
main90466-07002
9155180814
main91551-80814
40 parts on this diagram · 8 diagrams in section
