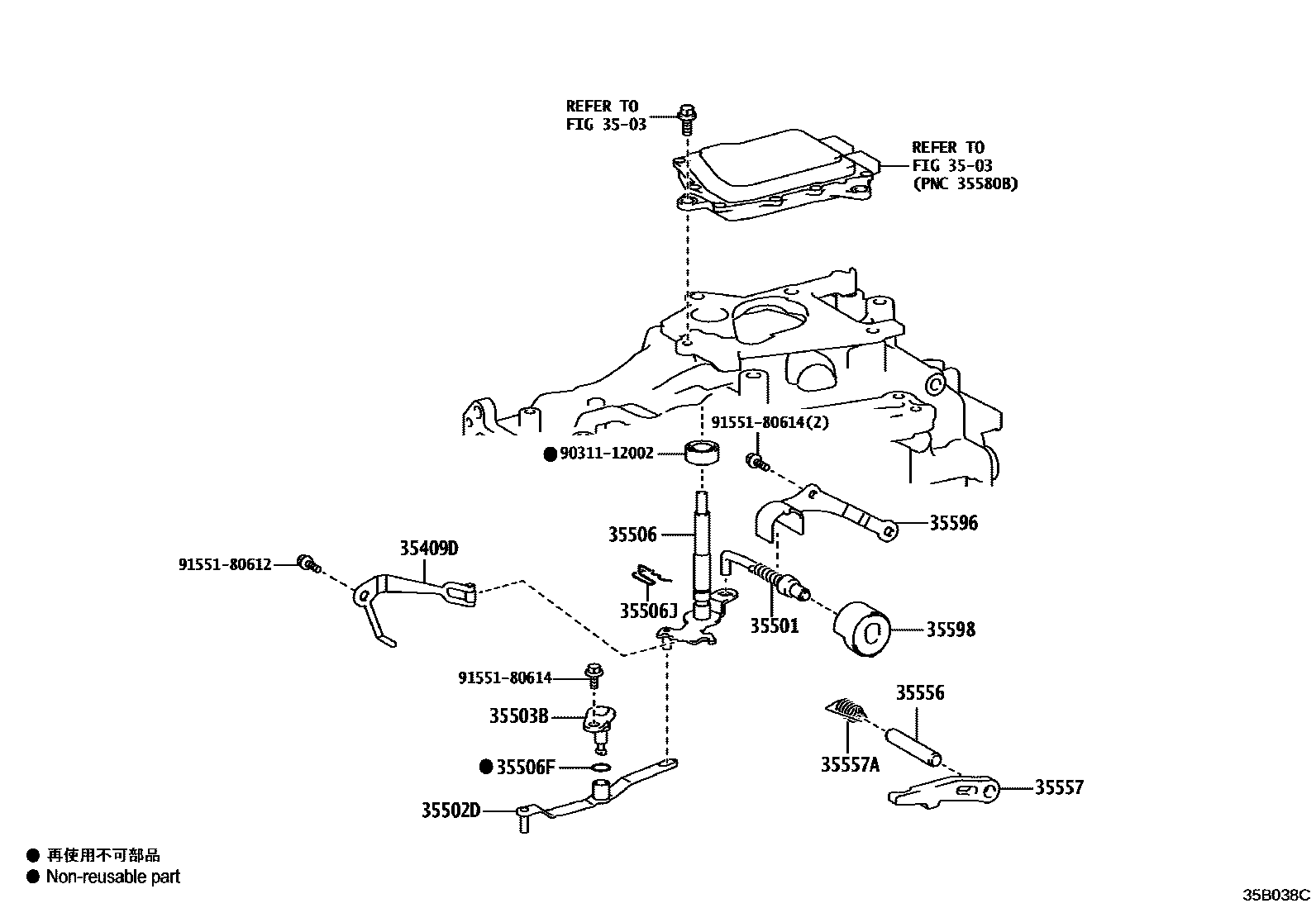

THROTTLE LINK & VALVE LEVER (ATM)

3503

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iAAZA2#,TAZA25¥400202111-202506

35501ROD SUB-ASSY, PARKING LOCK

main35501-33030iAAZA2#¥1,240202111-202506

main35501-48040iTAZA25¥1,210202111-202403

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-33010iAAZA2#¥230202111-202506

main35502-48010iTAZA25¥230202111-202403

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iTAZA25¥300202111-202506

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-78010iAAZA2#¥810202111-202506

main35506-78020iTAZA25¥850202111-202403

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iAAZA2#,TAZA25¥140202111-202506

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iTAZA25¥60202111-202506

35556SHAFT, PARKING LOCK PAWL

main35556-48040iAAZA2#,TAZA25202111-202506

35557PAWL, PARKING LOCK

main35557-33040iAAZA2#¥2,810202111-202506

main35557-48040iTAZA25¥2,810202111-202403

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iAAZA2#¥180202111-202506

35596PLATE, PAWL STOPPER

main35596-33020iAAZA2#202111-202506

main35596-48030iTAZA25¥380202111-202403

35598SLEEVE, PARKING LOCK

main35598-48040iAAZA2#¥770202111-202506

9031112002

main90311-12002¥270

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

16 parts on this diagram · 1 diagram in section
