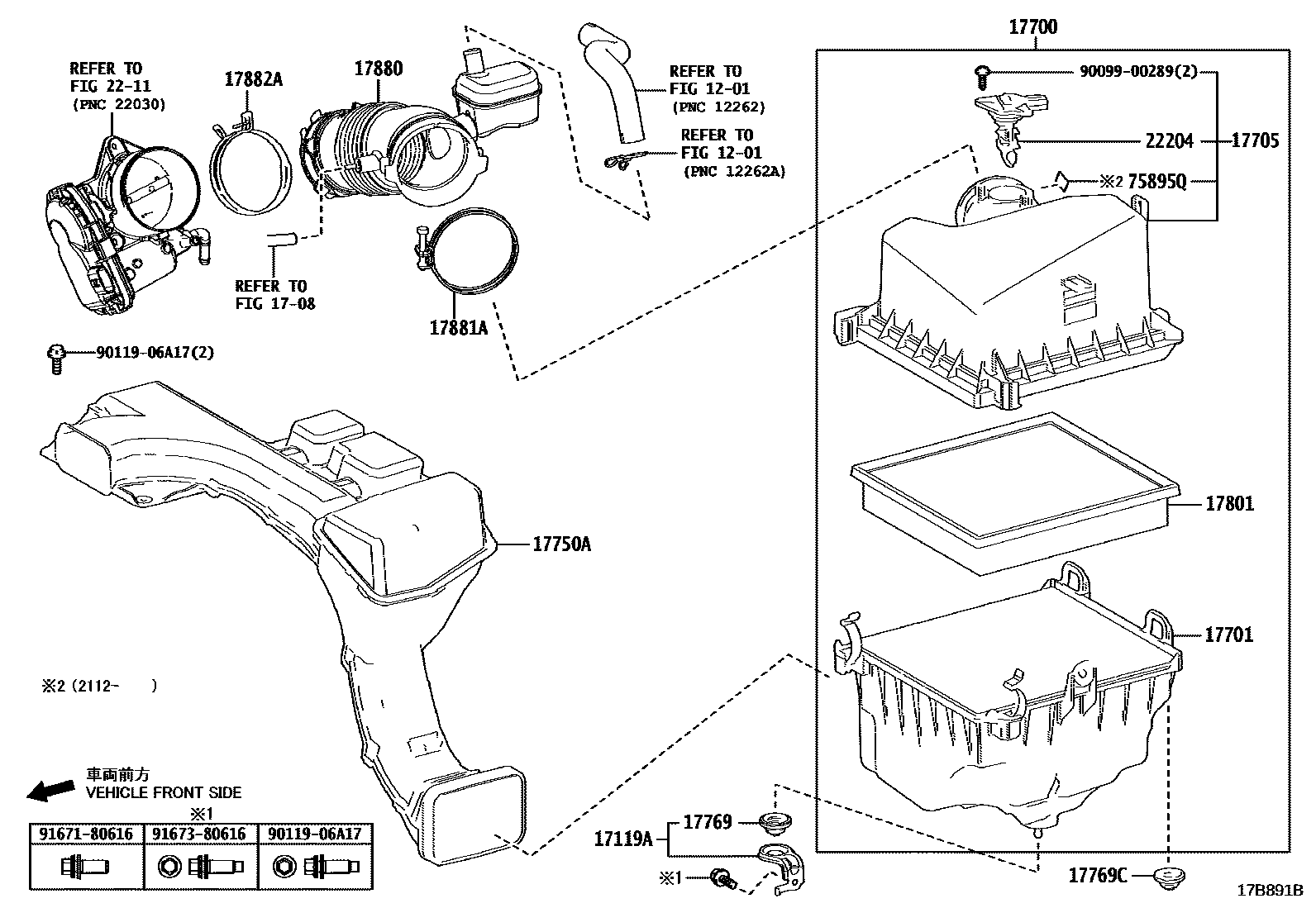

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

1708

17119ABRACKET, AIR CLEANER

main17119-25010iA25AFXS..AAZH2#202404

17700CLEANER ASSY, AIR

main17700-25151iA25AFKS..AAZA2#202404-202506

main17700-25171iA25AFXS..AAZH2#202111-202403

main17700-F0350iT24AFTS..TAZA25202404

17701CASE SUB-ASSY, AIR CLEANER

main17701-25101iA25AFKS..AAZA2#202404-202506

main17701-25111iA25AFXS..AAZH2#202111-202403

main17701-F0200iT24AFTS..TAZA25202404

17705CAP SUB-ASSY, AIR CLEANER

main17705-25050iA25AFKS..AAZA2#202404-202506

main17705-25070iA25AFXS..AAZH2#202111-202403

main17705-F0270iT24AFTS..TAZA25202111-202403

17750AINLET ASSY, AIR CLEANER

main17750-24010iA25AFKS..AAZA2#202111-202402

main17750-24031iA25AFKS..AAZA2#202412-202506

main17750-25080iA25AFXS..AAZH2#202111-202403

main17750-25090iT24AFTS..TAZA25202111-202403

17769SUPPORT, AIR CLEANER

main17769-25020iA25#..AAZA2#,AAZH2#202111-202403

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020×2iT24AFTS..TAZA25202404

main17769-25030×2iA25AFXS..AAZH2#202404

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25AFKS..AAZA2#202111-202403

(J)

main17801-77050iA25AFXS..AAZH2#202404

main17801-F0050iT24AFTS..TAZA25202404

(L)

17880HOSE ASSY, AIR CLEANER

main17880-25040iA25AFXS..AAZH2#202404

main17880-25050iA25AFKS..AAZA2#202111-202403

main17880-25060iT24AFTS..TAZA25202404

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AAZH2#202404

main96111-10880iT24AFTS..TAZA25202404

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AAZH2#202404

main90466-71001iA25AFKS..AAZA2#202404-202506

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25#..AAZA2#,AAZH2#202111-202403

75895QTAPE, MOULDING, NO.1

main75895-52050iAAZA2#202404-202506

9009900289

main90099-00289

9011906A17

main90119-06A17

9167180616

main91671-80616

9167380616

main91673-80616

20 parts on this diagram · 4 diagrams in section
