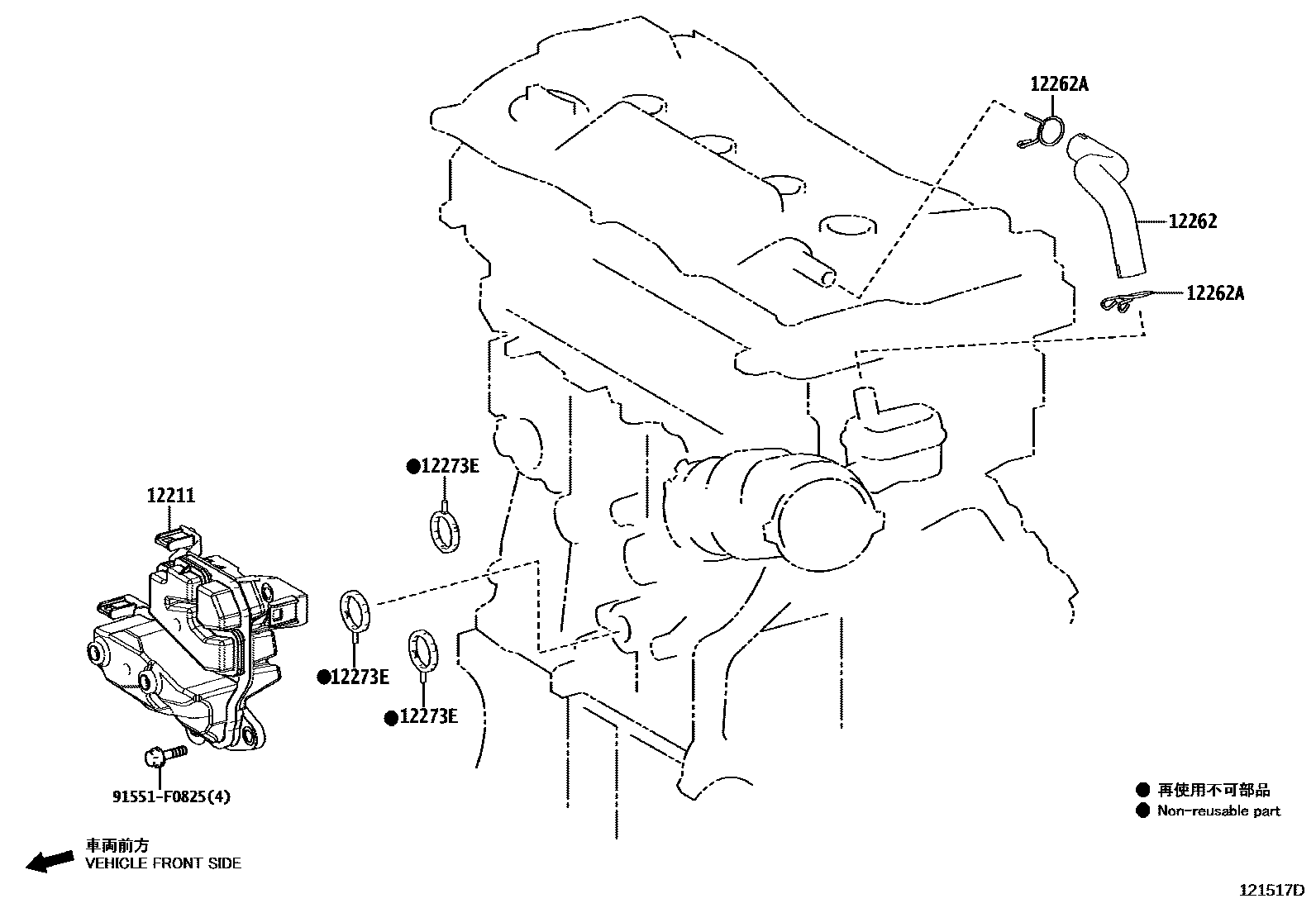

VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-25011iA25#..AAZA2#,AAZH2#202111-202301

12262HOSE, VENTILATION, NO.2

main12260-25010iT24AFTS..TAZA25202111-202403

main12262-25030iA25AFKS..AAZA2#202111-202506

main12262-25080iA25AFXS..AAZH2#202111-202403

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iA25#..AAZA2#,AAZH2#202111-202506

main90467-23002iT24AFTS..TAZA25202111-202403

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25#..AAZA2#,AAZH2#202111-202301

91551F0825

main91551-F0825

5 parts on this diagram · 3 diagrams in section
