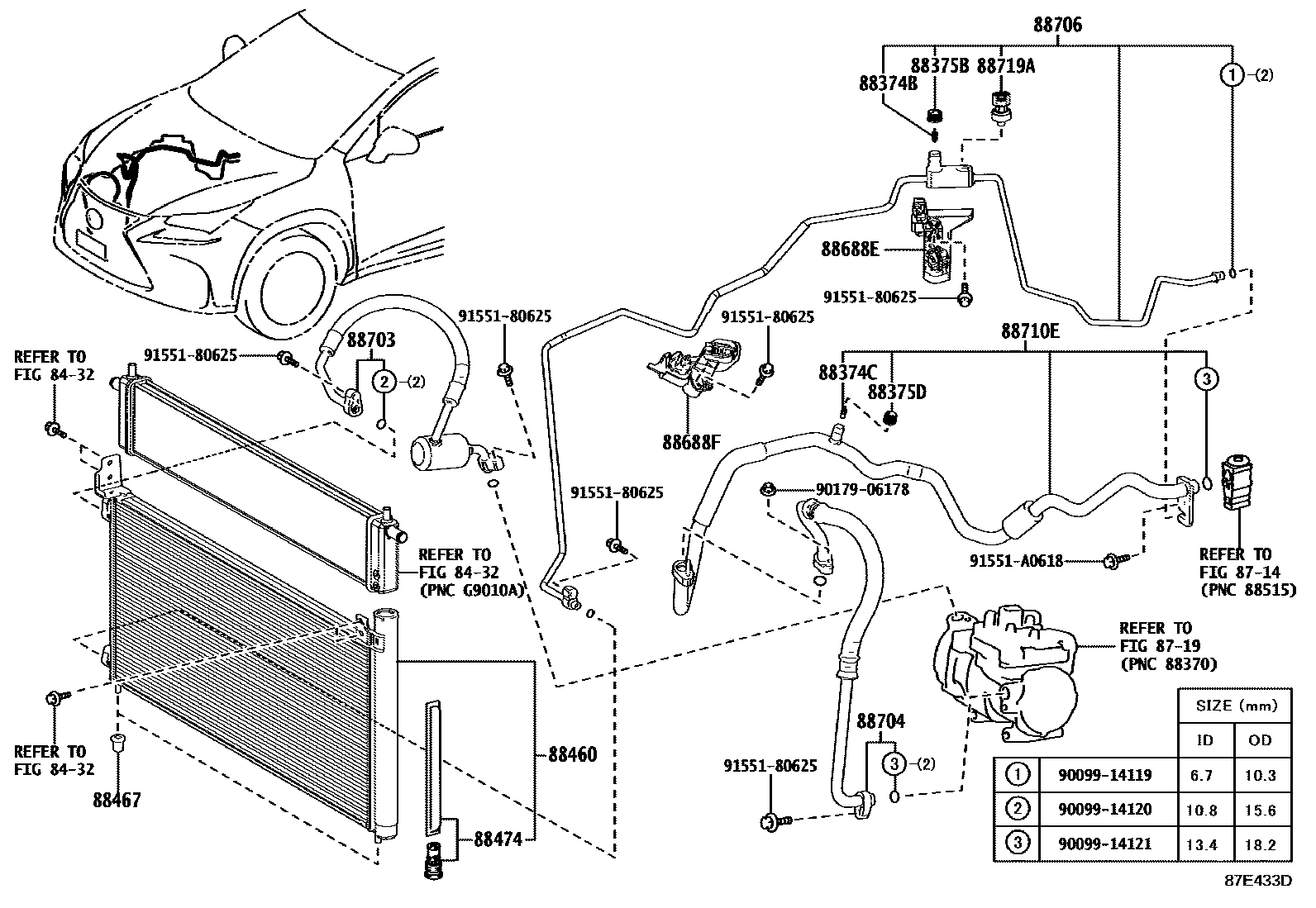

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAGZ1#,AYZ15201407-201709

88374CVALVE, SERVICE, NO.2

main88374-30010iAYZ10201407-201709

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAGZ1#,AYZ1#201407-202007

main88375-30320iAGZ1#,AYZ15202007

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAGZ1#,AYZ1#201407-202007

main88375-30310iAGZ1#,AYZ15202007

88460CONDENSER ASSY, COOLER

main88460-78010iAGZ1#201410-202007

main88460-78030iAYZ15201407-201709

main88460-78040iAGZ1#202007

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iAYZ1#201407-201709

88474DRYER, COOLER

main88474-12010iAGZ1#201410-201709

main88474-47020iAYZ15201407-201709

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-42510iAYZ10201407-201709

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-42520iAYZ10201407-201709

88703HOSE SUB-ASSY, DISCHARGE

main88703-48290iAYZ10201407-201902

main88703-78010iAGZ1#201410-201709

main88703-78040iAYZ15201903

88704HOSE SUB-ASSY, SUCTION

main88704-78010iAGZ1#201410-201709

main88704-78020iAYZ15201407-201902

sub88704-78021

main88704-78021iAYZ15201903

88706PIPE SUB-ASSY, LIQUID

main88706-78040iAGZ1#201410-201709

main88706-78040iAGZ1#201709-202007

TYPE A:REFER ILLUST.

main88706-78070iAYZ15201407-202007

main88706-78090iAGZ1#202007

main88706-78110iAYZ15202007

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88707-78020iAGZ1#201410-201709

main88707-78020iAGZ1#201709-202007

TYPE A:REFER ILLUST.

main88707-78060iAYZ15201407-202007

main88710-78130iAGZ1#202007

main88710-78140iAYZ15202007

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAYZ10201407-201709

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9017906178

main90179-06178

9155180625

main91551-80625

91551A0618

main91551-A0618

23 parts on this diagram · 4 diagrams in section
