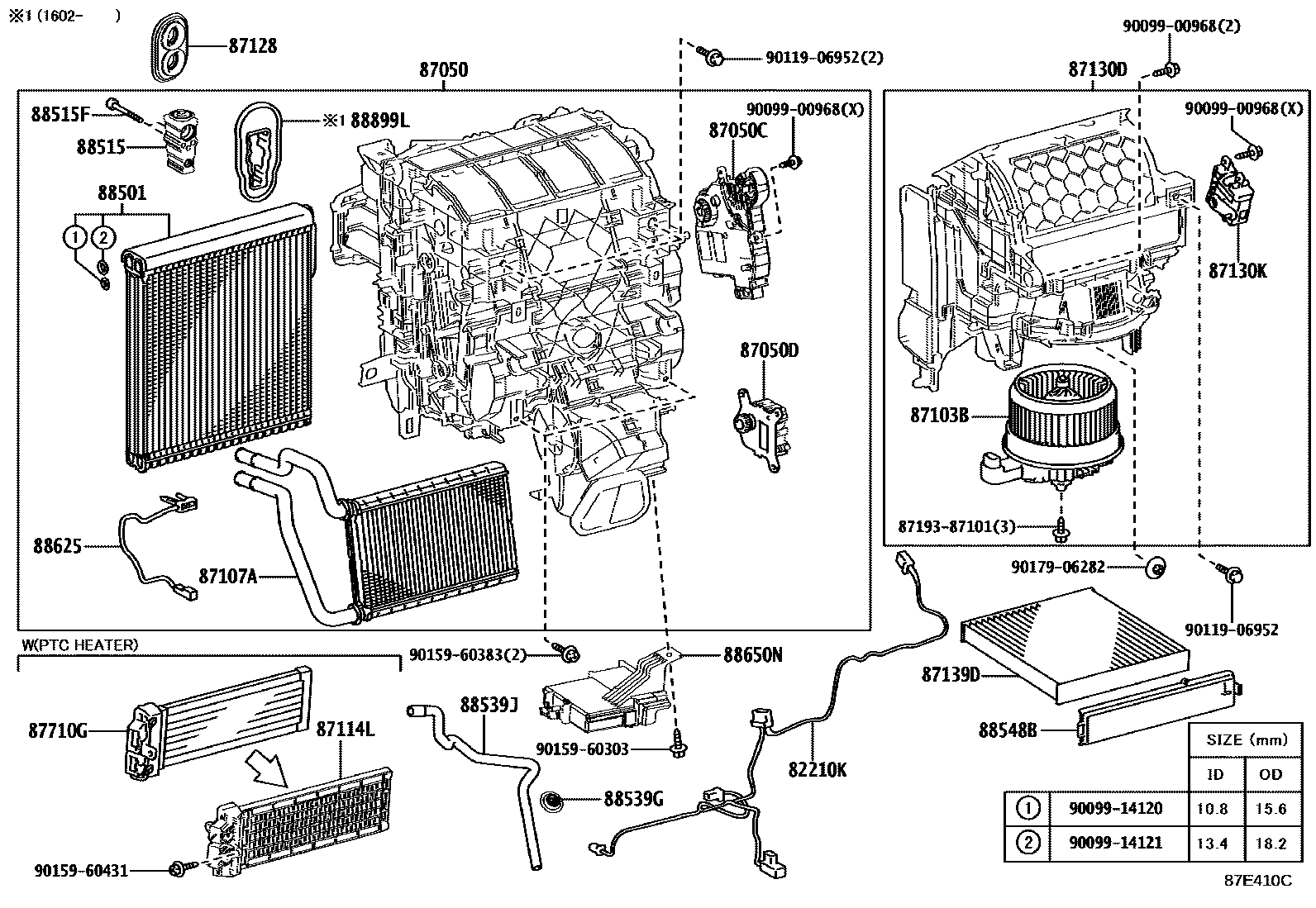

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-78010iAYZ10201407-201709

sub82212-78030

main82212-78030iAGZ1#,AYZ15201709

87050RADIATOR ASSY, AIR CONDITIONER

main87050-78040iAYZ15201407-202007

main87050-78100iAGZ1#201410-202007

main87050-78130iAYZ15202007-202109

main87050-78140iAGZ1#202007-202109

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iAYZ10201407-201709

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48180iAYZ10201407-201709

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-78010iAYZ10201407-201709

sub87103-78030

main87103-78030iAGZ1#,AYZ15201709

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-78010iAYZ10201407-201709

87114LCOVER, HEATER, NO.2

main87114-48110iAGZ1#201410-201709

87128GROMMET, HEATER

main87128-76010iAYZ10201407-201709

87130DBLOWER ASSY

main87130-78010iAYZ10201407-201709

sub87130-78030

main87130-78030iAGZ1#,AYZ15201709

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28240iAYZ10201407-201709

87139DELEMENT, AIR REFINER

main87139-50100iAGZ1#,AYZ1#201407-202109

87710GQUICK HEATER ASSY

main87710-48020iAGZ1#201709

PTC HEATER-WITH

main87710-48020iAYZ10201407-201709

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48340iAYZ15201407-202109

main88501-78040iAGZ1#202007-202109

main88501-78050iAGZ1#201410-202007

88515VALVE, COOLER EXPANSION

main88515-48110iAYZ10201407-202007

main88515-52130iAGZ1#,AYZ15202007

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iAYZ10201407-201709

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iAYZ10201407-201709

88539JHOSE, DRAIN COOLER

main88539-78010iAYZ10201407-201709

88548BCASE, AIR FILTER

main88548-42020iAYZ10201407-201709

88625THERMISTOR, COOLER, NO.1

main88620-28050iAYZ10201407-201709

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-78010iAGZ1#201410-201509

sub88650-78130

main88650-78020iAYZ1#201407-201509

sub88650-78140

main88650-78130iAGZ1#201509-201709

main88650-78140iAYZ15201509-201709

main88650-78170iAGZ1#202007

main88650-78200iAGZ1#201709-202007

main88650-78230iAYZ15202007

main88650-78240iAYZ15201709-202007

88899LPARTS, COOLING UNIT

main88899-78020iAYZ10201602-201709

8719387101

main87193-87101

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

30 parts on this diagram · 1 diagram in section
