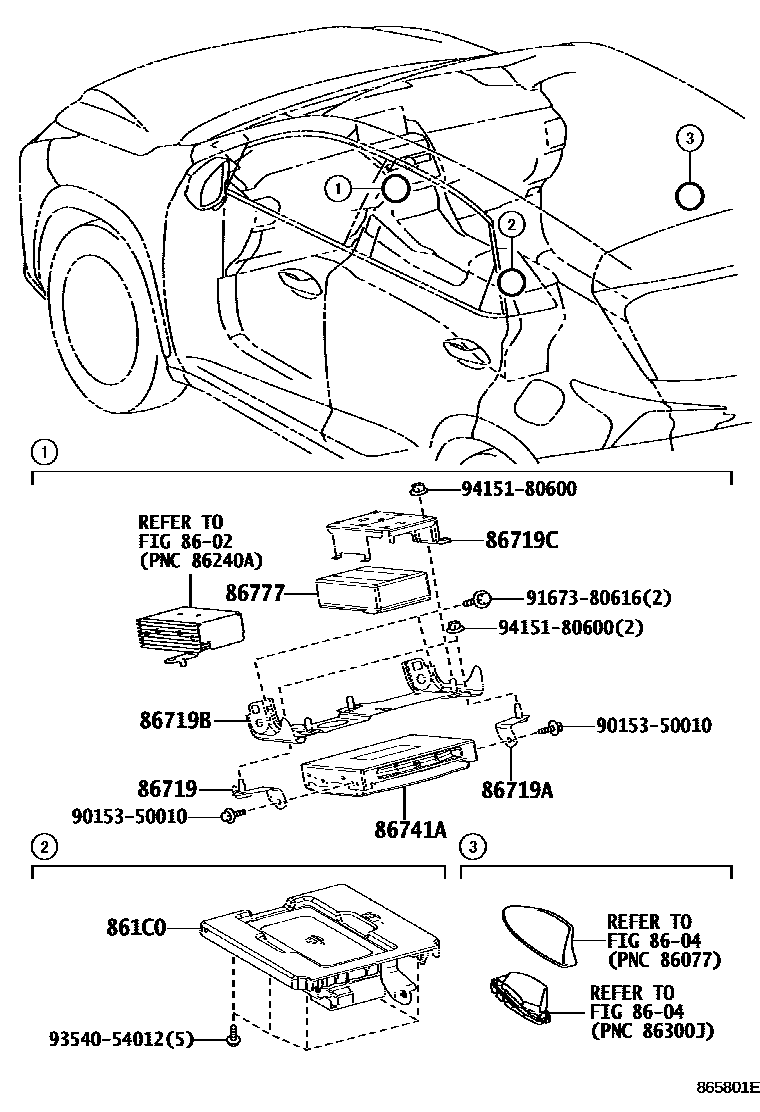

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

8602

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-78010

main861C0-78020

main861C0-78021

main861C0-78022

86719BRACKET, TELEPHONE

main86719-78010iAGZ1#,AYZ15201407-201709

86719ABRACKET, TELEPHONE NO.1

main86719-78020iAYZ10201407-201709

86719BBRACKET, TELEPHONE NO.2

main86719-78030iAYZ10201407-201709

main86719-78060iAGZ1#,AYZ15201709

86719CBRACKET, TELEPHONE NO.3

main86719-78040iAYZ10201407-201709

86741ATRANSCEIVER, TELEMATICS

main86740-78120iAGZ1#,AYZ15201709-201910

GUAM SPEC&DATA COMMUNICATION MODULE-WITHOUT

sub86740-F6010

main86740-78120iAGZ1#,AYZ15201709-201910

KOREA SPEC&DATA COMMUNICATION MODULE-WITHOUT

sub86740-F6010

main86741-33040iAGZ1#,AYZ1#201407-201509

MAYDAY SYSTEM-WITHOUT

sub86741-33041

main86741-42071iAGZ15,AYZ15202104

GUAM SPEC&DATA COMMUNICATION MODULE-WITHOUT

main86741-42071iAGZ15,AYZ15202104

KOREA SPEC&DATA COMMUNICATION MODULE-WITHOUT

main86741-48071iAGZ15,AYZ15201910-202103

KOREA SPEC&DATA COMMUNICATION MODULE-WITHOUT

sub86741-42071

main86741-48071iAGZ1#,AYZ15201910-202103

GUAM SPEC

sub86741-42071

main86741-48071iAGZ1#,AYZ15201910-202103

GUAM SPEC&DATA COMMUNICATION MODULE-WITHOUT

sub86741-42071

main86741-48071iAGZ1#,AYZ15201910-202103

KOREA SPEC

sub86741-42071

main86741-78040iAGZ1#,AYZ1#201509-201709

MAYDAY SYSTEM-WITHOUT

sub86741-53077

86777BATTERY, MAYDAY

main86777-76040iAYZ10201407-201709

9015350010

main90153-50010

9167380616

main91673-80616

9354054012

main93540-54012

9415180600

main94151-80600

13 parts on this diagram · 3 diagrams in section
