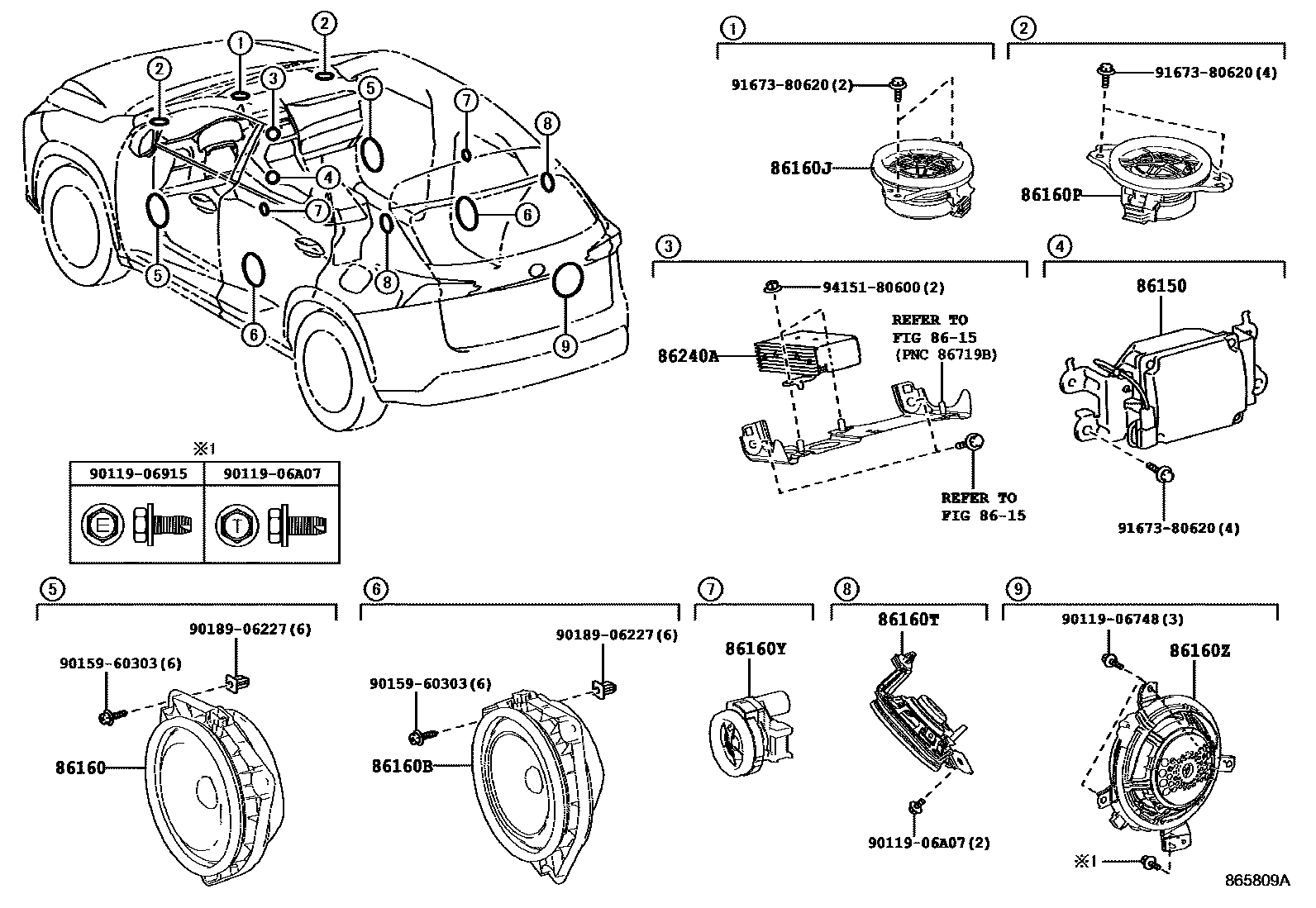

SPEAKER

8615

86150SPEAKER ASSY, W/BOX, NO.1

main86150-78010

main86150-78070

86160SPEAKER ASSY, FRONT NO.1

main86160-78060iAYZ10201407-201709

86160BSPEAKER ASSY, REAR

main86160-78040iAYZ10201407-201709

86160JSPEAKER ASSY, FRONT NO.3

86160PSPEAKER ASSY, FRONT NO.2

main86160-78030iAYZ10201407-201709

86160TSPEAKER ASSY, REAR HEADER

86160YSPEAKER ASSY, REAR NO.2

main86160-52340iAYZ10201407-201709

86160ZSPEAKER ASSY, REAR NO.3

86240AEQUALIZER ASSY,STEREO COMPONENT

9011906748

main90119-06748

9011906915

main90119-06915

9011906A07

main90119-06A07

9015960303

main90159-60303

9018906227

main90189-06227

9167380620

main91673-80620

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
