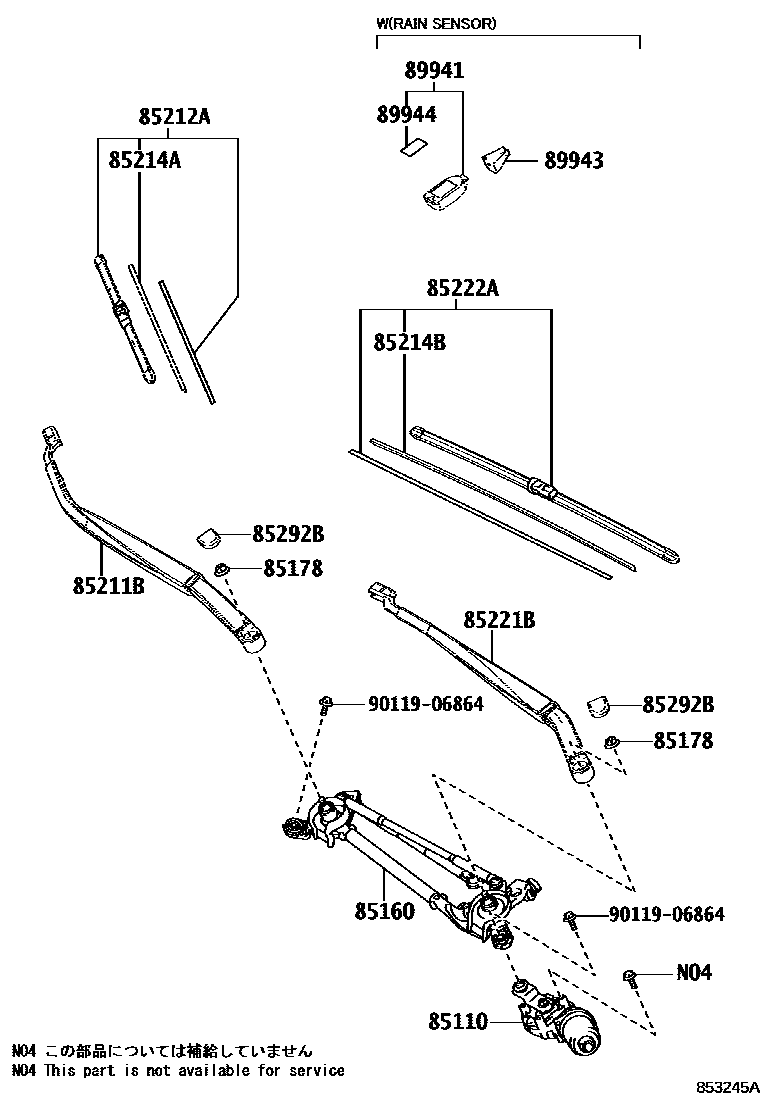

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-78010iAYZ10201407-201709

85160LINK ASSY, WINDSHIELD WIPER

main85150-78010iAYZ10201407-201709

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAGZ1#,AYZ1#201407-201709

85211BARM, FRONT WIPER, RH

main85211-78010iAGZ1#,AYZ1#201407-201709

85212ABLADE, FR WIPER, RH

main85212-78010iAGZ1#,AYZ1#201407-201601

sub85212-78011

main85212-78011iAGZ1#,AYZ1#201602-202109

85214ARUBBER, WIPER, RH

main85214-78010iAGZ1#,AYZ1#201407-201709

85214BRUBBER, WIPER, LH

main85214-78020iAGZ1#,AYZ1#201407-201709

85221BARM, FRONT WIPER, LH

main85221-78010iAGZ1#,AYZ1#201407-201709

85222ABLADE, FR WIPER, LH

main85222-78010iAGZ1#,AYZ1#201407-201504

sub85222-78011

main85222-78011iAGZ1#,AYZ1#201505-201601

sub85222-78012

main85222-78012iAGZ1#,AYZ1#201602-202109

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAGZ1#,AYZ1#201407-201709

89941SENSOR, RAIN

main89941-52010

89943COVER, RAIN SENSOR

main89943-78010

89944TAPE, RAIN SENSOR

main89944-42010

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
