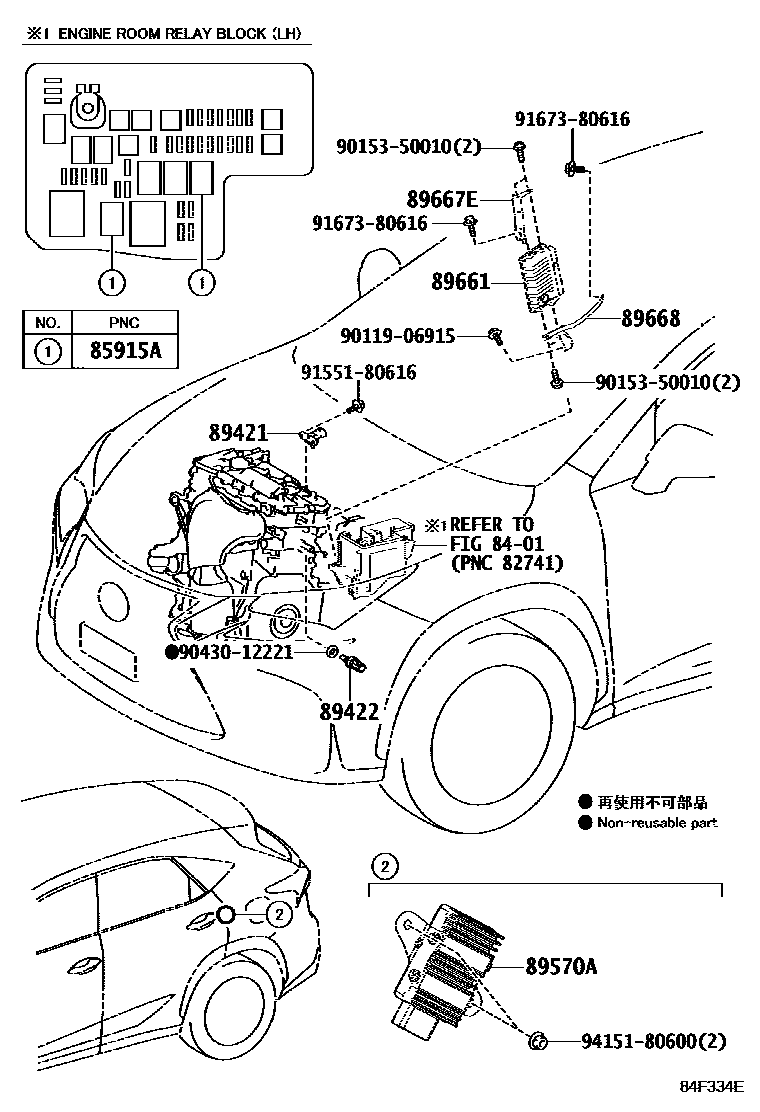

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85915ARELAY, MAIN

main90987-02027iAYZ10201407-201709

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAYZ1#201407-201709

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAGZ1#,AYZ15201407-201709

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-78010iAGZ1#,AYZ15201407-201709

89661COMPUTER, ENGINE CONTROL

main89661-78050iAGZ10201410-201507

sub89661-78051

main89661-78051iAGZ10201508-201511

sub89661-78052

main89661-78052iAGZ10201512-201606

main89661-78053iAGZ10201606-201609

sub89661-78054

main89661-78054iAGZ10201610-201705

main89661-78055iAGZ10201706-201709

DENSO

sub89661-78056

main89661-78060iAGZ15201410-201507

sub89661-78061

main89661-78061iAGZ15201508-201602

sub89661-78062

main89661-78062iAGZ15201603-201606

main89661-78063iAGZ15201606-201609

sub89661-78064

main89661-78064iAGZ15201610-201705

main89661-78065iAGZ15201706-201709

DENSO

sub89661-78066

main89661-78070iAGZ15201410-201507

F SPORT*(F)

sub89661-78071

main89661-78071iAGZ15201508-201602

F SPORT*(F)

sub89661-78072

main89661-78072iAGZ15201603-201606

F SPORT*(F)

main89661-78073iAGZ15201606-201609

F SPORT*(F)

sub89661-78074

main89661-78074iAGZ15201610-201705

F SPORT*(F)

main89661-78075iAGZ15201706-201709

DENSO,F SPORT*(F)

sub89661-78076

main89661-78190iAYZ1#201407-201609

sub89661-78191

main89661-78350iAYZ15201609-201709

main89661-78510iAYZ15201709-201805

DENSO

main89661-78600iAGZ10201709-201805

DENSO

sub89661-78601

main89661-78610iAGZ15201709-201805

DENSO

sub89661-78611

main89661-78620iAGZ15201709-201805

DENSO,F SPORT

sub89661-78621

main89661-78720iAGZ10201805-201812

DENSO

sub89661-78721

main89661-78721iAGZ10201901-201902

DENSO

sub89661-78722

main89661-78722iAGZ10201903-201905

DENSO

main89661-78730iAGZ15201805-201812

DENSO

sub89661-78731

main89661-78731iAGZ15201901-201902

DENSO

sub89661-78732

main89661-78731iAGZ15201903-201905

DENSO,KOREA SPEC

sub89661-78732

main89661-78732iAGZ15201903-201905

DENSO

main89661-78740iAGZ15201805-201812

DENSO,F SPORT

sub89661-78741

main89661-78741iAGZ15201901-201902

DENSO,F SPORT

sub89661-78742

main89661-78741iAGZ15201903-201905

DENSO,KOREA SPEC&F SPORT

sub89661-78742

main89661-78742iAGZ15201903-201905

DENSO,F SPORT

main89661-78770iAYZ15201805-201905

DENSO

main89661-78890iAYZ15201905-202007

DENSO

main89661-78B10iAGZ10201905-201911

DENSO

sub89661-78B11

main89661-78B11iAGZ10201912-202007

DENSO

sub89661-78B12

main89661-78B20iAGZ15201905-201911

DENSO

sub89661-78B21

main89661-78B21iAGZ15201912-202007

DENSO

sub89661-78B22

main89661-78B30iAGZ15201905-201911

DENSO,F SPORT

sub89661-78B31

main89661-78B31iAGZ15201912-202007

DENSO,F SPORT

sub89661-78B32

main89661-78F20iAGZ10202007-202109

DENSO

main89661-78F30iAGZ15202007-202109

DENSO

main89661-78F40iAGZ15202007-202109

DENSO,F SPORT

main89661-78G10iAYZ15202007-202109

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42060iAYZ10201407-202109

main89667-78010iAGZ1#201410-202109

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-78010iAGZ1#201410-202109

main89668-78020iAYZ10201407-202109

9011906915

main90119-06915

9015350010

main90153-50010

9043012221

main90430-12221

9155180616

main91551-80616

9167380616

main91673-80616

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
