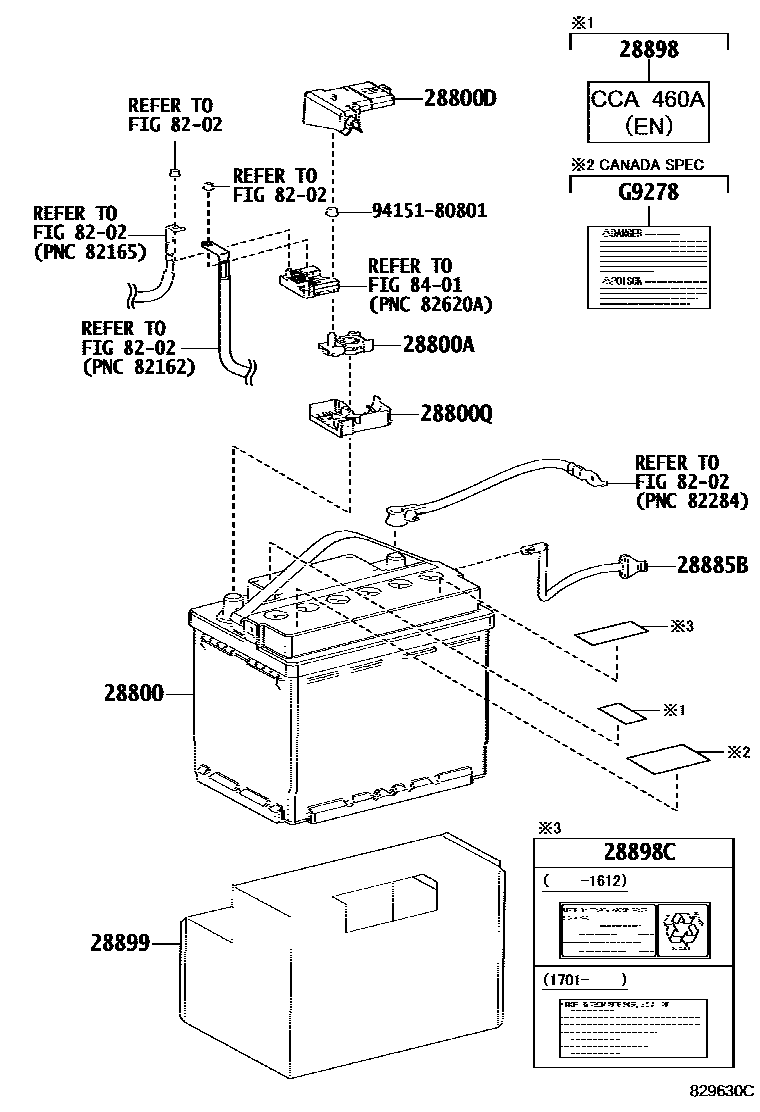

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1

28800BATTERY

main28800-36130i2ARFXE..AYZ1#201407-201507

LN2

main28800-36131i2ARFXE..AYZ1#201507-201709

LN2

sub28800-36132

main28800-38080i8ARFTS..AGZ1#201410-201709

80D26L

sub28800-38081

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i2ARFXE..AYZ15201407-201709

main90982-05062i8ARFTS..AGZ1#201709

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i8ARFTS..AGZ1#201410-201709

main82821-78010i2ARFXE..AYZ10201407-201608

28800QCOVER, CONNECTOR(FOR BATTERY)

main82817-78220i2ARFXE..AYZ15201709

28885BHOSE, BATTERY

main28885-36060i2ARFXE..AYZ10201407-201608

28898PLATE, BATTERY

main28898-36010i2ARFXE..AYZ10201407-201608

28898CPLATE, BATTERY

main28898-62010supersedes 28898-62010i8ARFTS..AGZ1#201407-201510

KOREA SPEC

sub28898-20020

28899INSULATOR, BATTERY

main28899-36050i2ARFXE..AYZ15201407-201709

main28899-36060i8ARFTS..AGZ1#201410-201709

8202

8401

G9278LABEL, BATTERY CAUTION, NO.3

main28897-46020iAGZ15,AYZ15201709

CANADA SPEC

9415180801

main94151-80801

12 parts on this diagram · 5 diagrams in section
