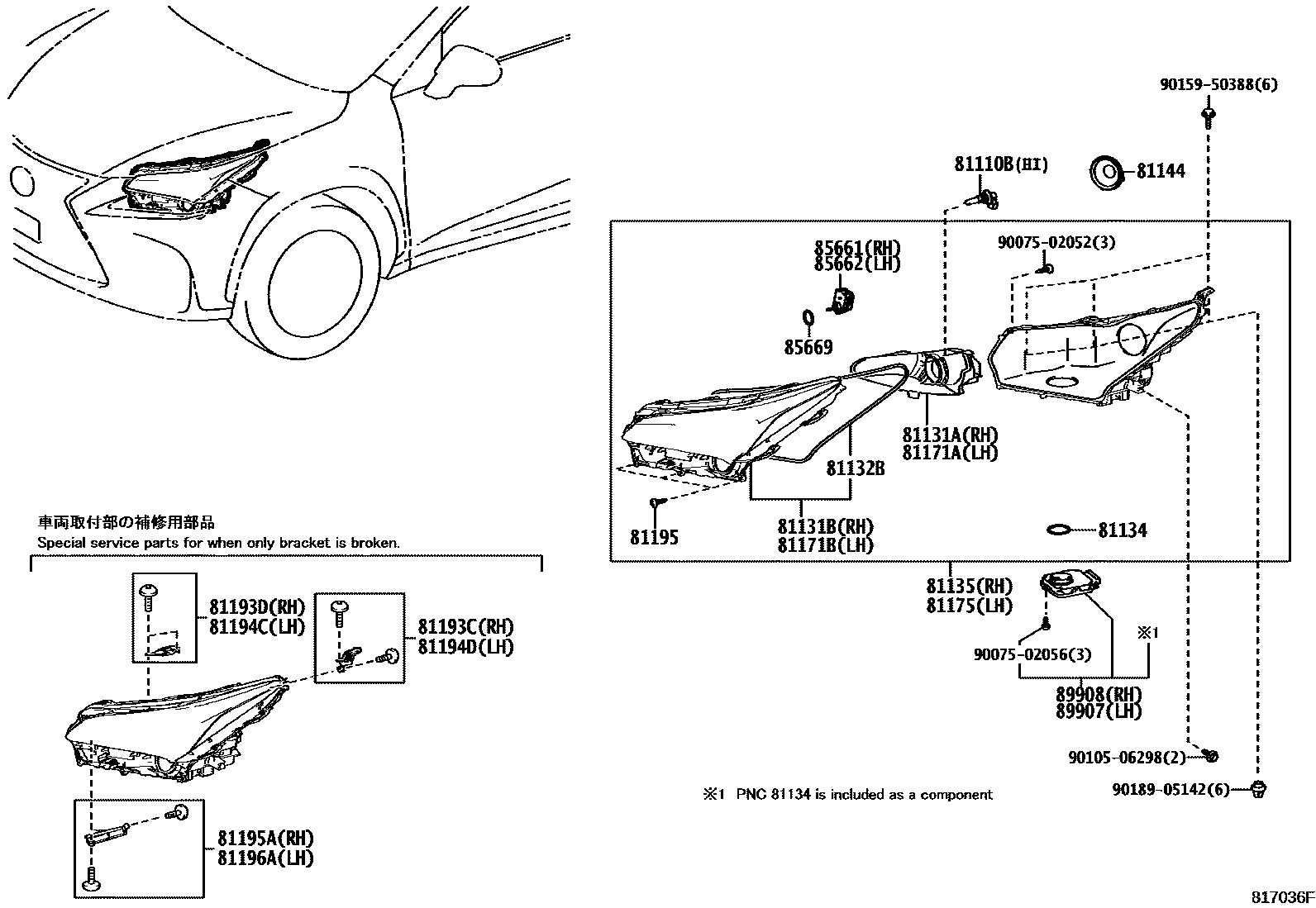

HEADLAMP

0001 1KOREA SPEC & HIGH BEAM(HALOGE0002 1KOREA SPEC & HIGH BEAM(LED) 0003 1HIGH BEAM(HALOGEN) 0004 1HIGH BEAM(LED) 0005 1KOREA SPEC & LED(PROJECTOR) 0006 1LED(PROJECTOR) 0007 1KOREA SPEC,LED(TRINOCULAR FUL0008 1LED(TRINOCULAR FULL LED)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iAGZ1#,AYZ1#201410-201709

12V65W(SAE),60W(ECE)

81131AUNIT, HEADLAMP, RH

81131BHEAD LAMP LENS, RH

81132BGASKET, HEADLAMP LENS

81134GASKET, HEADLAMP

main90075-23003

81135UNIT ASSY, HEADLAMP, RH

main81140-78030iAYZ10201410-201709

main81140-78190iAGZ1#,AYZ15201709

81144COVER, HEADLAMP, NO.1

main81135-3A150iAYZ10201410-201709

81171AUNIT, HEADLAMP, LH

81171BHEAD LAMP LENS, LH

81175UNIT ASSY, HEADLAMP, LH

main81070-78030iAYZ10201410-201709

main81070-78190iAGZ1#,AYZ15201709

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-78010iAYZ10201407-201709

81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH

main81193-78030iAYZ10201407-201709

81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH

main81194-78030iAYZ10201407-201709

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-78010iAYZ10201407-201709

81195SCREW, HEADLAMP

main81193-78020

main90075-02060

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81193-78020iAYZ10201407-201709

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81194-78020iAYZ10201407-201709

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020

main85661-48050

main85661-48060

85662MOTOR, HEADLAMP LEVELING, LH

main85691-48010

main85661-12020

main85661-48050

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120

89907COMPUTER SUB-ASSY, HEADLAMP, LH

main89907-78050

main89907-78051

main89907-78060

main89907-78061

main89907-78090

main89907-78091

main89907-78160

main81056-78200

main81056-78220

main81056-78250

89908COMPUTER SUB-ASSY, HEADLAMP, RH

main89908-78050

main89908-78051

main89908-78060

main89908-78061

main89908-78090

main89908-78091

main89908-78160

main81016-78200

main81016-78220

main81016-78250

9007502052

main90075-02052

9007502056

main90075-02056

9010506298

main90105-06298

9015950388

main90159-50388

9018905142

main90189-05142

27 parts on this diagram · 8 diagrams in section
