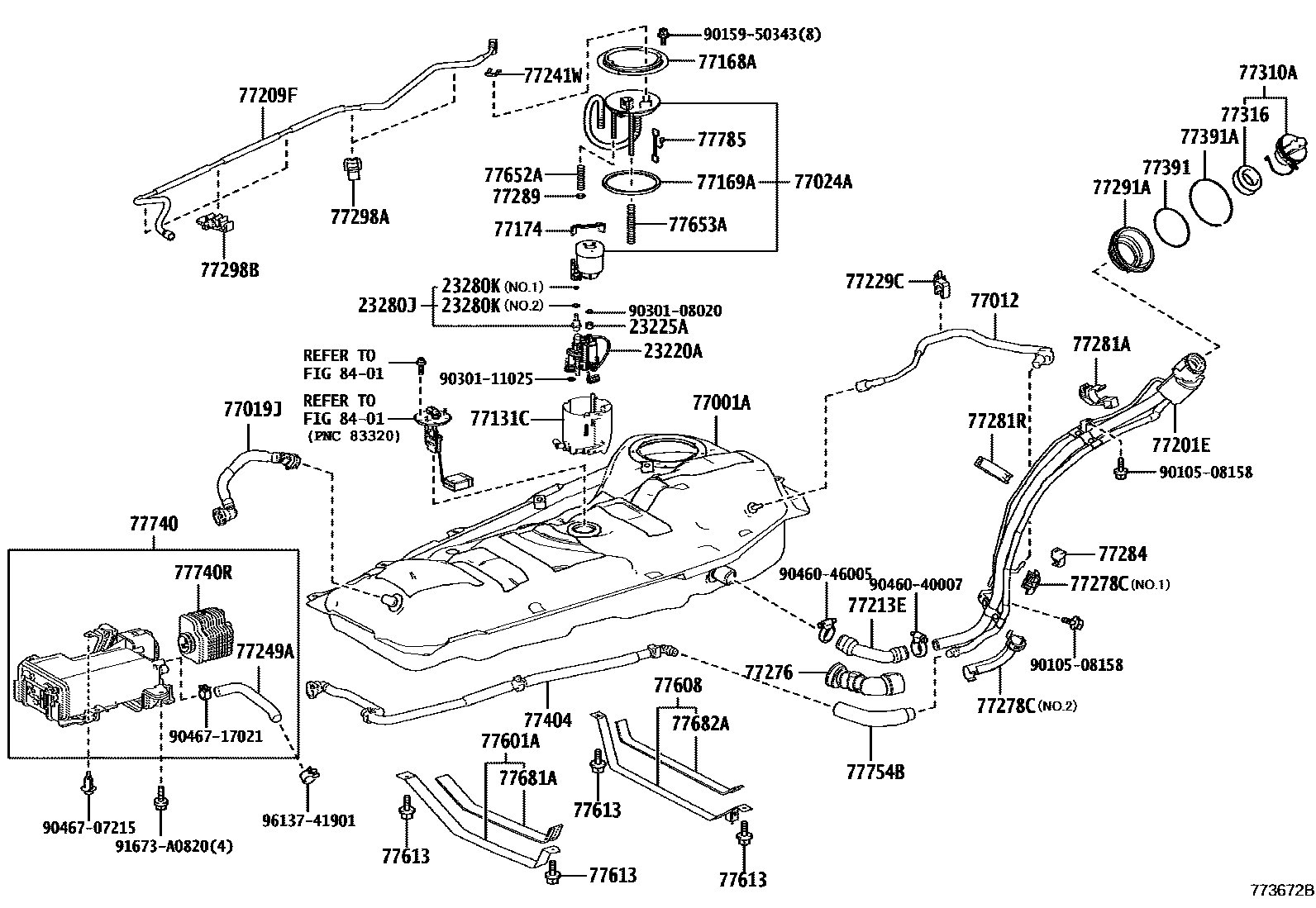

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77001ATANK SUB-ASSY, FUEL
sub77001-42281
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77024APLATE SUB-ASSY, FUEL SUCTION
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77276PROTECTOR, FUEL HOSE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77284CLAMP, FUEL TUBE
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77298ACLAMP, FUEL TUBE, NO.4
77298BCLAMP, FUEL TUBE, NO.4
PNC 77001A=TYPE B
PNC 77001A=TYPE A
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77608BAND SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77653ACUSHION, FUEL TANK, NO.3
77682ASEAT, FUEL TANK BAND, NO.2
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
8401
9010508158
main90105-08158
9015950343
main90159-50343
9030108020
main90301-08020
9030111025
main90301-11025
9046040007
main90460-40007
9046046005
main90460-46005
9046707215
main90467-07215
9046717021
main90467-17021
91673A0820
main91673-A0820
9613741901
main96137-41901
54 parts on this diagram · 7 diagrams in section
