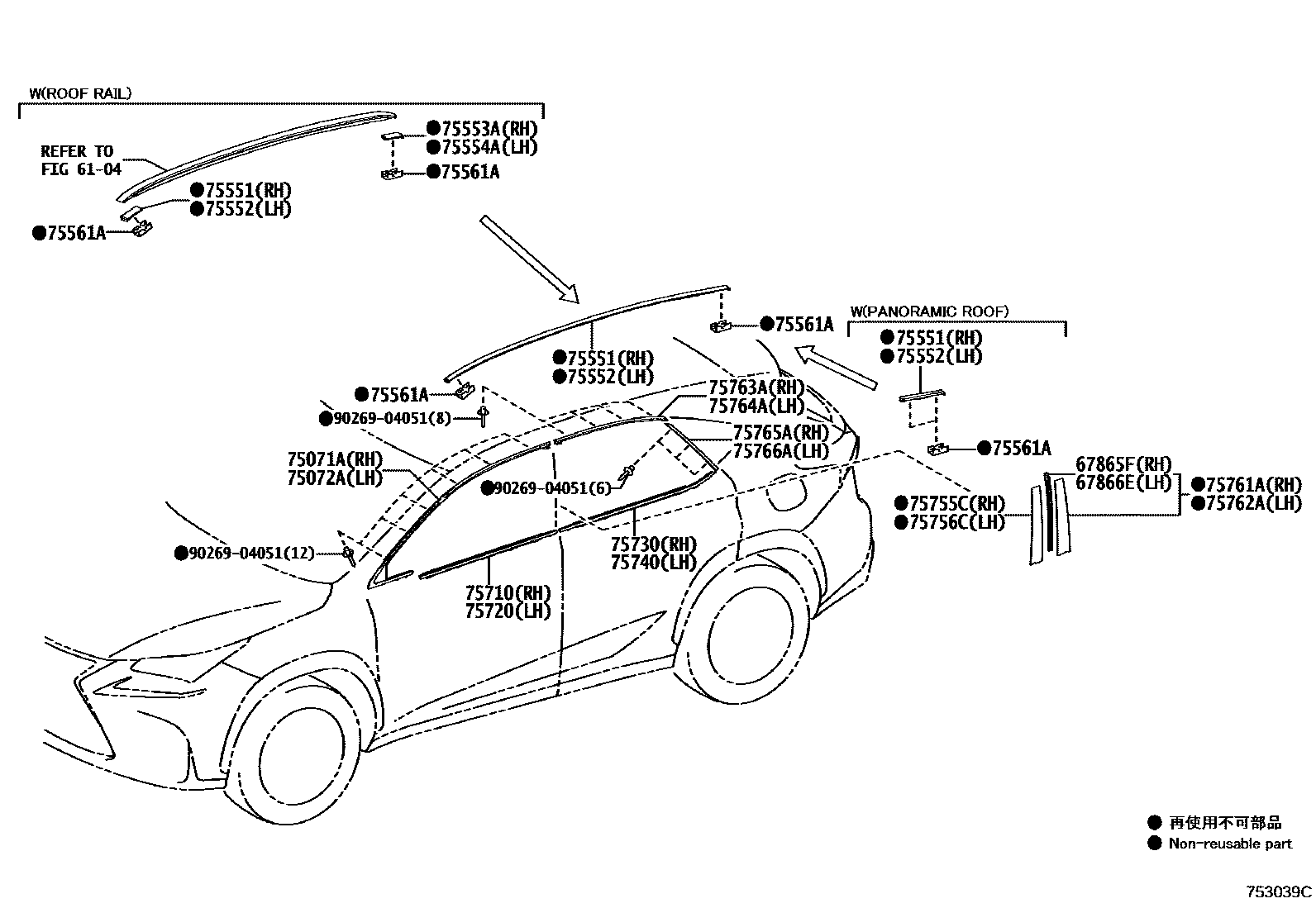

SIDE MOULDING
6104
67865FWEATHERSTRIP, CENTER PILLAR UPPER END, RH
67866EWEATHERSTRIP, CENTER PILLAR UPPER END, LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
MATERIAL BLACK
SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212 ,4W7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75552MOULDING, ROOF DRIP SIDE FINISH, LH
MATERIAL BLACK
SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
BLACK,212 ,4W7
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212 ,4W7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212 ,4W7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
9026904051
23 parts on this diagram · 2 diagrams in section
