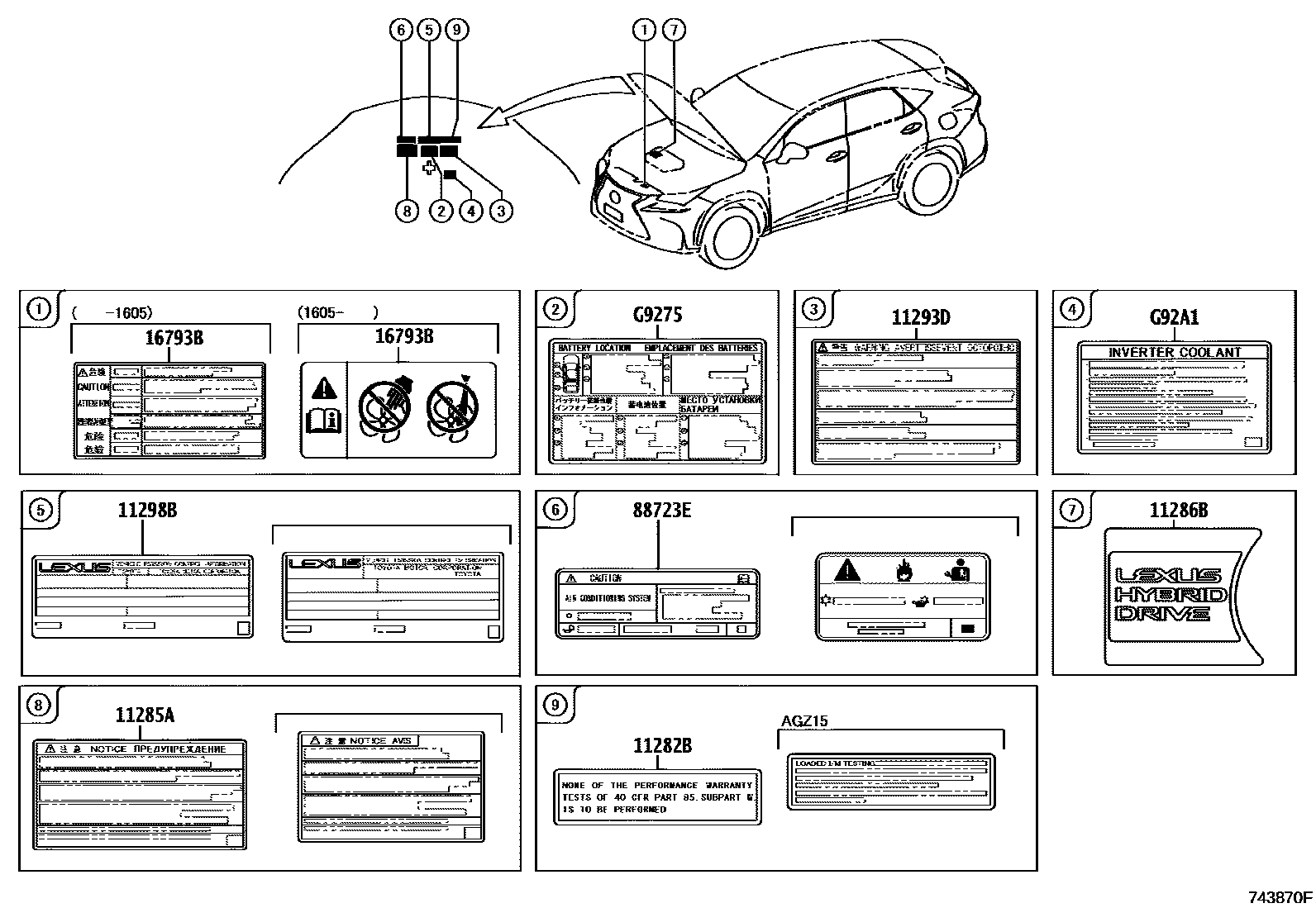

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11282BLABEL, LOADED TESTING CAUTION

main11282-21010i2ARFXE..AYZ15201709-202007

main11282-74010i8ARFTS..AGZ15201410-201709

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-36040i8ARFTS..AGZ1#201410-201709

main11285-37060i2ARFXE..AYZ15201407-201709

11286BPLATE, ENGINE SPECIFICATION

main11286-36010i2ARFXE..AYZ15201709

11293DLABEL, ENGINE CAUTION

main11293-36070i2ARFXE..AYZ10201407-201608

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-36181i2ARFXE..AYZ1#201407-201509

main11298-36182i2ARFXE..AYZ10201509-201608

main11298-36183i2ARFXE..AYZ15201609-201709

main11298-36184i2ARFXE..AYZ15201709-201805

main11298-36185i2ARFXE..AYZ15201805-201905

main11298-36186i2ARFXE..AYZ15201905-202007

main11298-36187i2ARFXE..AYZ15202007

main11298-36280i8ARFTS..AGZ1#201709-201805

main11298-36390i8ARFTS..AGZ1#201410-201509

main11298-36440i8ARFTS..AGZ1#201805-201905

main11298-36441i8ARFTS..AGZ1#201905-202007

main11298-36442i8ARFTS..AGZ1#202007

main11298-36510i8ARFTS..AGZ1#201509-201609

main11298-36511i8ARFTS..AGZ1#201609-201709

16793BLABEL, COOLING FAN INFORMATION

main16793-31040i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201511

main16793-36030i2ARFXE,8ARFTS..AGZ1#,AYZ15201809

main16793-36050i2ARFXE,8ARFTS..AGZ1#,AYZ1#201605-201709

main16793-37050i2ARFXE,8ARFTS..AGZ1#,AYZ1#201512-201604

88723ELABEL, COOLER SERVICE CAUTION

main88723-30210supersedes 88723-78070iAYZ15201407-201709

main88723-42080iAGZ1#201410-201709

main88723-78060iAGZ1#202007

G9275LABEL, BATTERY CAUTION, NO.1

mainG927548050iAYZ15201407-201709

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAYZ10201407-201608

9 parts on this diagram · 3 diagrams in section
