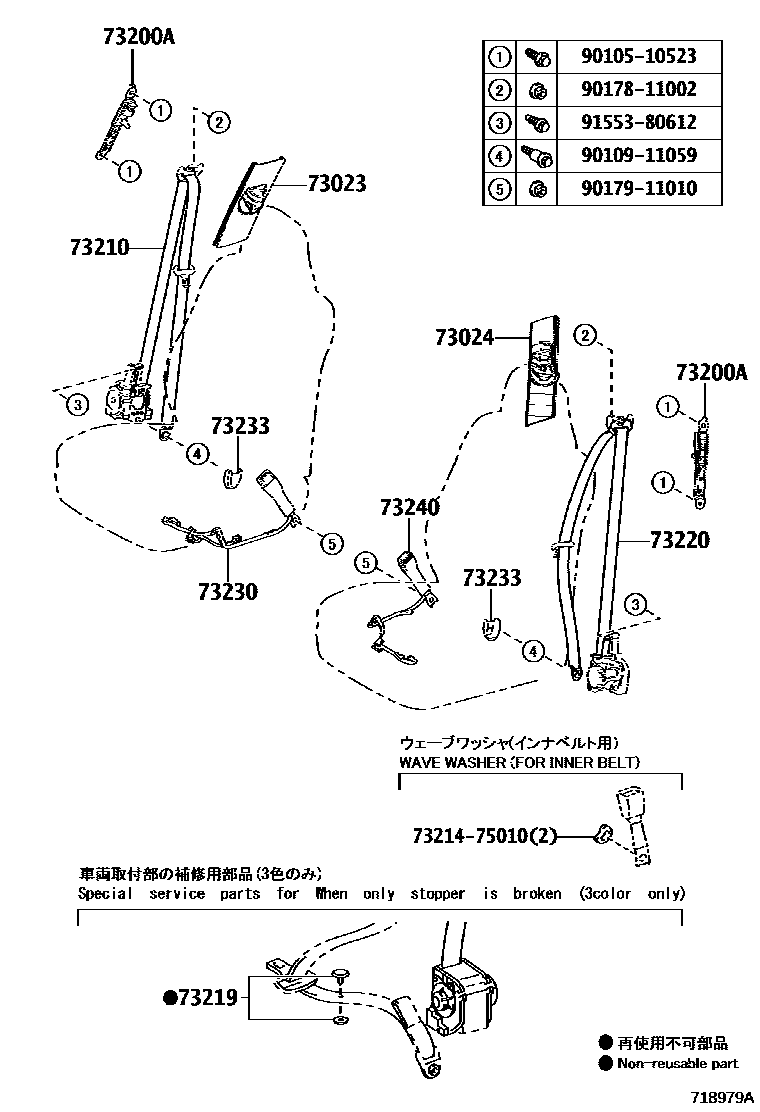

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM0#,2#,3#,4#,6#,7#
ECRU,TRIM0#,2#,3#,4#,5#
ECRU,TRIM0#,2#,30,31,32,33,4#,6#,7#
BLACK,TRIM05,06,26,27,28,36,37,5#
BLACK,TRIM8#
BLACK,TRIM9#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
ECRU,TRIM0#,2#,3#,4#,6#,7#
ECRU,TRIM0#,2#,3#,4#,5#
ECRU,TRIM0#,2#,30,31,32,33,4#,6#,7#
BLACK,TRIM8#
BLACK,TRIM9#
BLACK,TRIM05,06,26,27,28,36,37,5#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/ECRU,TRIM0#,2#,3#,4#,5#
BLACK/BLACK,TRIM9#
BLACK/ECRU,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#
BLACK/ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK/BLACK,TRIM8#
BLACK/BLACK,TRIM05,06,26,27,28,36,37,51,52
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/ECRU,TRIM0#,2#,3#,4#,5#
BLACK/BLACK,TRIM9#
BLACK/ECRU,TRIM0#,2#,3#,4#,5#
BLACK/BLACK,TRIM9#
BLACK/ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK/ECRU,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#
BLACK/BLACK,TRIM8#
BLACK/BLACK,TRIM05,06,26,27,28,36,37,51,52
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM0#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,5#,9#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#,9#
7321475010PLATE, FRONT SEAT BELT ANCHOR
9010510523
9010911059
9017811002
9017911010
9155380612
15 parts on this diagram · 2 diagrams in section
