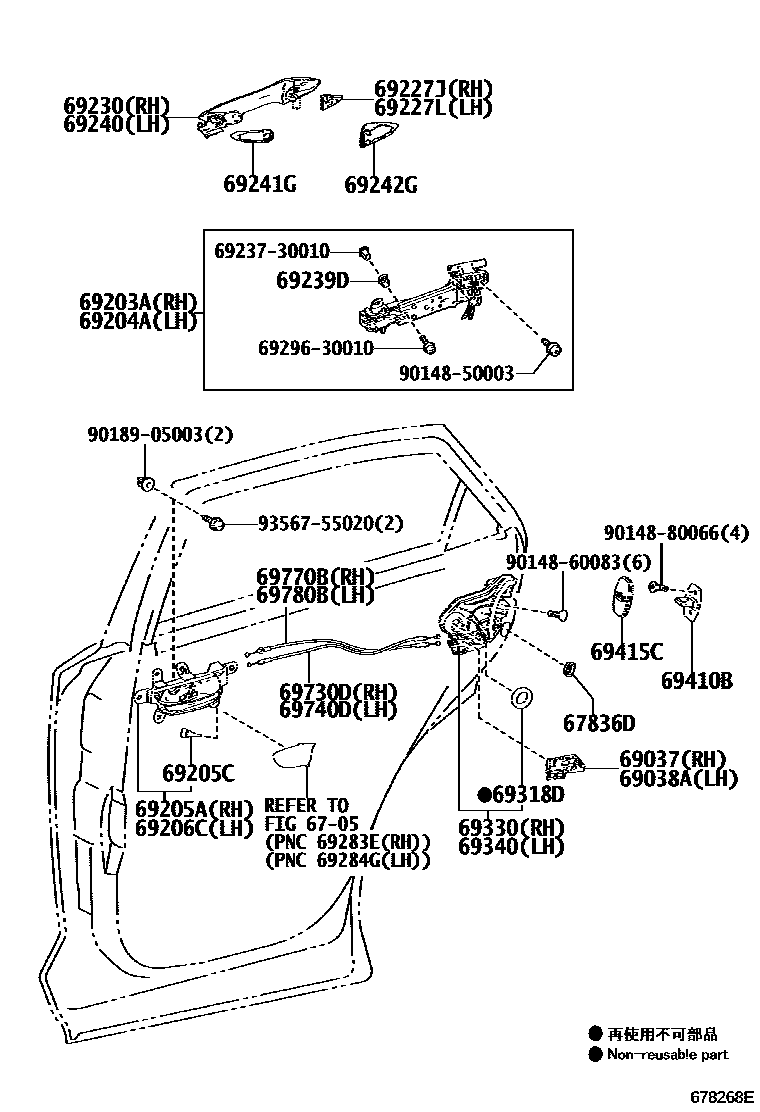

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,20,21,22,23,3#,4#,5#
BLACK,TRIM0#,20,21,22,23,3#,4#,5#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,8#,9#
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,20,21,22,23,3#,4#,5#
BLACK,TRIM0#,20,21,22,23,3#,4#,5#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,8#,9#
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SONIC QUARTZ,085
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
