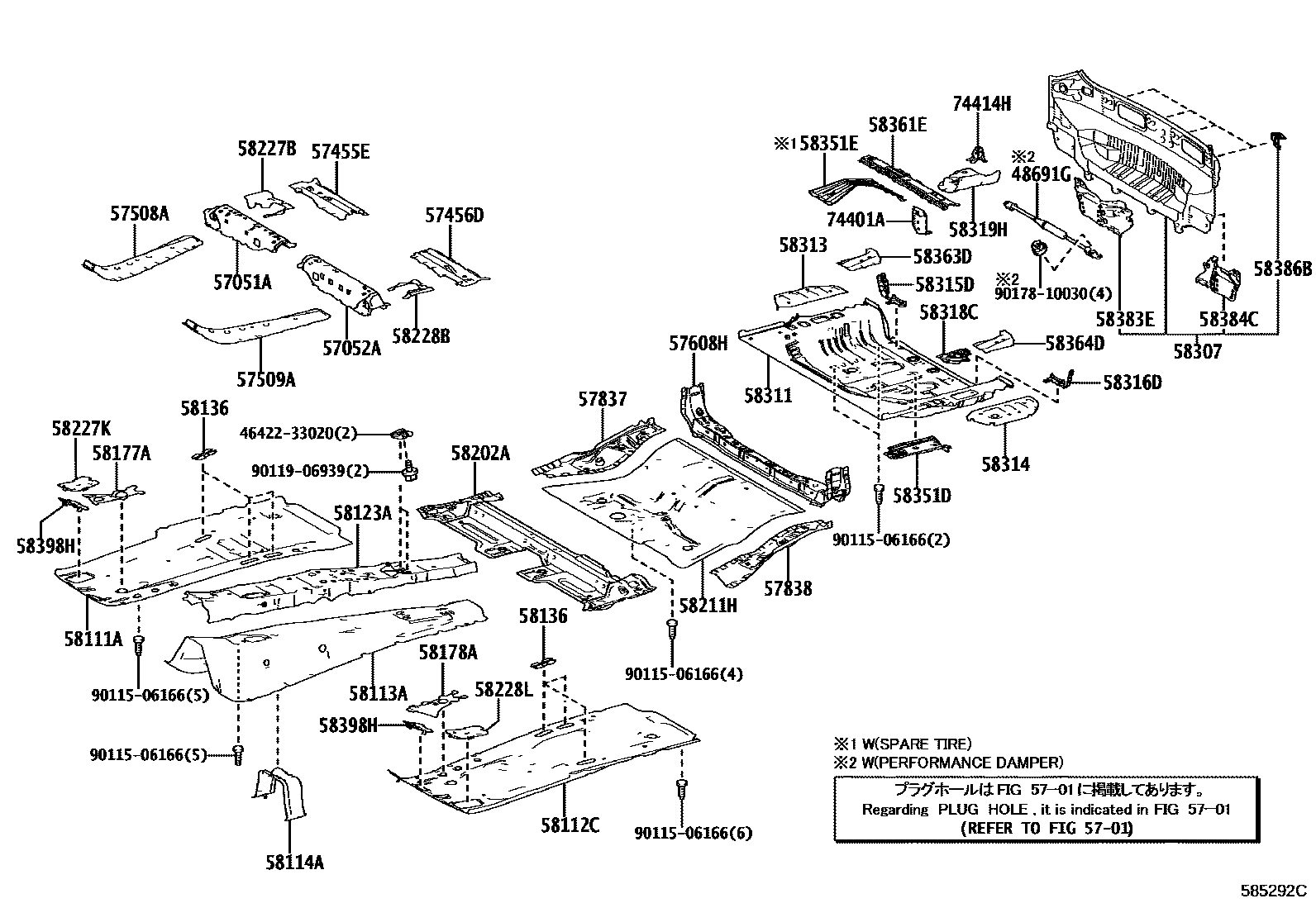

FLOOR PAN & LOWER BACK PANEL
48691GDAMPER, SUSPENSION TOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH
57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58177AEXTENSION, FRONT FLOOR PANEL, RH
58178AEXTENSION, FRONT FLOOR PANEL, LH
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58227KPLATE, FLOOR PANEL SIDE, RH
58228BPLATE, FRONT FLOOR PANEL SIDE, LH
58228LPLATE, FLOOR PANEL SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58318CBRACKET, REAR FLOOR CROSSMEMBER
58319HPLATE, SUB FLOOR
58351DREINFORCEMENT, REAR FLOOR PANEL
58351EBRACKET, SPARE WHEEL CLAMP
58361EREINFORCEMENT, REAR FLOOR PANEL, NO.1
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58398HCOVER, FLOOR UNDER, NO.1
74401ABRACKET SUB-ASSY, BATTERY, FRONT
74414HPANEL, BATTERY CARRIER, REAR
4642233020CAP, PARKING BRAKE CABLE, CASING
main46422-33020
9011506166
9011906939
9017810030
48 parts on this diagram · 3 diagrams in section
