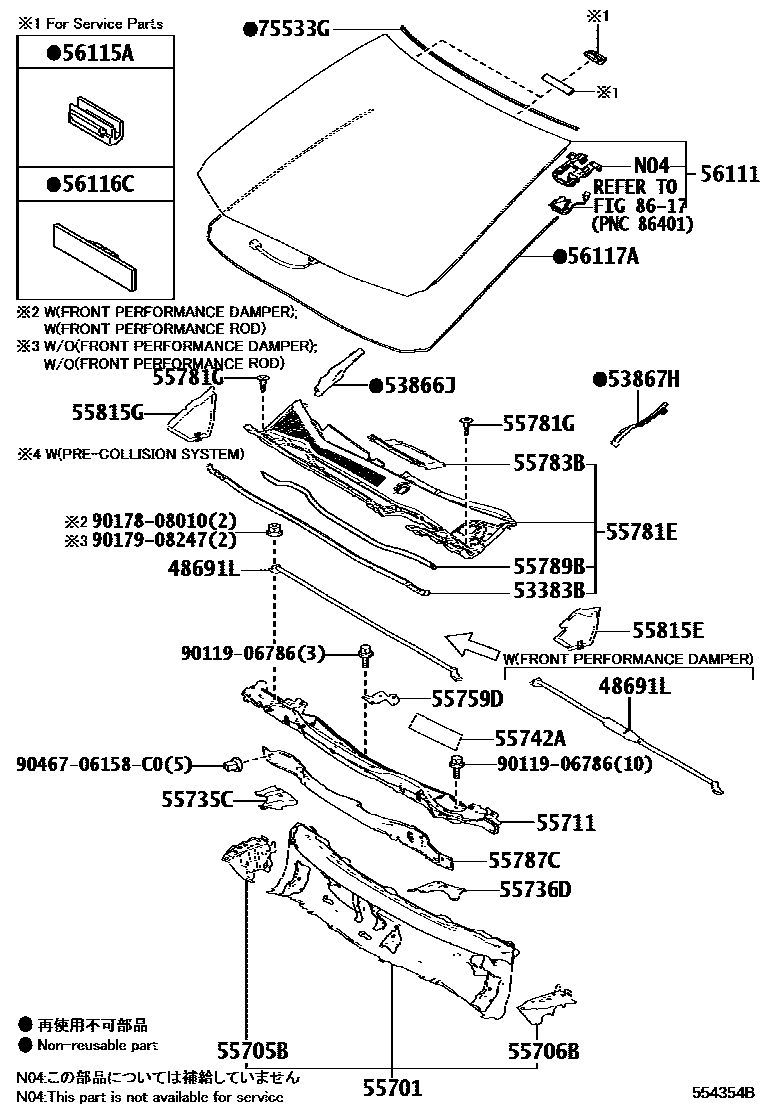

COWL PANEL & WINDSHIELD GLASS
48691LDAMPER OR ROD, FRONT PERFORMANCE
53383BSEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55742ASHEET, COWL TOP INSULATOR
55759DBRACKET, COWL TOP INNER STAY MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
56111GLASS, WINDSHIELD
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2943
*D,L=2943,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2943,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE DEPARTURE ALERT SYSTEM-WITH(BUZZER & STEERING WHEEL ASSIST)
*D,L=2943,COLD AREA SPEC
*D,L=2943,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2943,KOREA SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&SATELLITERADIO-WITH(DAB)&NAVIGATION SYSTEM-WITH(KOREA SPEC)
*D,L=2943,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE DEPARTURE ALERTSYSTEM-WITH(BUZZER & STEERING WHEEL ASSIST)
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
main90119-06786
9017808010
main90178-08010
9017908247
main90179-08247
9046706158C0
main90467-06158C0
29 parts on this diagram · 1 diagram in section
