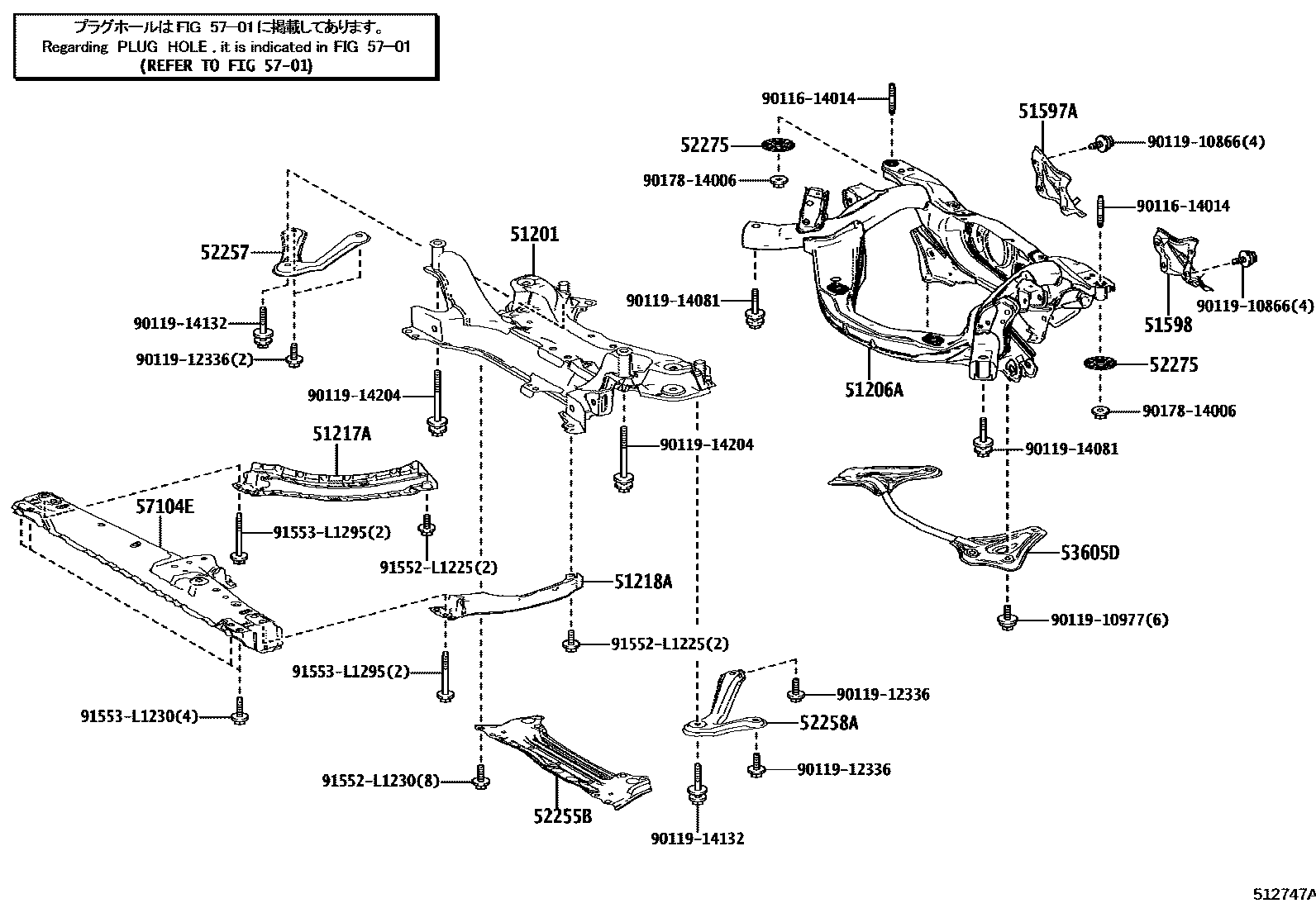

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER, KOREA SPEC 0003 1UNDER COVER 0004 1SUSPENSION CROSSMEMBER 0005 1UNDER COVER,W(FOG & CORNERING

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-78010iAGZ1#201410-201709

main51201-78020iAYZ15201407-201709

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48060iAYZ15201407-201709

main51206-78010iAGZ1#201410-201709

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-42020iAGZ1#201410-201709

main51107-48020iAYZ15201407-201709

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-42020iAGZ1#201410-201709

main51108-48020iAYZ10201407-201709

51597ABRACKET, REAR STABILIZER SUPPORT, RH

main51597-48010iAYZ15201407-201709

51598BRACKET, REAR STABILIZER SUPPORT, LH

main51598-48010iAYZ10201407-201709

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iAGZ1#,AYZ15201407-201709

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42010iAGZ1#201410-201709

main52257-48040iAYZ10201407-201709

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42010iAGZ1#201410-201709

main52258-48050iAYZ10201407-201709

52275CUSHION,REAR SUSPENSION MEMBER, REAR UPPER

main52203-42020iAYZ10201407-201709

53605DBRACE SUB-ASSY, REAR SUSPENSION

main53650-78010iAGZ1#201410-201709

main53650-78020iAYZ15201407-201709

5701

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-42061iAGZ1#,AYZ15201906

FRAME NO.=5,6XXXXXX

main57104-78010iAGZ1#,AYZ15201407-201906

main57104-78010iAGZ1#,AYZ15201906

FRAME NO.=1,2XXXXXX

9011614014

main90116-14014

9011910866

main90119-10866

9011910977

main90119-10977

9011912336

main90119-12336

9011914081

main90119-14081

9011914132

main90119-14132

9011914204

main90119-14204

9017814006

main90178-14006

91552L1225

main91552-L1225

91552L1230

main91552-L1230

91553L1230

main91553-L1230

91553L1295

main91553-L1295

25 parts on this diagram · 5 diagrams in section
