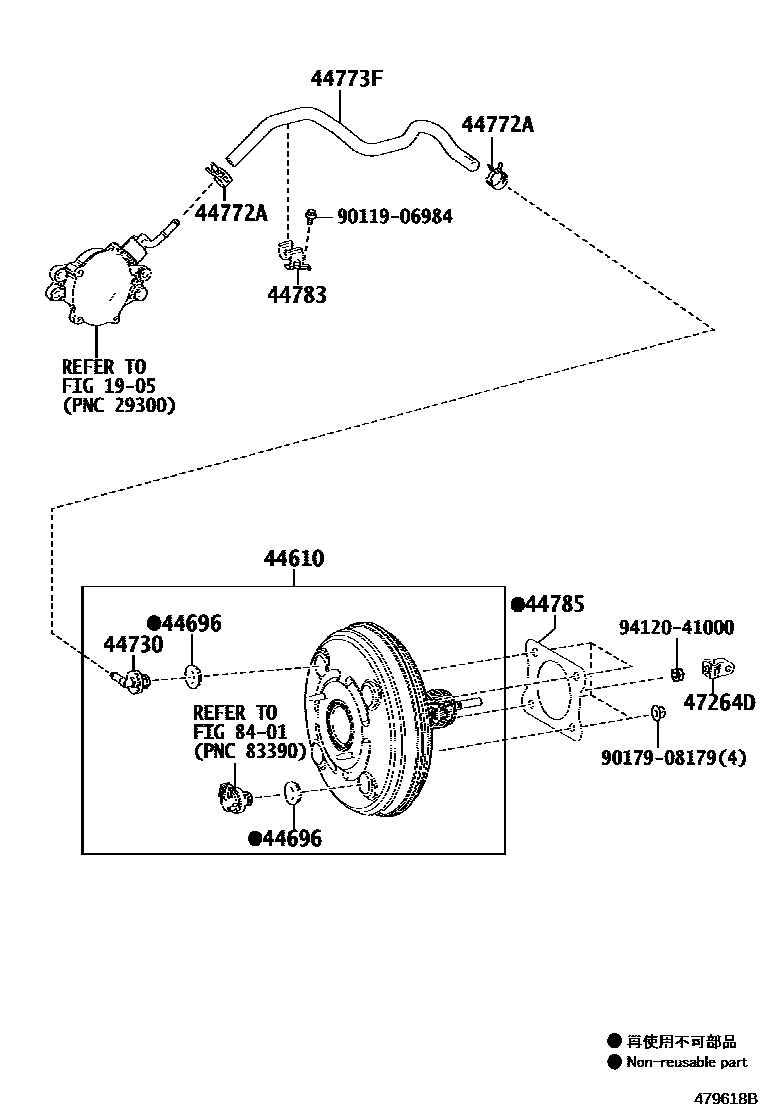

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-78030iAGZ1#201410-201709

44696GROMMET, CHECK VALVE

main90480-24439iAGZ1#201410-201709

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iAGZ1#201410-201709

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iAGZ1#201410-201709

44773FHOSE, UNION TO CHECK VALVE

main44773-78010iAGZ1#201410-201709

44783CLAMP, VACUUM HOSE

main44783-78010iAGZ1#201410-201709

44785GASKET, BRAKE BOOSTER

main44785-12040iAGZ1#201410-201709

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iAGZ1#201410-201709

8401

9011906984

main90119-06984

9017908179

main90179-08179

9412041000

main94120-41000

13 parts on this diagram · 1 diagram in section
