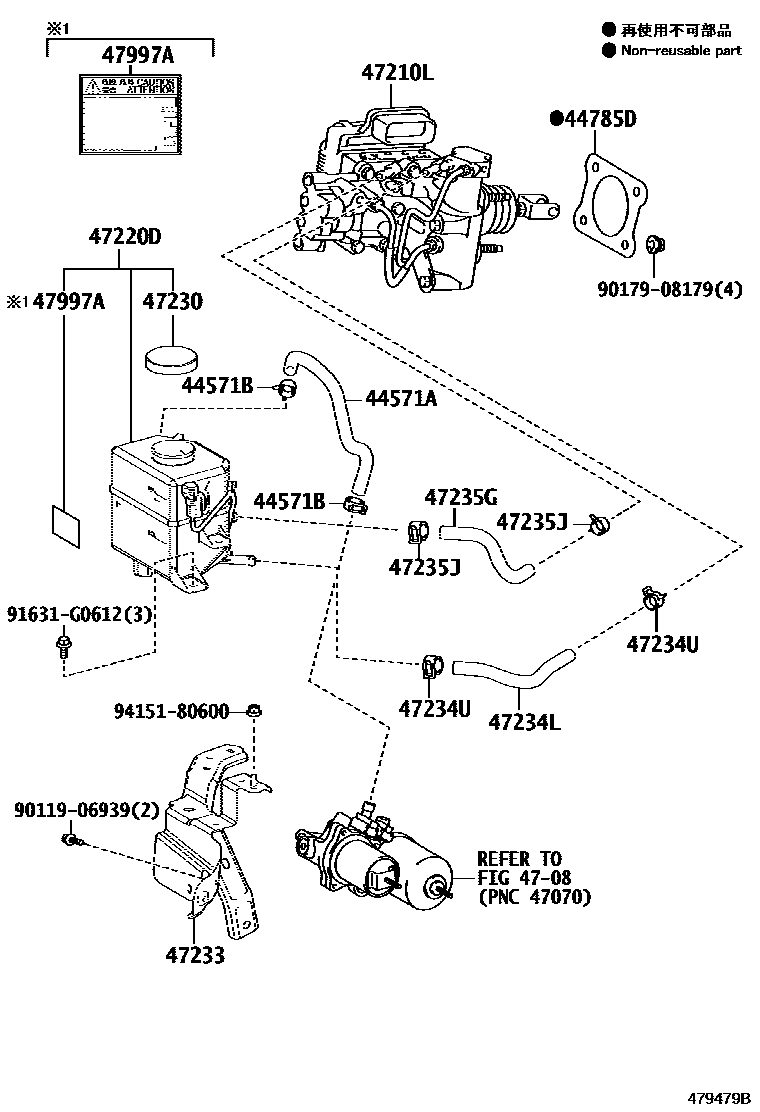

BRAKE MASTER CYLINDER

0001 1 0002 1

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-78010iAYZ15201407-201709

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501iAYZ10201407-201709

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iAYZ10201407-201709

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-78020iAYZ10201410-201608

main47050-78060iAYZ15201407-201709

main47050-78120iAYZ15201709-201905

main47050-78121iAYZ15201905-202007

main47050-78310iAYZ15202007

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-42100iAGZ1#201410-201709

main47220-78010iAYZ10201407-201709

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAGZ1#201410-201709

main47230-47090iAYZ15201612-201709

main47230-58010iAYZ10201407-201612

sub47230-11010

47233BRACKET, RESERVOIR

main47233-42010iAYZ10201407-201709

47234LHOSE, RESERVOIR, NO.1

main47234-42010iAYZ10201407-201709

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iAYZ10201407-201709

47235GHOSE, RESERVOIR, NO.2

main47235-42010iAYZ10201407-201709

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501iAYZ10201407-201709

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAYZ10201407-201709

9011906939

main90119-06939

9017908179

main90179-08179

91631G0612

main91631-G0612

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
