DISC WHEEL & WHEEL CAP

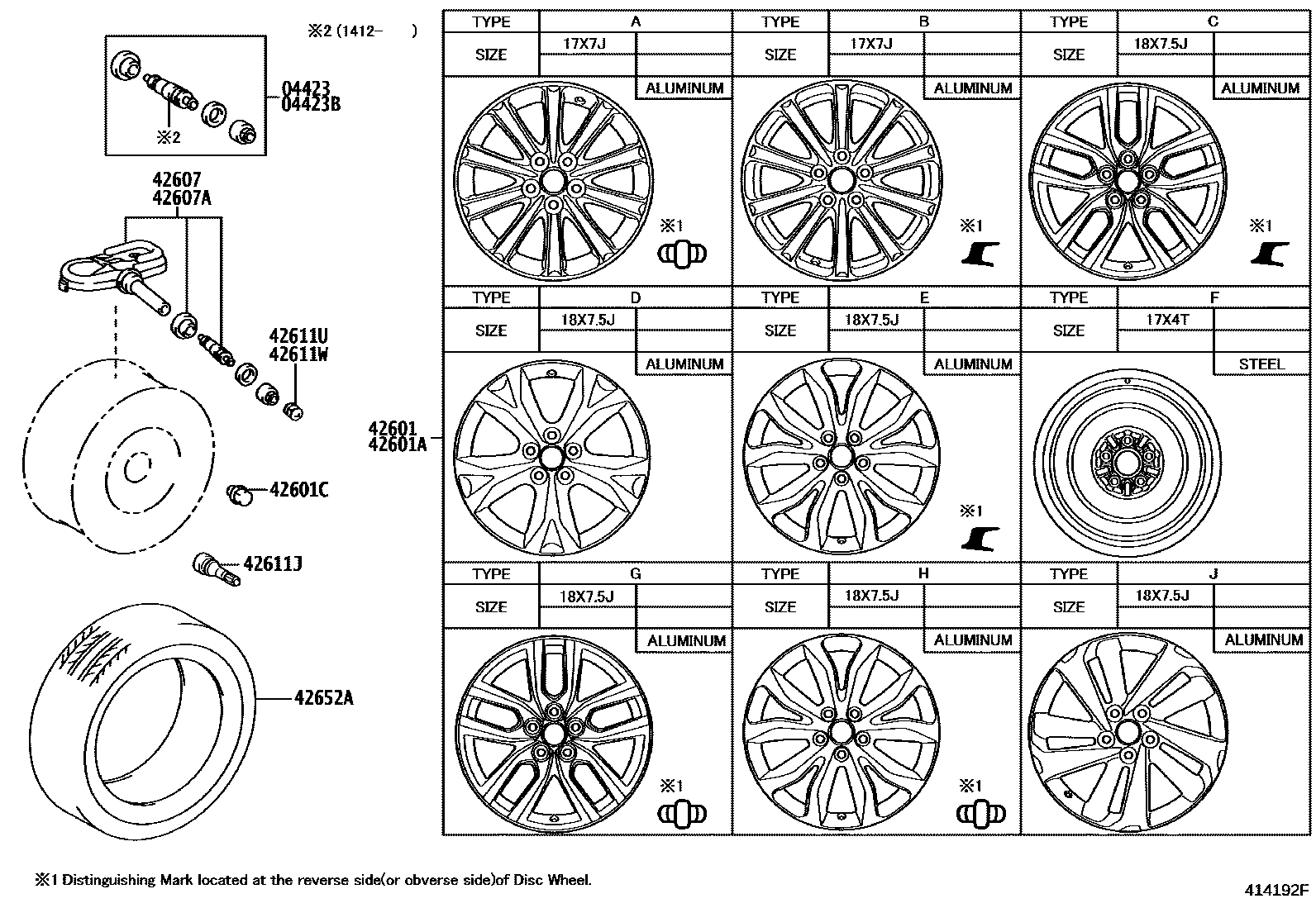

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i201407-201410
KOREA SPEC
sub04423-33060
main04423-33030i201410-201411
sub04423-33060
main04423-33030i201407-201410
KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J
sub04423-33060
main04423-33030i201407-201410
KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J
sub04423-33060
main04423-33060i201412-201709
main04423-33060i201709-201911
CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT)
main04423-33060i201709-201911
TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT)
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i201410-201411
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201410-201411
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J MACHINING&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201410-201411
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE7.0J&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201410-201411
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201410-201411
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33060i201412-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J&SPARE TIRE-GROUND TIRE
main04423-33060i201412-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE7.0J&SPARE TIRE-GROUND TIRE
main04423-33060i201412-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE
main04423-33060i201412-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J&SPARE TIRE-GROUND TIRE
main04423-33060i201412-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J MACHINING&SPARE TIRE-GROUND TIRE
42601WHEEL, DISC
main42611-78070i201410-201709
18X7.5J, #,TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J MACHINING,TYPE E:REFERILLUST.
sub42611-78081
main42611-78070i201410-201509
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALLSEASON TIRE 7.5J MACHINING&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-78081
main42611-78070i201410-201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J MACHINING,TYPE E:REFER ILLUST.
sub42611-78081
main42611-78080i201410-201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J MACHINING,TYPE E:REFER ILLUST.
sub42611-78081
main42611-78110i201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE,7.5J MACHINING,TYPE J:REFER ILLUST.
main42611-78110i201709
18X7.5J, #,TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE,7.5J MACHINING,TYPE J:REFERILLUST.
main42611-78120i201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE,7.5J MACHINING,TYPE J:REFER ILLUST.
main42611-78130i201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-*586,TYPE J:REFER ILLUST.
main42611-78130i201709
18X7.5J, #,TIRE & DISC WHEEL-*586,TYPE J:REFER ILLUST.
main42611-78140i201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-*586,TYPE J:REFER ILLUST.
main42611-78150i201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT),TYPE K:REFER ILLUST.
main42611-78150i201709
18X7.5J, #,TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT),TYPE K:REFERILLUST.
main42611-78160i201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT),TYPE K:REFER ILLUST.
main42611-78230i201410-201411
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALLSEASON TIRE 7.5J&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-78231
main42611-78230i201407-201411
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.
sub42611-78231
main42611-78230i201410-201411
18X7.5J, #,TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.
sub42611-78231
main42611-78231i201411-201509
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALLSEASON TIRE 7.5J&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-78242
main42611-78231i201411-201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.
sub42611-78242
main42611-78231i201411-201709
18X7.5J, #,TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.
sub42611-78242
main42611-78240i201410-201411
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.
sub42611-78241
main42611-78241i201411-201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.
sub42611-78242
main42611-78280i201609-201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J BLACK,TYPED:REFER ILLUST.
main42611-WY360i202007
18X7.5J, #,TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT),TYPE L:REFERILLUST.
main42611-WY360i202007
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT),TYPE L:REFER ILLUST.
main4261A-78030i201709-201802
17X7J, #,TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE A:REFER ILLUST.
sub4261A-78160
main4261A-78030i201410-201509
17X7J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub4261A-78160
main4261A-78030i201407-201709
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE A:REFERILLUST.
sub4261A-78160
main4261A-78030i201410-201709
17X7J, #,TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE A:REFER ILLUST.
sub4261A-78160
main4261A-78030i201709-201802
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE A:REFERILLUST.
sub4261A-78160
main4261A-78031i201802
17X7J, #,TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE A:REFER ILLUST.
main4261A-78031i201802
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE A:REFERILLUST.
main4261A-78040i201709-201908
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE A:REFER ILLUST.
sub4261A-78041
main4261A-78040i201410-201709
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE A:REFERILLUST.
sub4261A-78041
main4261A-78041i201909
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE A:REFER ILLUST.
main4261A-78050i201410-201411
17X7J, #,TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE B:REFER ILLUST.
sub4261A-78051
main4261A-78050i201410-201411
17X7J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-78051
main4261A-78050i201407-201411
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE B:REFERILLUST.
sub4261A-78051
main4261A-78051i201411-201709
17X7J, #,TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE B:REFER ILLUST.
main4261A-78051i201411-201709
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE B:REFERILLUST.
main4261A-78051i201411-201509
17X7J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main4261A-78051i201709
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE B:REFERILLUST.
main4261A-78051i201709
17X7J, #,TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE B:REFER ILLUST.
main4261A-78060i201410-201411
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE B:REFERILLUST.
sub4261A-78061
main4261A-78061i201411-201709
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J,TYPE B:REFERILLUST.
sub4261A-78062
main4261A-78061i201709-201908
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE B:REFER ILLUST.
sub4261A-78062
main4261A-78062i201909
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J,TYPE B:REFER ILLUST.
main4261A-78070i201407-201410
18X7.5J, #,KOREA SPEC,TYPE C:REFER ILLUST.
main4261A-78070i201410-201508
18X7.5J, #,TYPE C:REFER ILLUST.
main4261A-78080i201410-201908
18X7.5J, #,CANADA SPEC,TYPE C:REFER ILLUST.
sub4261A-78081
main4261A-78081i201909
18X7.5J, #,CANADA SPEC,TYPE C:REFER ILLUST.
main4261A-78090i201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE, 7.5J(FOR F-SPORT),TYPE E:REFER ILLUST.
main4261A-78090i201709
18X7.5J, #,TIRE & DISC WHEEL-235/55R18 SUMMER TIRE, 7.5J(FOR F-SPORT),TYPE E:REFERILLUST.
main4261A-78090i201410-201709
18X7.5J, #,TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J,TYPE E:REFER ILLUST.
main4261A-78090i201410-201509
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
main4261A-78090i201410-201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J,TYPE E:REFER ILLUST.
main4261A-78100i201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE, 7.5J(FOR F-SPORT),TYPE E:REFER ILLUST.
main4261A-78100i201410-201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J,TYPE E:REFER ILLUST.
main4261A-78110i201709-201911
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT),TYPE C:REFER ILLUST.
main4261A-78110i201508-201709
18X7.5J, #,TYPE C:REFER ILLUST.
main4261A-78110i201709-201911
18X7.5J, #,TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT),TYPE C:REFERILLUST.
main4261A-78130i201609-201709
18X7.5J, #,CANADA SPEC,TYPE G:REFER ILLUST.
main4261A-78140i201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE, 7.5J(FOR F-SPORT),TYPE H:REFER ILLUST.
main4261A-78140i201709
18X7.5J, #,TIRE & DISC WHEEL-235/55R18 SUMMER TIRE, 7.5J(FOR F-SPORT),TYPE H:REFERILLUST.
main4261A-78140i201609-201709
18X7.5J, #,TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J,TYPE H:REFER ILLUST.
main4261A-78140i201609-201709
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J,TYPE H:REFER ILLUST.
main4261A-78150i201609-201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J,TYPE H:REFER ILLUST.
main4261A-78150i201709
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE, 7.5J(FOR F-SPORT),TYPE H:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-42470i201407-201909
17X4T,TYPE F:REFER ILLUST.
sub42611-42471
main42611-42470i201407-201709
17X4T,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-42471
main42611-42471i201909
17X4T,TYPE F:REFER ILLUST.
main42611-78070i201410-201509
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALLSEASON TIRE 7.5J MACHINING&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-78081
main42611-78230i201410-201411
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALLSEASON TIRE 7.5J&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-78231
main42611-78231i201411-201509
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALLSEASON TIRE 7.5J&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-78242
main4261A-78030i201410-201509
17X7J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub4261A-78160
main4261A-78050i201410-201411
17X7J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-78051
main4261A-78051i201411-201509
17X7J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main4261A-78070i201410-201508
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main4261A-78090i201410-201509
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
main4261A-78110i201508-201509
18X7.5J, #,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01033i201407-201709
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-30060i201410-201709
main42607-30060i201709-201911
TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT)
main42607-30060i201709-201911
CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT)
main42607-30071i201709
KOREA SPEC&TIRE & DISC WHEEL-*586
main42607-30071i201407-201709
KOREA SPEC
main42607-30071i201407-201709
KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J
main42607-30071i201407-201709
KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J
main42607-30071i201410-201709
KOREA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J
main42607-30071i201410-201709
KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J MACHINING
main42607-30071i201709
KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE, 7.0J
main42607-30071i201709
KOREA SPEC&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE, 7.5J(FOR F-SPORT)
main42607-30071i201709
KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE,7.5J MACHINING
main42607-30071i201709
KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT)
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-30060i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE7.0J&SPARE TIRE-GROUND TIRE
main42607-30060i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J&SPARE TIRE-GROUND TIRE
main42607-30060i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE
main42607-30060i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J&SPARE TIRE-GROUND TIRE
main42607-30060i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J MACHINING&SPARE TIRE-GROUND TIRE
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201407-201709
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE
main90942-05009i201709
42611UCAP, TIRE VALVE
main90942-05042i201407-201410
KOREA SPEC
main90942-05042i201407-201410
KOREA SPEC&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE 7.0J
main90942-05042i201407-201410
KOREA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE 7.5J
main90942-05042i201410-201709
main90942-05042i201709-201911
CANADA SPEC&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT)
main90942-05042i201709-201911
TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE, 7.5J(F-SPORT)
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05042i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/65R17 ALL SEASON TIRE7.0J&SPARE TIRE-GROUND TIRE
main90942-05042i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J&SPARE TIRE-GROUND TIRE
main90942-05042i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE
main90942-05042i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-235/55R18 SUMMER TIRE 7.5J&SPARE TIRE-GROUND TIRE
main90942-05042i201410-201509
USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&TIRE & DISC WHEEL-225/60R18 ALL SEASON TIRE7.5J MACHINING&SPARE TIRE-GROUND TIRE
42652ATIRE (FOR SPARE)
main4265A-42010i201407-201605
T165/80D17,*Y/H
sub4265A-42011
main4265A-42010i201407-201605
T165/80D17,*Y/H,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE
sub4265A-42011
main4265A-42011i201606-201707
T165/80D17,*Y/H
sub4265A-42012
main4265A-42011i201606-201707
T165/80D17,*Y/H,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE
sub4265A-42012
main4265A-42012i201708-201709
T165/80D17,*Y/H
main4265A-42012i201708-201709
T165/80D17,*Y/H,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SPARE TIRE-GROUND TIRE

11 parts on this diagram · 3 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
