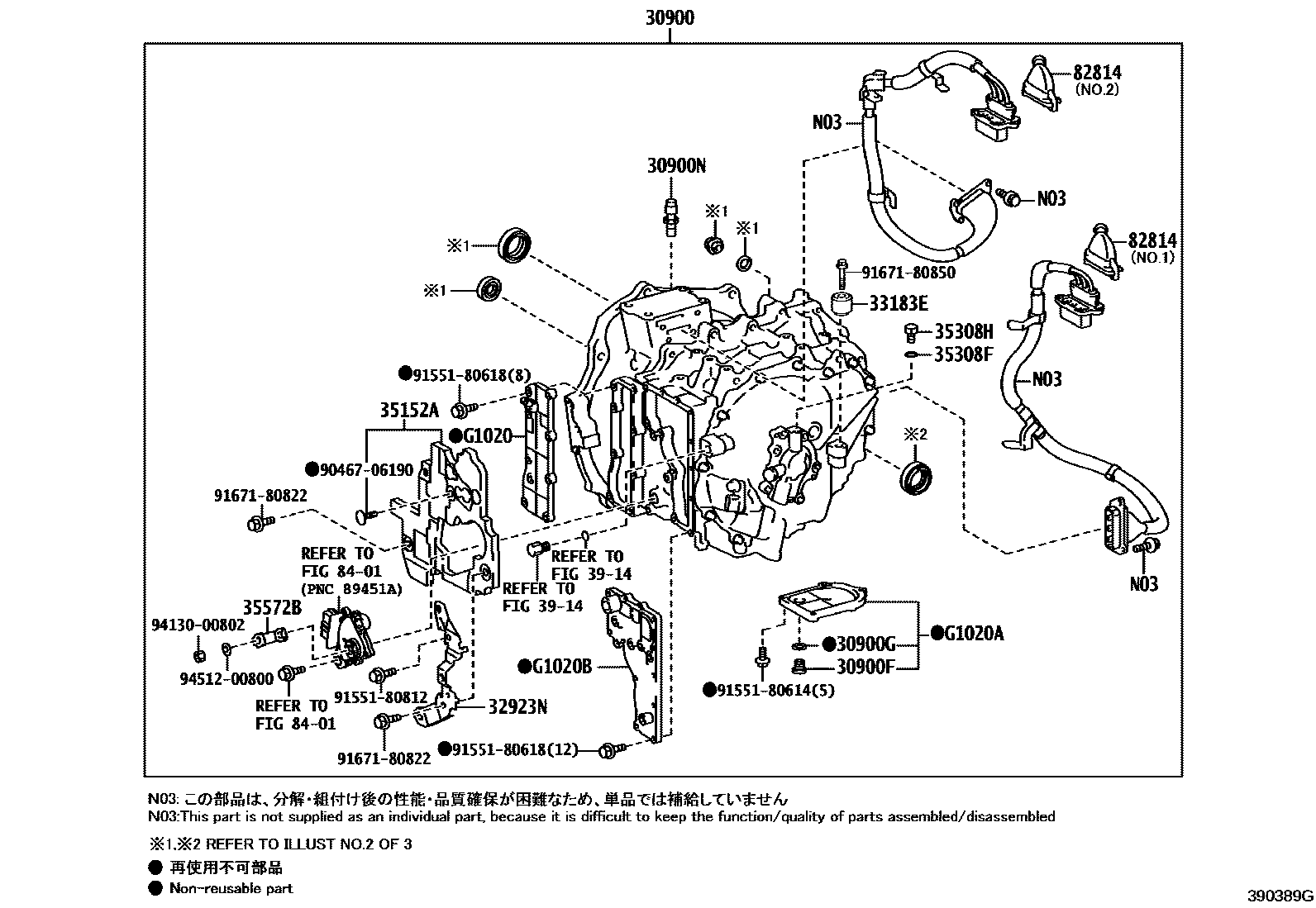

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1HYBRID VEHICLE TRANSAXLE ASSY0003 1RR TRACTION W/TRANSAXLE MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-48120iAYZ15201407-201502

sub30900-48121

main30900-48121iAYZ15201503-201709

main30900-78010iAYZ10201410-201502

sub30900-78011

main30900-78011iAYZ10201503-201608

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-18016iAYZ15201407-201709

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAYZ15201407-201709

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iAYZ10201407-201709

32923NCLAMP, OIL COOLER TUBE

main32923-48040iAYZ10201407-201709

33183EDAMPER, DYNAMIC

main33183-48010iAYZ1#201407-201709

35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2

main35151-33100iAYZ10201407-201709

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iAYZ10201407-201709

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iAYZ10201407-201709

35572BLEVER, TRANSMISSION, OUTER

main35572-33030iAYZ10201407-201709

3914

82814BOOT, WIRE HARNESS

main82814-42010iAYZ15201804

NO.2:REFER ILLUST.

main82814-42020iAYZ15201804

NO.1:REFER ILLUST.

main82814-48020iAYZ10201407-201804

NO.1:REFER ILLUST.

sub82814-42020

main82814-48030iAYZ15201407-201804

NO.2:REFER ILLUST.

sub82814-42010

8401

G1020COVER ASSY, MOTOR WATER JACKET, NO.1

mainG102033010iAYZ10201407-201709

G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2

mainG102048030iAYZ10201407-201709

G1020BCOVER ASSY, MOTOR WATER JACKET, NO.3

mainG102048040iAYZ1#201407-201709

9046706190

main90467-06190

9155180614

main91551-80614

9155180618

main91551-80618

9155180812

main91551-80812

9167180822

main91671-80822

9167180850

main91671-80850

9413000802

main94130-00802

9451200800

main94512-00800

24 parts on this diagram · 3 diagrams in section
