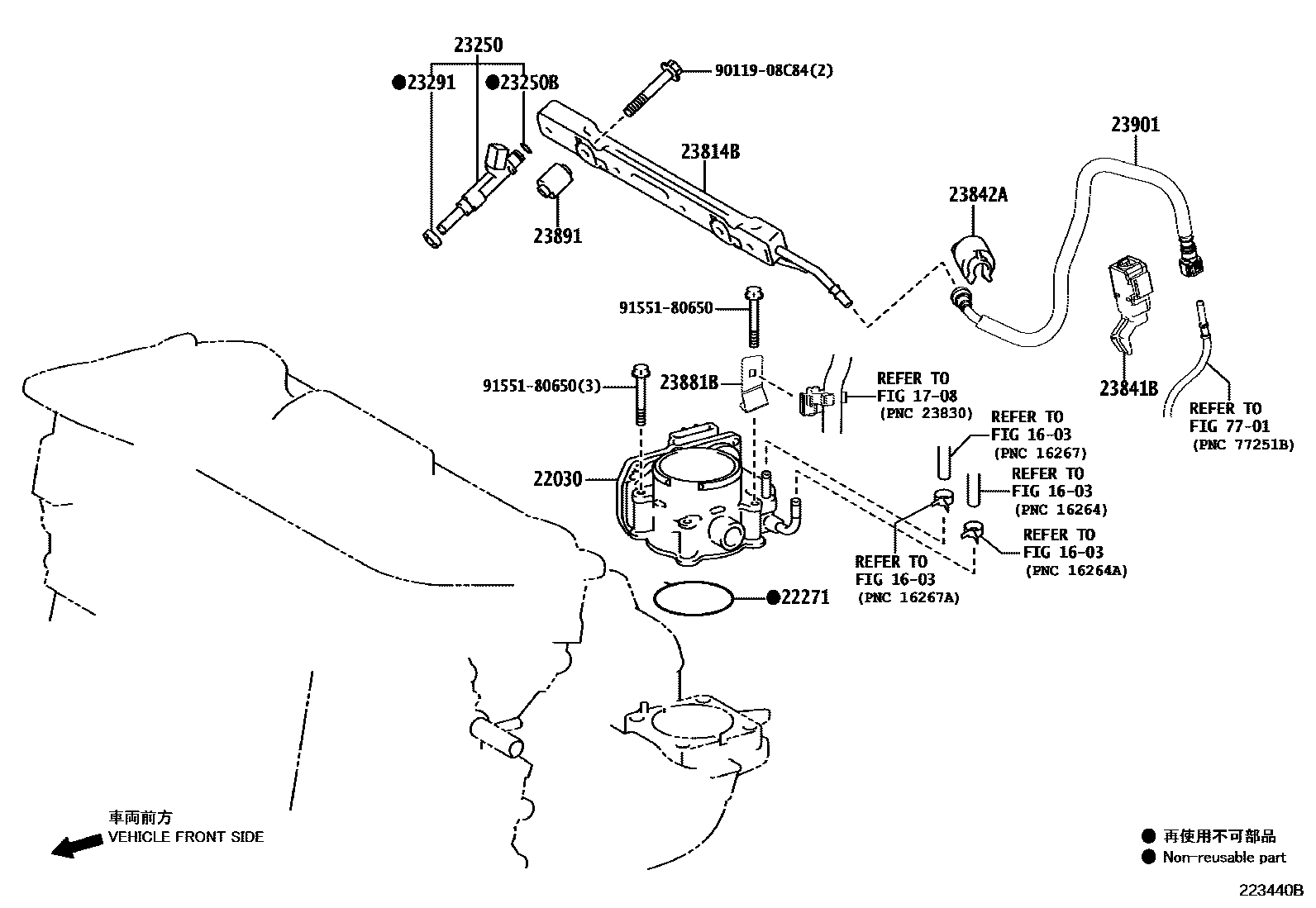

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-36020i2ARFXE..AYZ10¥74,900201407-201709

main22030-36040i8ARFTS..AGZ1#¥58,000201410-201709

22271GASKET, THROTTLE BODY

main22271-36020i2ARFXE..AYZ10¥0201407-201709

main22271-36040i8ARFTS..AGZ1#¥340201410-201709

23250INJECTOR ASSY, FUEL

main23209-39175i2ARFXE..AYZ10¥12,600201407-201709

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ARFXE,8ARFTS..AGZ1#,AYZ15¥140201908

(J)

main90301-07037i2ARFXE..AYZ10¥140201407-201908

main90301-C0072i2ARFXE,8ARFTS..AGZ1#,AYZ15201908

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i2ARFXE,8ARFTS..AGZ1#,AYZ1#¥310201407-201709

23814BPIPE, FUEL DELIVERY

main23800-36030i8ARFTS..AGZ1#¥25,400201410-201709

sub23800-36040¥15,600

main23814-36050i2ARFXE..AYZ10¥8,700201407-201709

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37080i2ARFXE..AYZ1#¥500201407-201601

sub23841-37081¥310

main23841-37081i2ARFXE..AYZ10¥310201602-201709

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ARFXE..AYZ10¥500201407-201709

main23842-38010i8ARFTS..AGZ1#¥640201410-201709

23881BBRACKET, FUEL HOSE

main23881-36040i2ARFXE..AYZ10¥220201407-201709

main23881-36080i8ARFTS..AGZ1#¥220201410-201709

23891SPACER, FUEL DELIVERY

main23891-36010i2ARFXE..AYZ15¥300201407-201709

main23891-36020i8ARFTS..AGZ1#¥300201410-201502

main23891-36030i8ARFTS..AGZ1#¥350201503-201709

23901TUBE SUB-ASSY, FUEL

main23901-36140i2ARFXE..AYZ10201407-201709

7701

9011908C84

main90119-08C84¥110

9155180650

main91551-80650¥80

16 parts on this diagram · 3 diagrams in section
