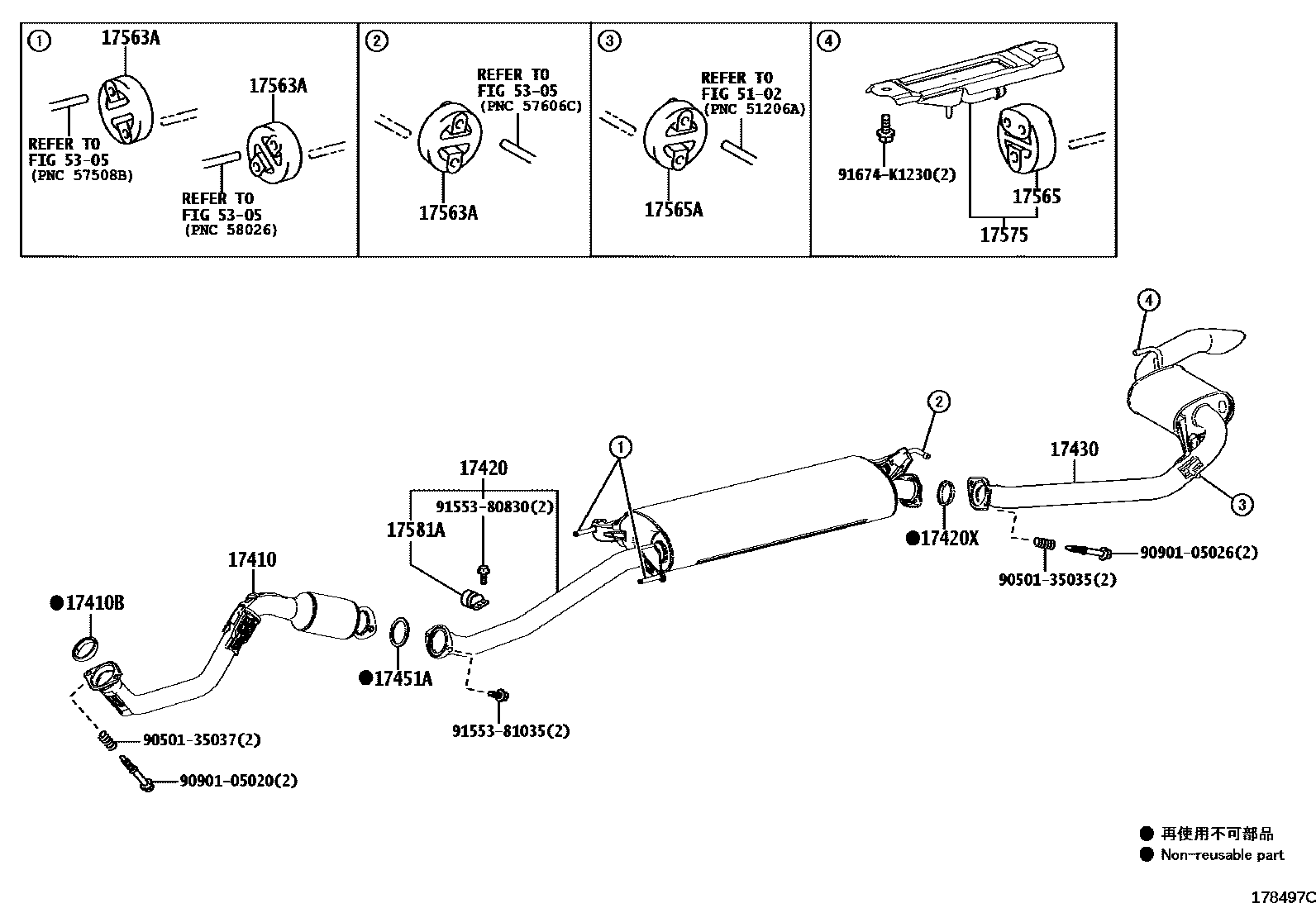

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-36200i2ARFXE..AYZ10201407-201709

17410BGASKET, EXHAUST PIPE

main17451-28070i2ARFXE..AYZ10201407-201709

sub17451-28040

17420PIPE ASSY, EXHAUST, CENTER

main17420-36220i2ARFXE..AYZ1#201407-201709

main17420-36230i8ARFTS..AGZ1#201410-201510

sub17420-36231

main17420-36231i8ARFTS..AGZ1#201511-201702

MARK 13610:SEE ILL.

main17420-36330i8ARFTS..AGZ1#201709

main17420-36330i8ARFTS..AGZ1#201702-201709

MARK 13630:SEE ILL.

17420XGASKET, EXHAUST PIPE, CENTER

main17451-28022i2ARFXE..AYZ15201407-201709

main17451-31012i8ARFTS..AGZ1#201410-201709

17430PIPE ASSY, EXHAUST, TAIL

main17430-36340i2ARFXE..AYZ15201407-201709

main17430-36350i8ARFTS..AGZ1#201410-201612

sub17430-36560

main17430-36560i8ARFTS..AGZ1#201612-201702

MARK 33624:SEE ILL.

main17430-36570i8ARFTS..AGZ1#201709-201907

sub17430-36571

main17430-36571i8ARFTS..AGZ1#201908

main17430-36590i8ARFTS..AGZ1#201702-201709

MARK 33627:SEE ILL.

17451GASKET, EXHAUST PIPE

main90917-06072i8ARFTS..AGZ1#201410-201709

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06056i8ARFTS..AGZ1#201410-201709

main90917-06072i2ARFXE..AYZ15201407-201709

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-22040i2ARFXE..AYZ10201407-201709

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-31050i8ARFTS..AGZ1#201410-201709

main17565-74320i2ARFXE..AYZ10201407-201709

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-31040i2ARFXE,8ARFTS..AGZ1#,AYZ15201407-201709

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-36030i2ARFXE..AYZ15201407-201709

main17575-36040i8ARFTS..AGZ1#201410-201709

17581ADAMPER, EXHAUST PIPE

main17581-17020i2ARFXE..AYZ1#201407-201709

main17581-54060i8ARFTS..AGZ1#201410-201709

5102

5305

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155380830

main91553-80830

9155381035

main91553-81035

91674K1230

main91674-K1230

21 parts on this diagram · 2 diagrams in section
